Instructions, use and maintenance manual Pag. 29/49
SAU 160-200
14.5.1. Replacement and/or tension of chain and belts
Replacement and/or tension of the spiral belts
Before any operation, disconnect the machine from the power
mains.

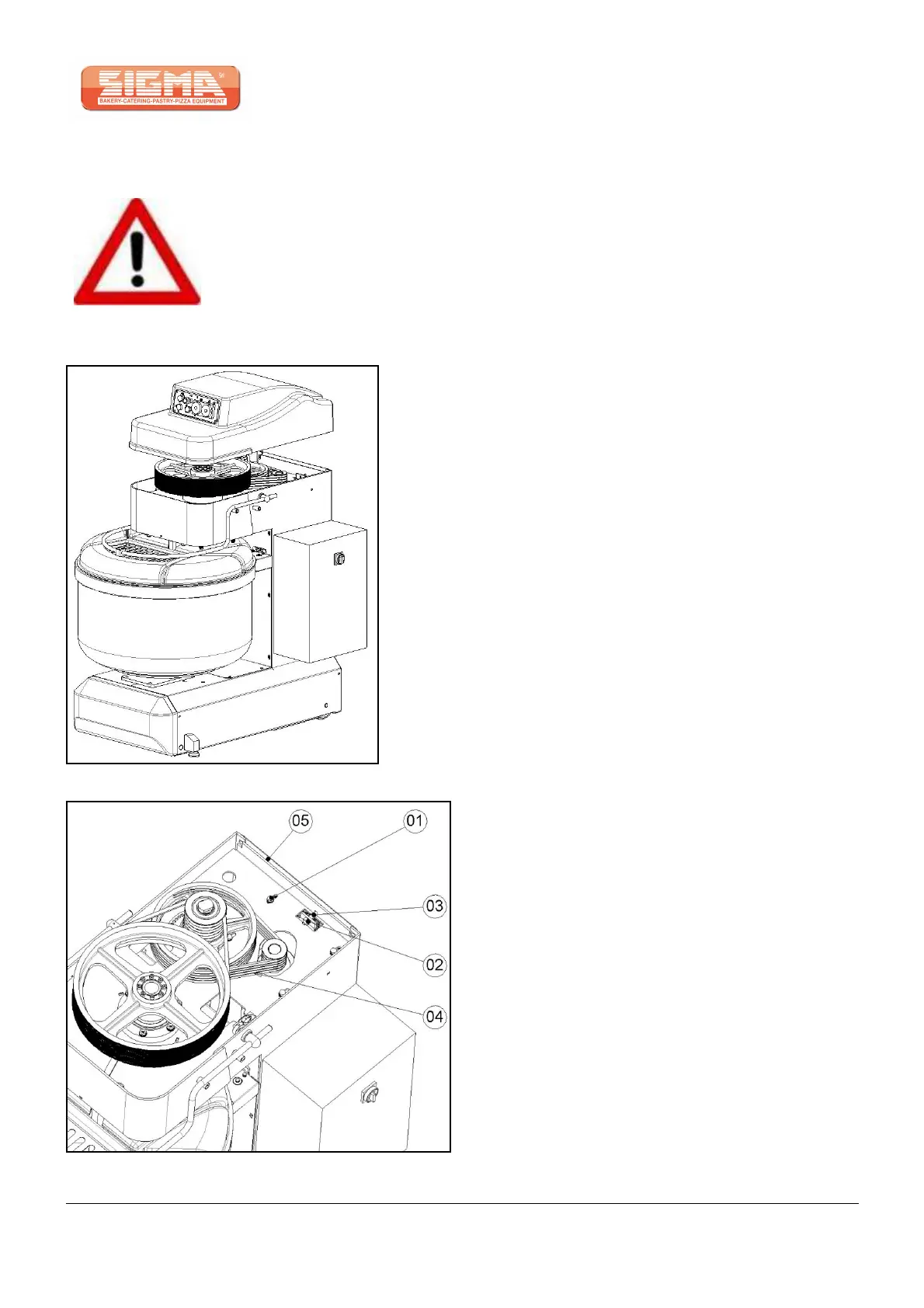

Remove the fixing screws of the upper casing and remove it from
its position. The casing can be placed on a side shelf taking care of
the electrical cables of the control panel.
Loosen the 4 screws (01) from the motor seat, loosen
the nut (02) and act on the screw (03) pushing the motor
seat forward, thus loosening the belt tension (04).
Should it be difficult to act on the screw (03), remove the
rear casing (05).
FOR ANY MAINTENANCE AND CLEANING OPERATIONS, THE MACHINE MUST BE
OFF AND DISCONNECTED FROM THE ELECTRIC LINE.
Before performing any of the following operations, wear PPE such as: shoes with
reinforced tip and non-slip sole, gloves.
