Instructions, use and maintenance manual Pag. 30/49
SAU 160-200

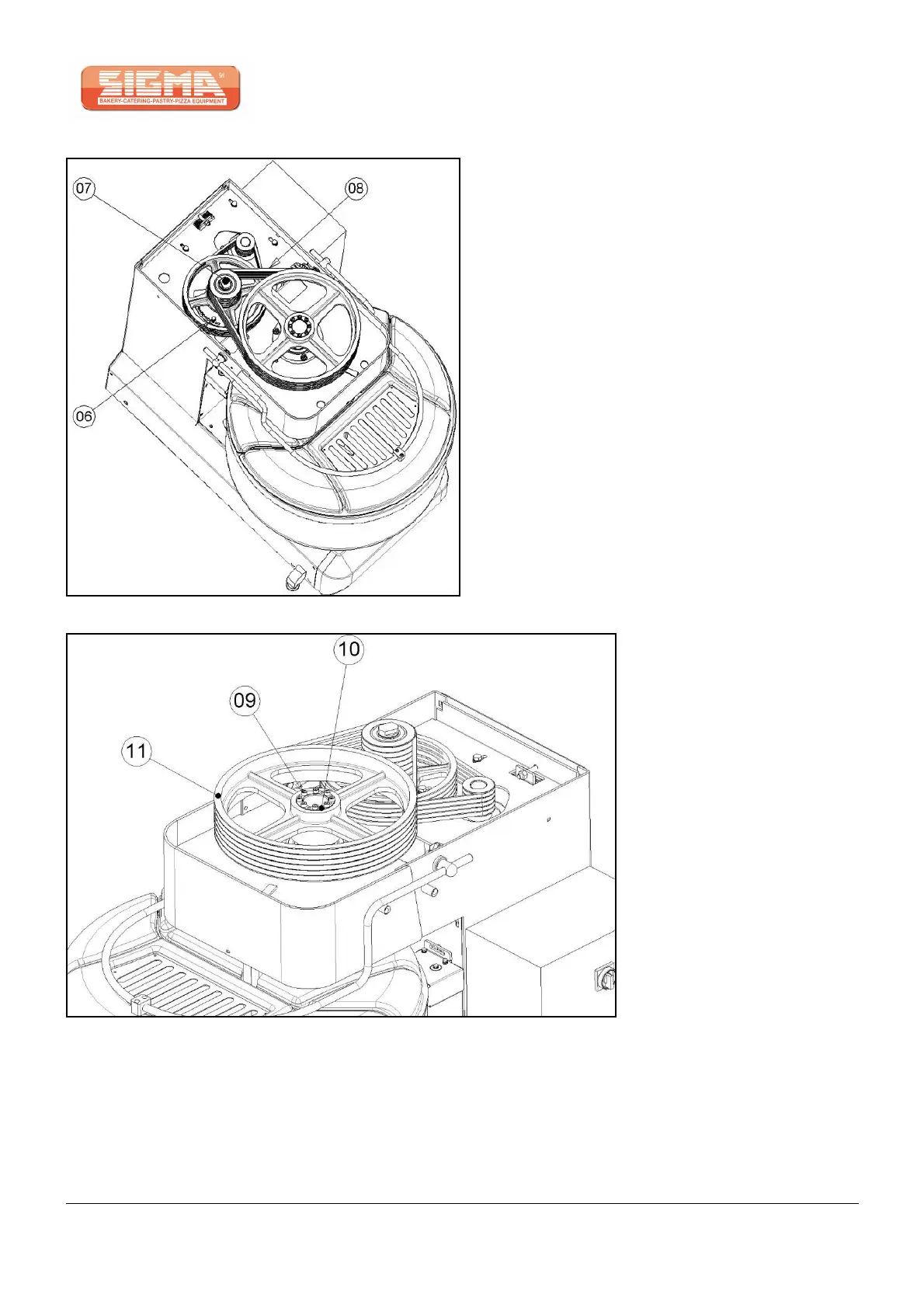

Loosen and remove the screw (06).
Using a wrench, rotate the eccentric shaft (07) thus
loosening the belt tension (08).
Loosen all screws (09) from the
shrink disc (10), 4 screws must
remain inserted in the threaded
holes to help release the shrink
disc from the pulley (11).
