22
OPTIONAL STRAP SNUBBER
PARTS LIST, CONTINUED
EXTERNAL ASSEMBLY
KEY
QTY. PART NO. DESCRIPTION
184 2 014698 Gear cover
185 2 053049 Gasket gear cover
186 1 053061 Poly-V-Belt, 6 groove,
"J" section, 24.0" P.L.
187 1 014793 Motor plate
188 2 071836 Hex jam nut, 5/16-18
189 2 028976 Square HSS, 5/16-18 x 1
3/4
190 1 014725 Poly-V-Belt, 6 groove,
"J" section, 49.0" P.L.
191 3 001250 Flat washer, 5/16
192 7 002188 Lockwasher, 5/16
193 7 006366 HHCS, 5/16-18 x 3/4
194 1 431992 MCD Motor Assy,
208/230/460V,
3 phase, 50/60 Hz.,
1 059316 MCD Motor,
575V, 60Hz (Optional)
195 21 009189 Locknut, 3/8-16
196 2 007453 Flat washer, 3/8
197 2 014794 Pivot arm
198 2 008845 SHCS, 5/16-18 x 7/8
199 1 014779 Motor bracket
200 1 014796 HHCS, 3/8-16 x 5
201 1 014945 Frame, short
1 014935 Frame, standard
202 2 014723 Motor sheave, 60 Hz
2 056072 Motor sheave, 50 Hz
203 2 014788 Idler wheel
204 2 010019 Roll pin, 1/4 x 1 1/8
205 2 014791 Truarc, #5100-50
206 2 020142 Bearing, Fafnir S5PP
207 1 053062 Poly-V-Belt, 6 groove,
"J" section, 26.0" P.L.
208 2 014790 Idler link
209 2 014795 Idler spring
210 2 006787 Roll pin, 3/16 x 1
211 2 014792 Idler pivot
212 4 009069 Hex nut, 3/8-16
213 4 006243 Lockwasher, 3/8
214 2 008738 SHCS, #10-24 x 1 1/4
215 1 014737 Switch cam
216 2 009092 HHCS, 3/8-16 x 1 1/2
217 4 014462 Spacer, Short only
218 1 431865 1LS Switch assy
219 1 014886 Wrench assy, packaged
loose
220 2 014896 HHCS, 3/8-16 x 4
225 1 014936 Rear roller
226 1 014937 Front roller
KEY
QTY. PART NO DESCRIPTION
227 2 023708 Socket head shoulder
screw, 3/8 x 1
228 2 072132 Locknut (thin) 5/16-18
233 1 075615 Washer
234 1 016363 Groove pin
235 1 016361 Spring
237 1 071943 Jiffy clamp
256 1 431695 Foot switch
257 1 431993 2LS Switch assy
258 1 431999 Spring Kit for 2LS

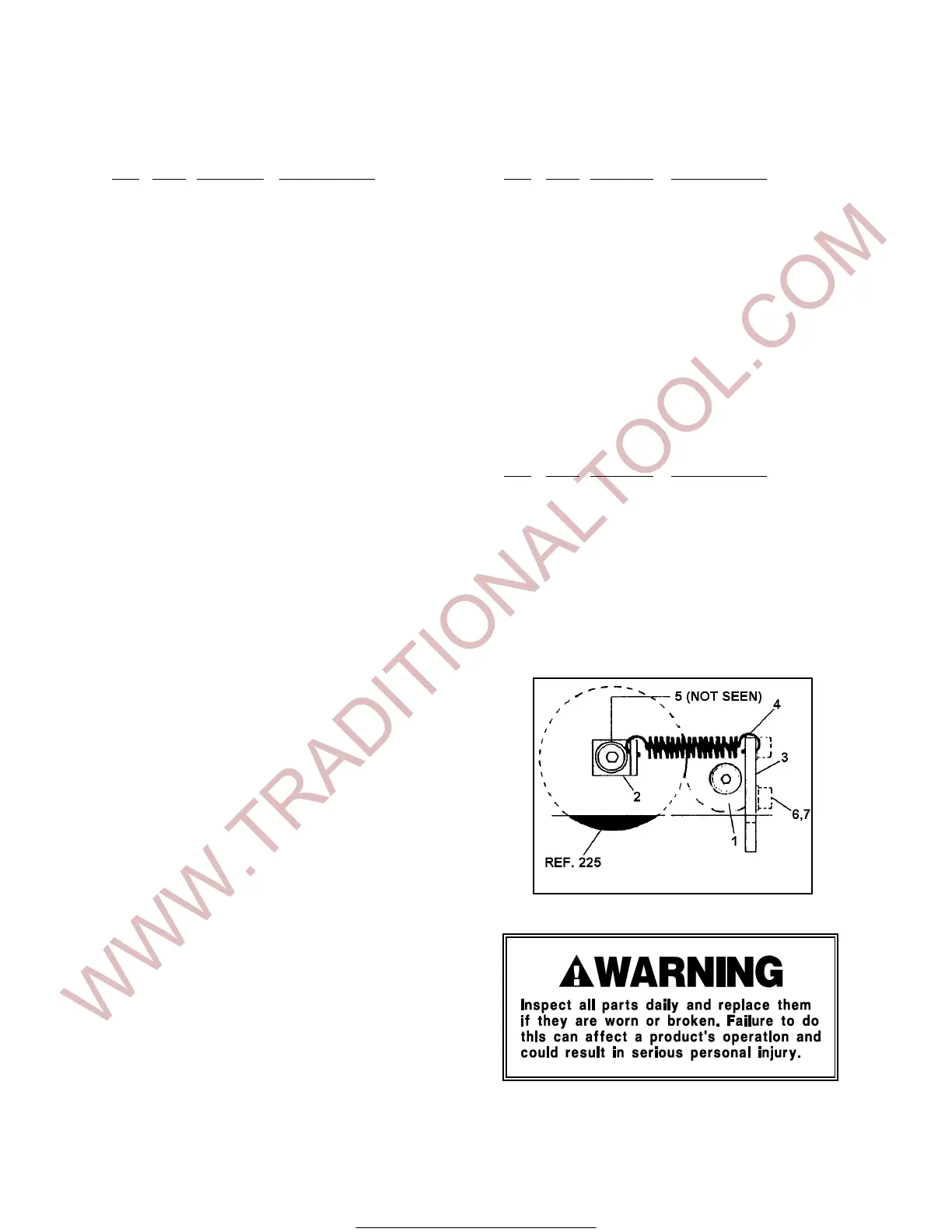

OPTIONAL STRAP SNUBBER FOR USE WITH
TENAX STRAP ONLY. Kit No. 185298
KEY
QTY. PART NO DESCRIPTION
1 1 185311 Snubber
2 1 185312 Spring tab
3 1 185313 Lock lever
4 1 014804 Spring, Lee
#LE-031D-2-MW
5 1 013862 Oilite bushing
6 1 009397 SHCS, #10-24
7 2 004238 Lock washer, #10
