5
SPECIFICATIONS
!
MAX. PACKAGING SPEED:
575-1300 straps per hour,
depending on package size
!
STRAP FEED SPEED:
5.3 feet per second
!
DISPENSER:
Model DF1-12D
!
POWER:
208/230/460V standard.
575V optional for most models.
NOTE: 208V Requires a special
electrical transformer.

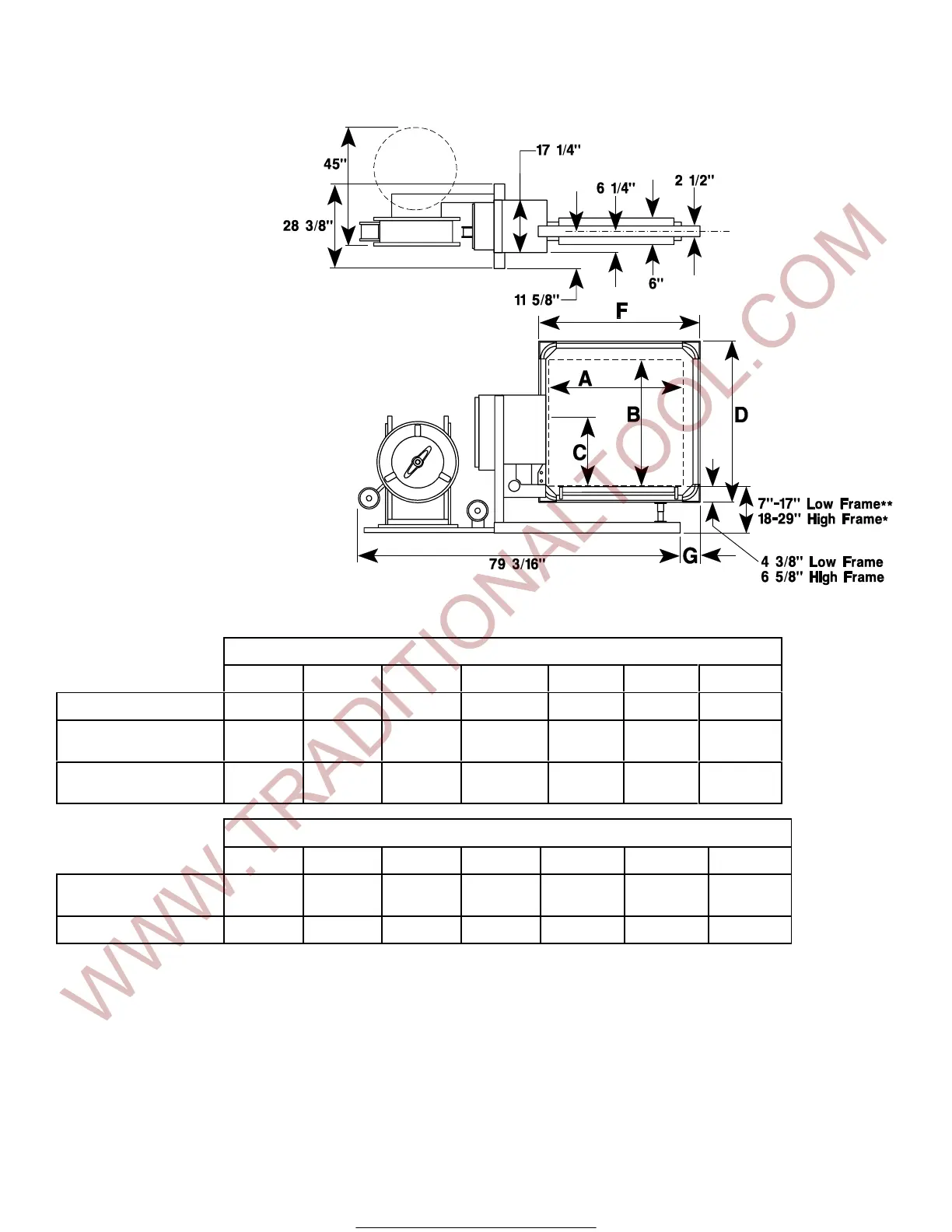

NOTE: Chute sizes are any combination of Width (A) and Height (B) shown below.
PACKAGE WIDTH (A)
18" 24" 30" 36" 48" 60" 72"
CHUTE LENGTH (F) 26 9/16" 32 9/16" 38 9/16" 44 9/16" 56 9/16" 68 9/16" 80 9/16"
CHUTE OVER-HANG,
LOW FRAME (G)
NONE 2 15/16" 8 15/16" 14 15/16" NONE 10 3/16" 2 3/16"
CHUTE OVER-HANG,
HIGH FRAME (G)
NONE 3" 9" 15" NONE 10 1/4" 2 1/4"
PACKAGE HEIGHT (B)
18" HF* 24" HF* 30" LF** 36" LF** 48" LF** 60" LF** 72" LF**
MINIMUM PACKAGE
HEIGHT (C)
4" 4" 17 3/4" † 17 3/4" † 17 3/4" † 17 3/4" † 17 3/4" †
CHUTE HEIGHT (D) 30 5/16" 36 5/16" 39 9/16" 45 9/16" 57 9/16" 69 9/16" 81 9/16"
† On low frame machines a minimum package height of 7" may be obtained by raising the conveyor above the machine rollers. Customer conveyor
height should be no more than 10-5/8" above the machine rollers. Maximum package height is reduced by the amount the conveyor is raised.
* Adjustable from 21" to 29" in 1" increments on 18" & 24" chute height machines (Cut 3" off from inner leg for a 18" conveyor height).
** Conveyors heights of 7" to 17" are achieved as follows: No legs required at chute for 7" height; Cut 6" off from outer leg (P-042747) and cut off 2" from
inner leg (P-042750) for a 9" height. Cut 6" off from outer leg and cut off 1" from inner leg for a 10" height. Cut 6" off from outer leg only for a 11"
height. Cut 3" off from outer leg for 12", 13" and 14" heights. No leg alterations are needed for 15", 16" and 17" heights.
For Parts & Service 1-877-862-6699
