Signode MCD-310 - Parts List

48

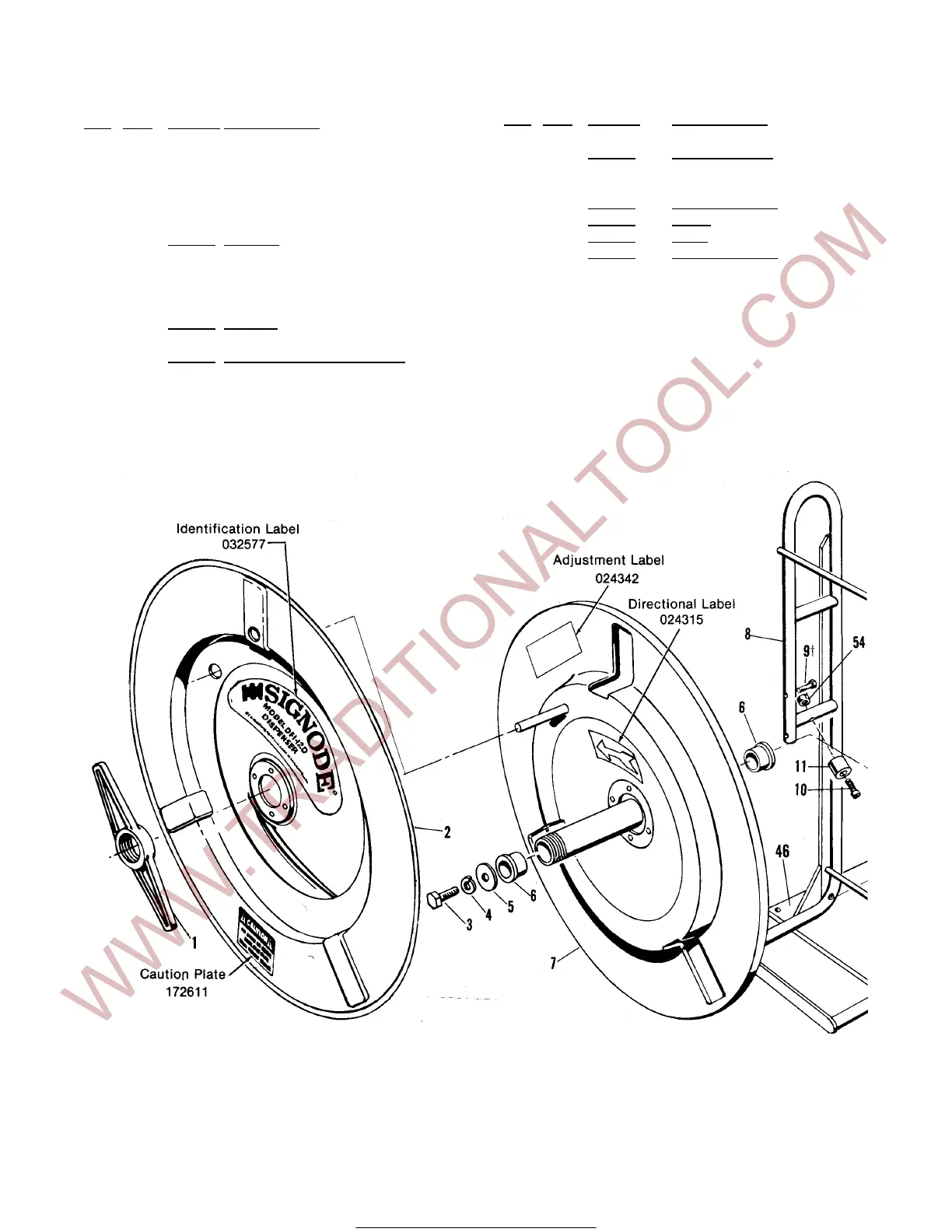

PARTS LIST, DF1-12D DISPENSER
KEY QTY PART # DESCRIPTION
1 1 067222 Nut
2 1 024321 Reel disc assy.
3 2 009094 HHCS, 1/2-13 x 1
4 2 002434 Spring lock washer, 1/2
5 2 024382 Washer, 7/16 std.
6 4 024352
Bushing
7 1 024380 Back disc assy.
8 1 024327 Pipe stand assy.
9 4 024357 HHCS, 3/8-16 x 1 3/4
10 2 009042 SHCS, 1/4-20 x 1
11 2 024301
Bumper
12 1 024325 Main plate assy.
13 1 009839
Flat pt. SSS, 5/16-24 x 1/2
14 1 024336 Spring housing
15 2 002187 Spring lock washer, 1/4
16 2 004234 HHCS, 1/4-20 x 3/4
17 1 024220 SHCS, 5/16-18 x 5/8
KEY
QTY PART # DESCRIPTION
18 1 024337 Spring plunger
19 1 024381 Spring
20 1 024338 Spring screw
21 2 024349
Connecting link
22 1 024314 Chain
23 1 024377 Shaft
24 1 002399 Drum arm assy.
25 1 002805 Cotter pin, 1/8 x 3/4
26 1 004192 Washer, 1/2 SAE
27 1 024328 Pivot
28 1 024311 Brake link
29 1 024350 ShS, 3/8 x 3/4
30 1 024353 Jam nut, 3/8-16
31 1 024356 SHSS, 10-24 x 3/8 cup point.
32 1 024302 Adjustment knob
33 1 024344 Spring
34 1 007453 Washer, 3/8 plain
