SIGRIST TurBiScat PM 40 Brief Instructions

Mounting
23 / 196
3 Mounting
3.1 General information on mounting
Use detailed dimension drawings for photometer and control device mounting.
l Distance between photometer and stray light sources > 2 m.
l Avoid the formation of gas bubbles on the sensor head by using a suitable fitting position.
l Distance between the photometer and pipe bends and cross-section-changing elements > 1 m.

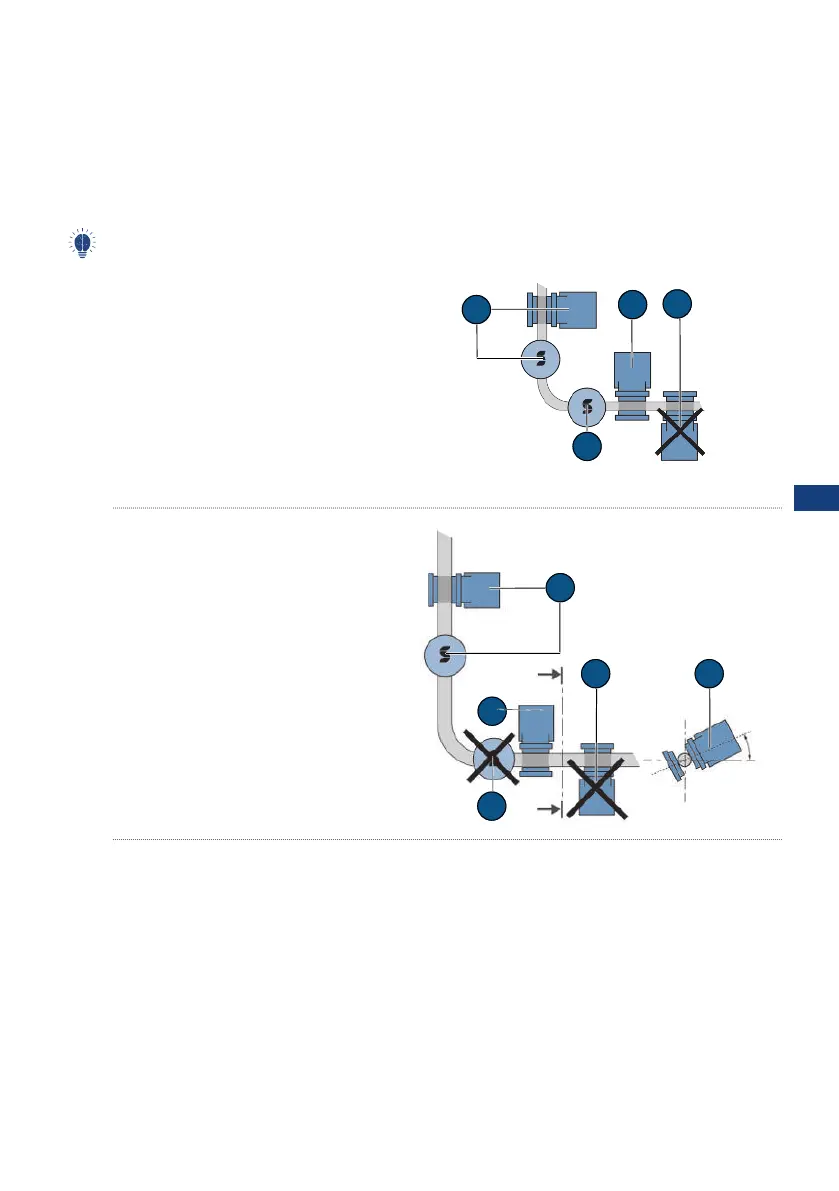

3.2 Mounting position of the photometer
For vertical fitting, the plugs must point downwards. For horizontal fitting, the plugs should be on
the left side.
In process line
Fitting position (A) and (B): Permitted
Fitting position (C): Permissible under the
following conditions:
l Medium temperature:
– -10 ... +80° C
– 120° C max. 2 h
– 150° C max. 1 h
l Continuous medium flow at > 2 bar pres-
sure
Fitting position (D): Impermissible
C
B
D
A
EHEDG-compliant
Fitting positions (A), (C) and (E): Permitted
Fitting position (B) and (D): Impermissible
D 1
A
A
E
> 3°
B
C
E
E
DE
EN
FR
ES
NL
PT
ZH
RU
CS
JA
IT
PL
