SIGRIST TurBiScat PM 40 Brief Instructions

Mounting
24 / 196

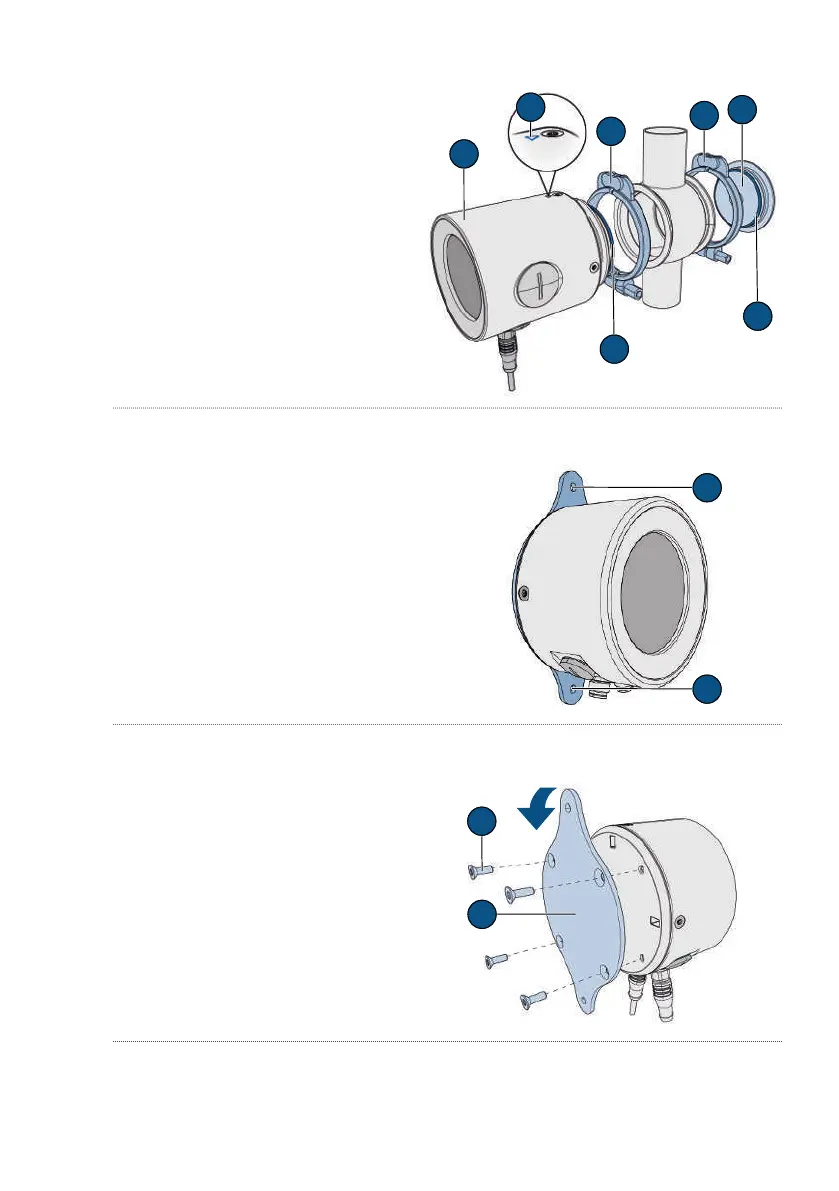

3.3 Fitting in VARINLINE
®
connector
u Mount photometer (1) including seal (7)
with clamp ring (3) on VARINLINE
®
con-
nector.
u Make sure that the marking (2) points in
the flow direction.
u Mount blanking plate (5), including seal
(6) with clamp ring (4) on VARINLINE
®
connector.
1
2
3
4
5
6
7
3.4 Mounting SiDis AD 40
3.4.1 Wall mounting
u Mount SiDis AD 40 on the wall with two
screws (1) according to the dimension
drawing.
1
1
3.4.2 Rotate mounting plate
If necessary, the mounting plate can be rotated by 90° as follows:
u Loosen four screws (2).
u Turn the mounting plate (1) in the de-
sired position.
u Fasten with four screws (2).
2
1
