Siko AG25 Translation Of The Original Installation Instructions

AG25
Installation English
AG25 · Date 19.07.2022 · Art. No. 87450 · Mod. status 157/22
34
PIN Designation
6 RS232 RXD
7 RS232 TXD
8 SGND*
* internally linked with GND
Operating voltage
Strand cross section of the lines 0.14 ... 0.35mm².

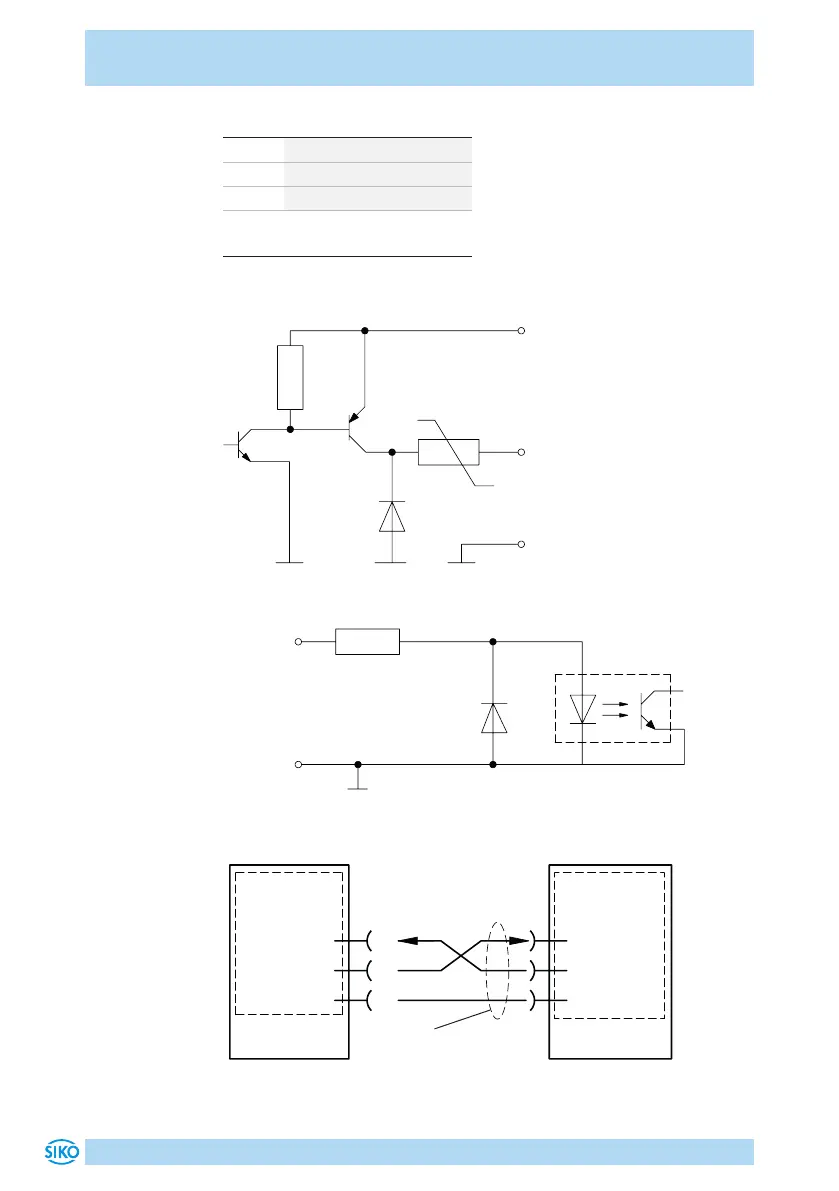

Fig. 8: output circuit
output
max. 40 mA
SGND
+UB (control)
Fig. 9: input circuit
input
SGND
10 mA at
max. 30 V DC
Fig. 10: Pinout schema RS232 interface
RXD
TXD
GND
(8)
(6)
(7)
SGND
TXD
RXD
RS232
PC
RS232
Apply screen to PE
AG25
Interface Interface
