7.3 Replacing the brush
When the brush no longer cleans off the burrs it must be replaced as follows:
1) Turn the machine off and unplug it.
2) Place the locking pin into the groove in the base and into the special hole in the cutter shaft (fig.27).
3) Use the Allen wrench to loosen the screw holding the brush in place.
4) Replace the brush and tighten the screw with the Allen wrench.
5) Remove the locking pin.

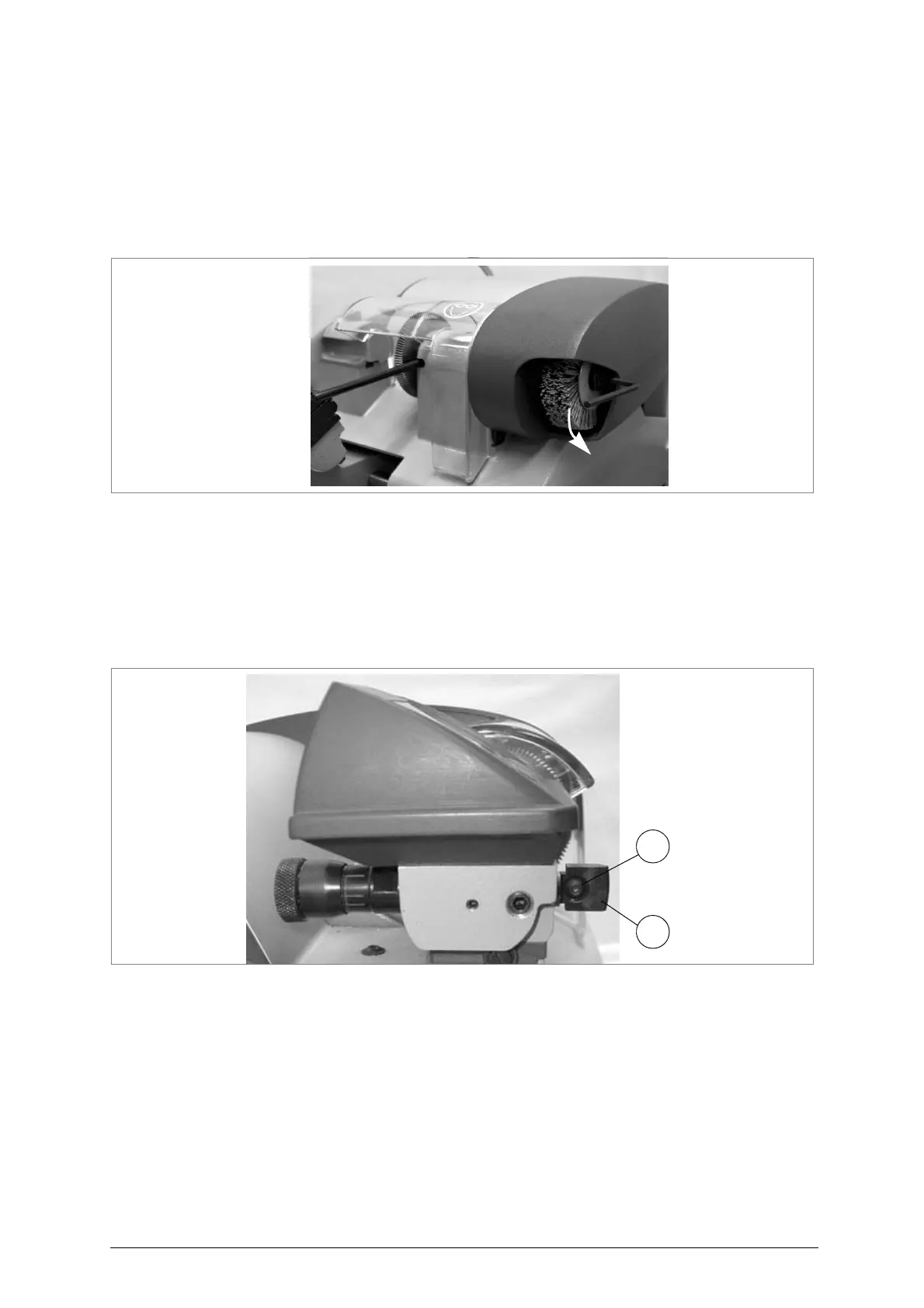

Fig. 27
7.4 Replacing the tracer point
To replace the tracer point, proceed as follows:
1) Turn the machine off and unplug it.
2)
Loosen and remove the screw (J) and remove the tracer point
(B) (fig.28).
3)
Place the new tracer point in position and fix with the screw
(J).
4) Re-calibrate the machine, following the procedure described in chapter 5.10 on page 14.
Fig. 28
