6.8.2. Active Antenna
Active antenna has an integrated Low-Noise Amplifier (LNA). VCC_ANT is needed on customer’s application
board for the active antenna power input, as shown in Figure 50.
C101
MODULE
GPS_ANT
GND
C102
R101
Matching circuit
GNSS
Active
Antenna
L101 27nH
R102 10Ω
VCC_ANT
(PIN68)
(PIN67)
BPF

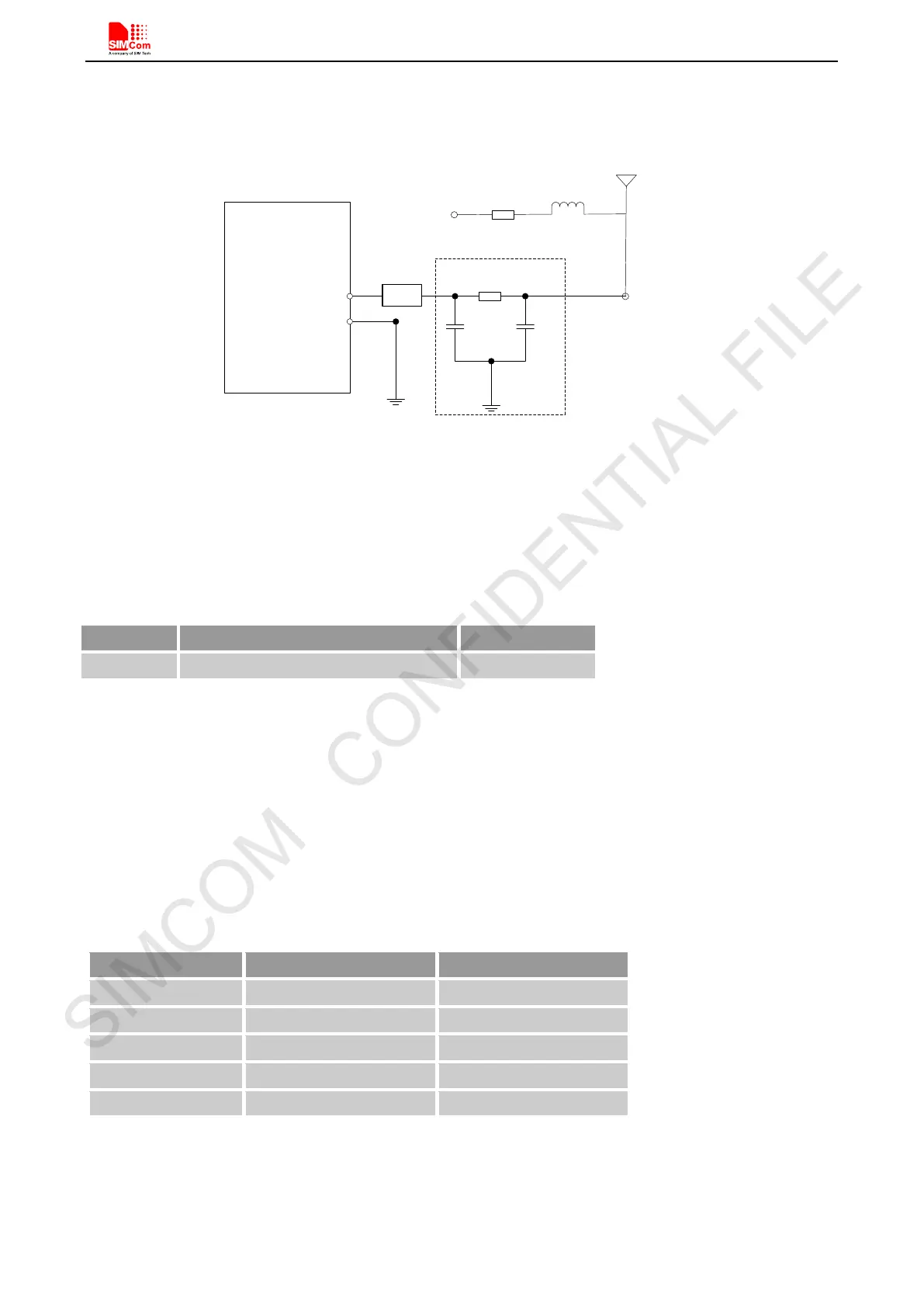

Figure 50: GNSS active antenna matching circuit
The inductor L101 is used to prevent the RF signal from leaking into the VCC_ANT pass and route the bias
supply to the active antenna, the recommended value of L101 is no less than 27nH. R102 can protect the whole
circuit in case the active antenna is shorted to ground.
Table 32: Recommended BPF component
1.10*0.90 SAFFB1G56KB0F0A Murata
6.9. Operation Modes of GNSS
GNSS supports operating modes like full on mode, stop mode, backup mode, periodic mode, AlwaysLocate
TM
mode and GLP mode.
Full on mode: In this mode, the GNSS will enter full on mode after first power up. Power consumption will
vary depending on the amount of satellite acquisitions and number of satellites in track.
Table 33: Default configuration of GNSS (full on mode)
Item Configuration Comment
Baud rate Depend on firmware 9600/115200bps
SBAS Enable
Note: The GNSS modes mentioned above are set by PMTK commands. The PMTK commands for multiple
position chosen are illustrated as below:
$PMTK353,1,0,0,0,0*2A (GPS only)
$PMTK353,0,0,0,0,1*2A (BEIDOU only)
