Smart Machine Smart Decision
SIM7000 _Hardware Design _V1.00 2017-05-23

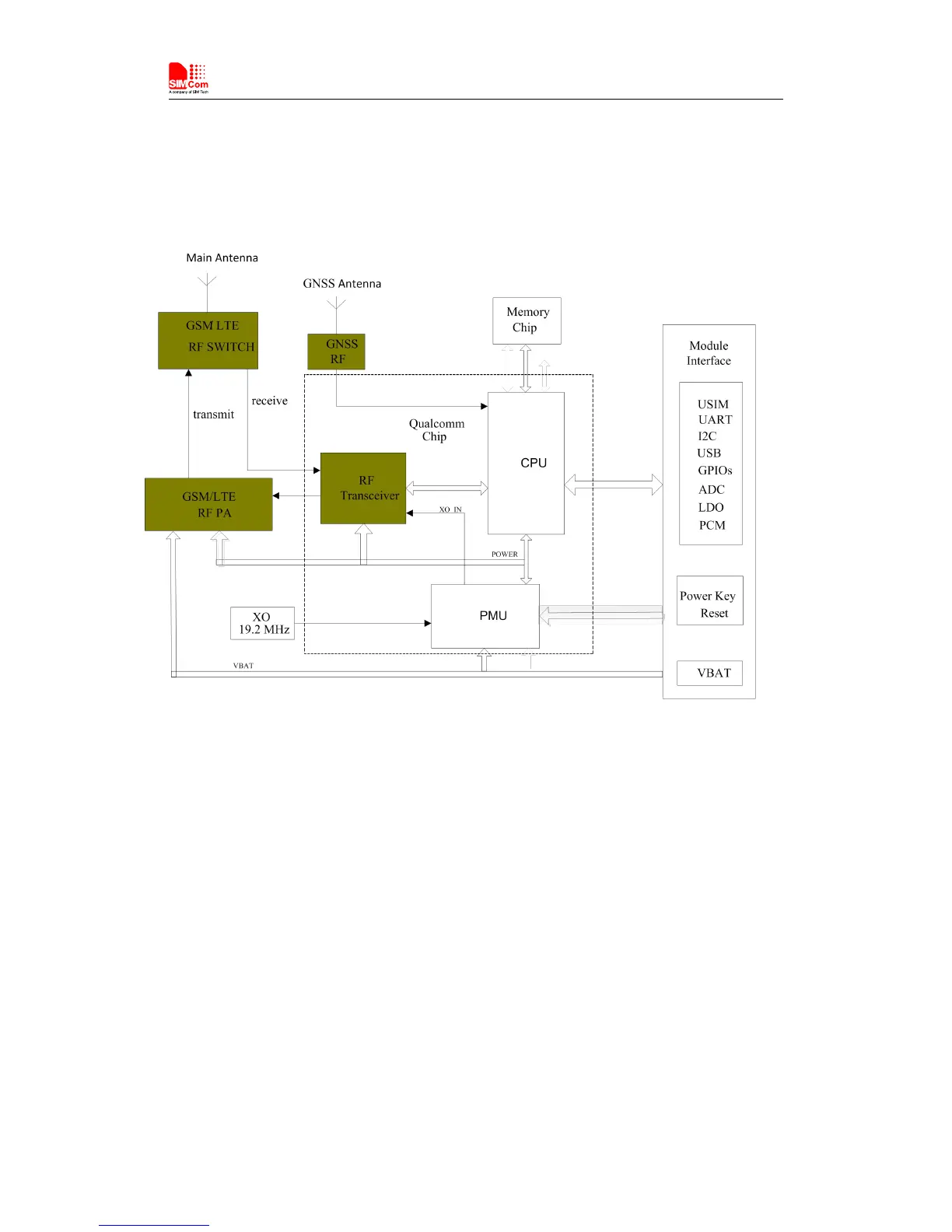

1.3 Hardware Block Diagram
The block diagram of the SIM7000G module is shown in the figure below.
Figure 1: SIM7000 block diagram
