Smart Machine Smart Decision
SIM800C_Hardware_Design_V1.02 33 2015-4-27

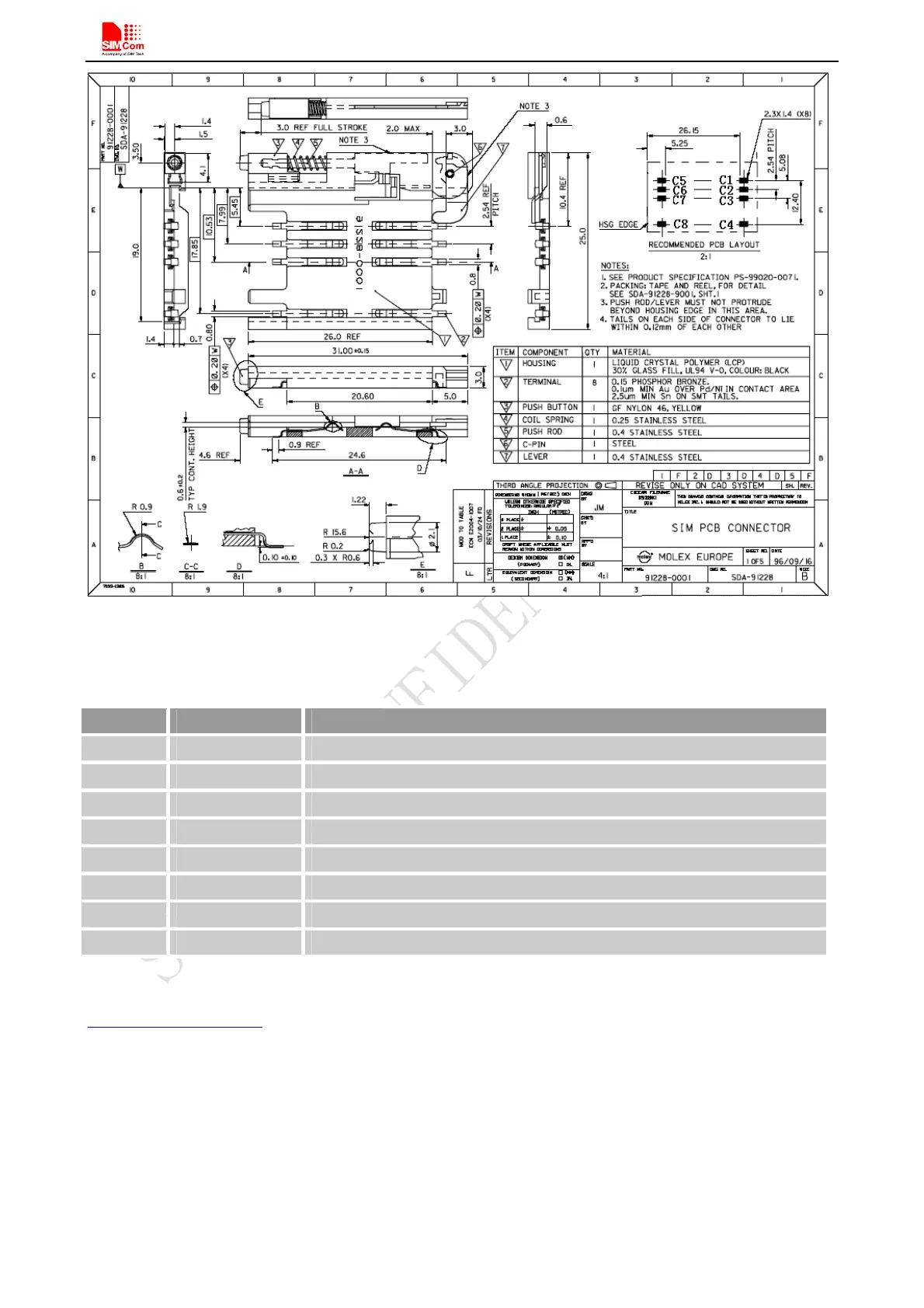

Figure 32: Molex 91228 SIM card holder
Table 16: Pin description (Molex SIM card holder)
Pin name Signal Description
C1 SIM_VDD SIM card power supply
C2 SIM_RST SIM card reset
C3 SIM_CLK SIM card clock
C4 GND Connect to GND
C5 GND Connect to GND
C6 VPP Not connect
C7 SIM_DATA SIM card data I/O
C8 SIM_DET Detect SIM card presence
For 6-pin SIM card holder, SIMCom recommends to use Amphenol C707 10M006 512 .Customer can visit
http://www.amphenol.com
for more information about the holder.
