Sime EDEA - Wiring Diagram

23

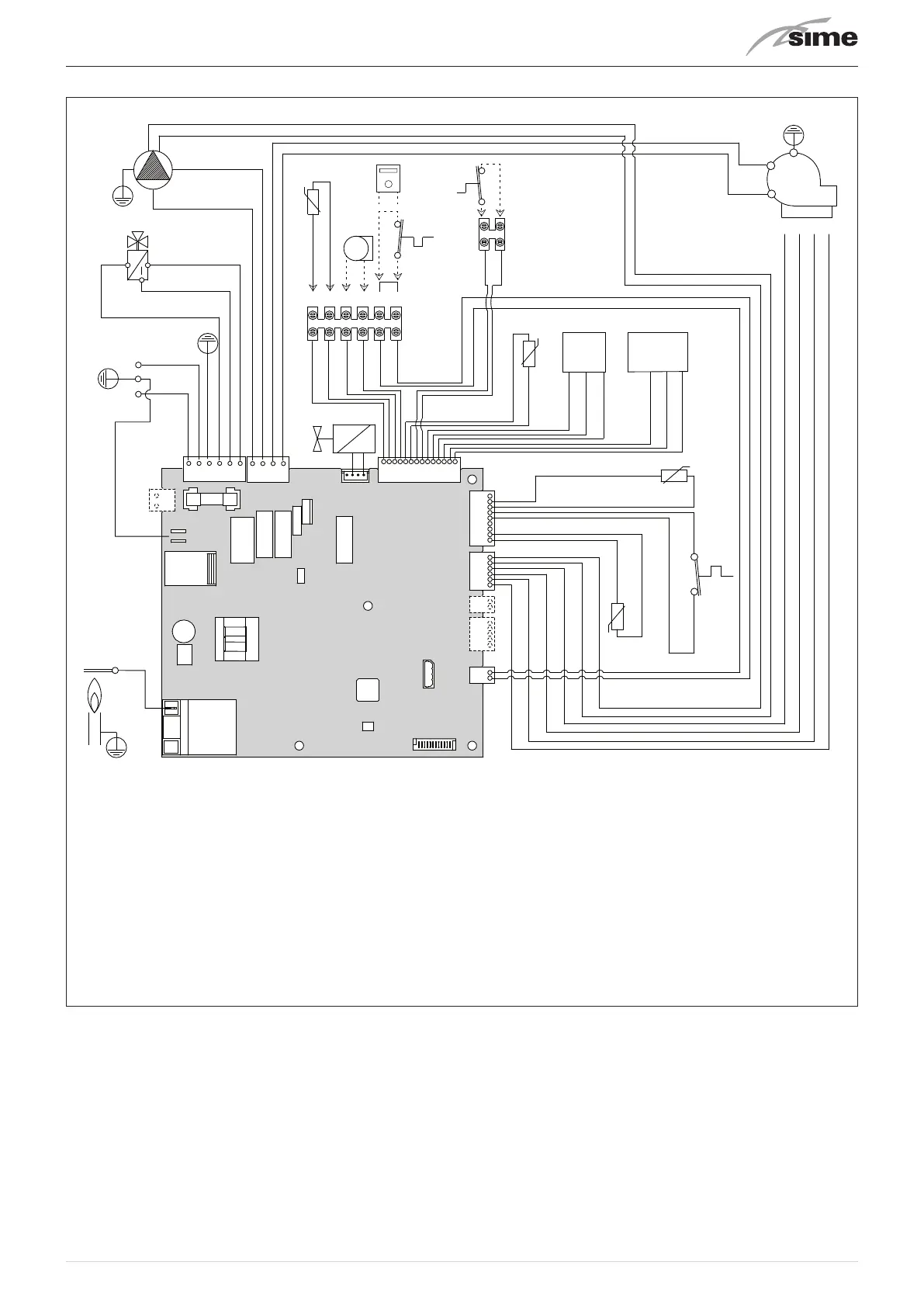

5.10 Wiring diagram
BK
BL
BR
TRA
EVG
FU
CN11
BL BL
G G
BK BK
TA1
SE
BL
BL
BR
BR
PI
EVD
2 3
BL
BR
230 V - 50 Hz
L
N
CN6
CN5
CN3
CN17
CN4 CN1
CN15
CN14
CN13CN12
CN2
R
G
WH
R R
R
R
SS
V
FLM
SF
TS
SM
VCC GND IN
BK
BK
BL
R G BK BL
BL BR
BL
4 3 2 1
BL
BK
G
R
BL
BR
EAR
SR
BK BK
TA2
321 4 5 6
R
OR
G
TPA
5V GND OUT
CR
CR Remote control (instead of
air thermostat)
EAR Ignition / Detection electrode
EVD Diverter solenoid valve
EVG Gas solenoid valve
FLM Flow meter
FU Fuse (3.15AT - 250V)
L Line / Live
N Neutral
PI System pump
SE External temperature sensor
SF Smoke flue gas probe
SMC Boiler delivery sensor
SRC Boiler return probe
SS Domestic hot water sensor
TA1-TA2 Room thermostat
TPAC Water pressure transducer
TRA Ignition transformer
TS Safety thermostat
V Fan
BL Blue
BR Brown
BK Black
G Green
OR Orange
R Red
WH White
To connect the "Air Thermostat" or, alternatively the "Remote Control", remove the bridge between terminals 5-6.
Fig. 16
m
CAUTION
Users must:
– Use an omnipolar cut-off switch, disconnect
switch in compliance with EN Standards
which en-
sures complete cut-off in overvoltage category III con-
ditions (i.e. where there is at least 3 mm between the
open cont
acts)
.
– Respect the connections L (Live) - N (Neutral).
– Ensure that the special power cable is only re-
placed with a cable ordered as a spare part and
connected by professionally qualified personnel.
m
CAUTION
Users must:
– Connect the earth wire to an effective earthing
system.
The manufacturer is not responsible for any
damage caused by failure to earth the appliance or
failure to observe the information provided in the wir-
ing diagrams
.
d
IT IS FORBIDDEN
To use water pipes for earthing the appliance.
