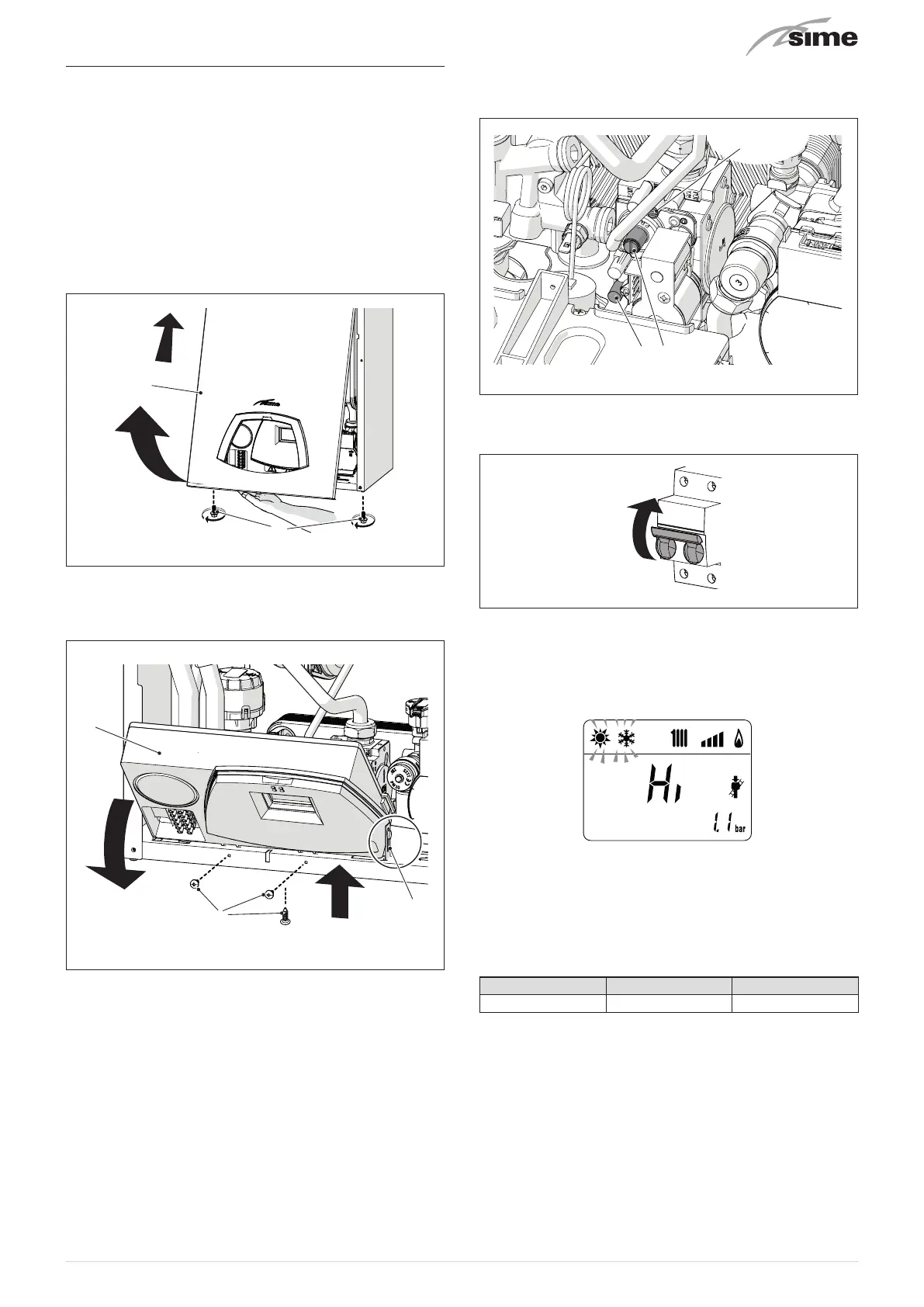

7.6 Checks
7.6.1 Chimney sweeper function
The chimney sweeper function is used by the qualified main-
tenance technician to check the mains gas pressure, detect
the combustion parameters and to measure the combustion
efficiency required by legislation in force.
This function lasts 15 minutes and is activated by proceeding
as follows:
– if the panel (2) has not already been removed, remove the
two screws (1), pull the front panel (2) forwards and release
it from the top by lifting it
1
2
Fig. 45
– remove the screws (3) securing the control panel (4)
– move the panel (4) upwards (a) but keeping it in the side
guides (5) to the end of travel
– bring it forwards and down (b) until it is horizontal
3
a
b
5
4
Fig. 46
– close the gas valve
– loosen the screw of the “gas mains pressure point” (6) and
connect a pressure gauge
6 8
7
Fig. 47
– open the gas valve
– power the boiler by setting the main switch to "ON"
ON
Fig. 48
– press the button
y
for at least 1 second until "SUMMER"
mode
l
has been selected
– simultaneously press the
y
and
>
buttons, for ~ 10 s, to
start the procedure, until “Hi” appears steady on the display
and the
l
and
n
symbols flash
– press the button
>
to make the boiler operate at maximum
power "Hi" and check that the mains gas pressure value on
the pressure gauge is correct. Take a reading of the com-
bustion data and measure the combustion efficiency.
– check that the gas supply pressure is as shown in the table
below
Type of gas G20 G31
Pressure (mbar) 20 37
