26
6 INSTALLATION
m
CAUTION
The appliance must only be installed by the
Sime Ltd
Technical Service or by qualified professionals
who
MUST wear
suitable protective safety equipment.

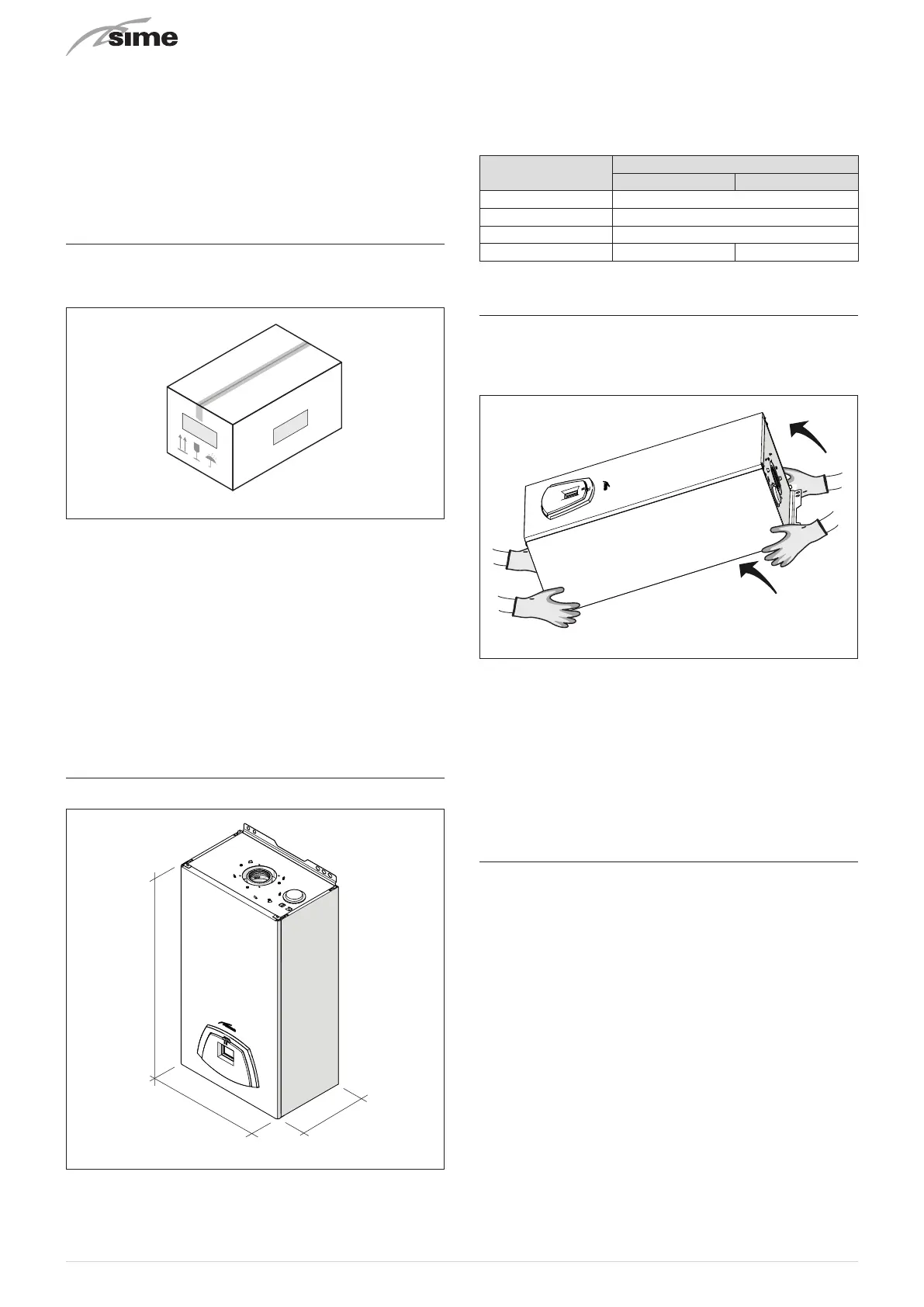

6.1 Receiving the product
Edea
appliances are delivered in a single unit protected by
cardboard packaging.
Fig. 17
The plastic bag found inside the packaging contains the fol-
lowing:
– Installation, use and maintenance manual
– Paper template for boiler installation
– Certificate of warranty
– Hydrostatic test certificate
– System booklet
– Bag with expansion plugs
d
IT IS FORBIDDEN
To leave packaging material around or near children
since it could be dangerous. Dispose of it as pre-
scribed by legislation in force.
6.2 Dimensions and weight
W
D
Fig. 18
Description
Edea
30 40
W (mm) 400
D (mm) 260 (*)
H (mm) 700
Weight (kg) 28,4 30,8
(*) Without removable panel.
6.3 Handling
Once the packaging has been removed, the appliance is to be
handled manually, tilting it slightly, lifting it and applying pres-
sure in the points indicated in the figure.
Fig. 19
d
IT IS FORBIDDEN
To grip the appliance casing. Hold the "solid" parts of
the appliance such as the base and structural frame.
a
WARNING
Use suitable tools and accident protection when
removing the packaging and when handling the ap-
pliance. Observe the maximum weight that can be
lifted per person.
6.4 Installation room
The room where the appliance is to be installed must com-
ply with the Technical Regulations and Legislation in force.
It must be equipped with suitably sized ventilation openings
when the installation is a "TYPE B" installation.
The minimum temperature of the installation room must NOT
be lower than
-5 °C
.
m
CAUTION
– Before assembling the appliance, the installer
MUST
make sure that the wall supports the weight.
– Remember to consider the space needed in order
to access the safety/adjustment devices and to
carry out maintenance interventions (see Fig. 20).
