Sime EDEA - Electrical Connections; Separate Ducts (Ø 80 Mm) with Duct Kit

34
6.12.7 Separate ducts (Ø 80mm) with duct kit C(10)3
The Edea boiler is configured for use with type C(10)3 dis-
charge ducts. To ensure correct boiler operation, certain pa-
rameters should be modified in relation to the power and type
of fuel used to power the device.
Set the parameters as specified in the table.
Type No. Description
Setting for
Edea
30
METHANE LPG
PAR 09 Ignition revolutions - 110
PAR 21 CH/DHW minimum power 15 10
Duct kit C(10)3 code 6296543 6296543
Type No. Description
Setting for
Edea
40
METHANE LPG
PAR 09 Ignition revolutions - 118
PAR 21 CH/DHW minimum power 9 11
Duct kit C(10)3 code 6296543 6296543
NOTE: To modify the parameters in the table, proceed as spec-
ified in the paragraph "Par
ameter setting and display".

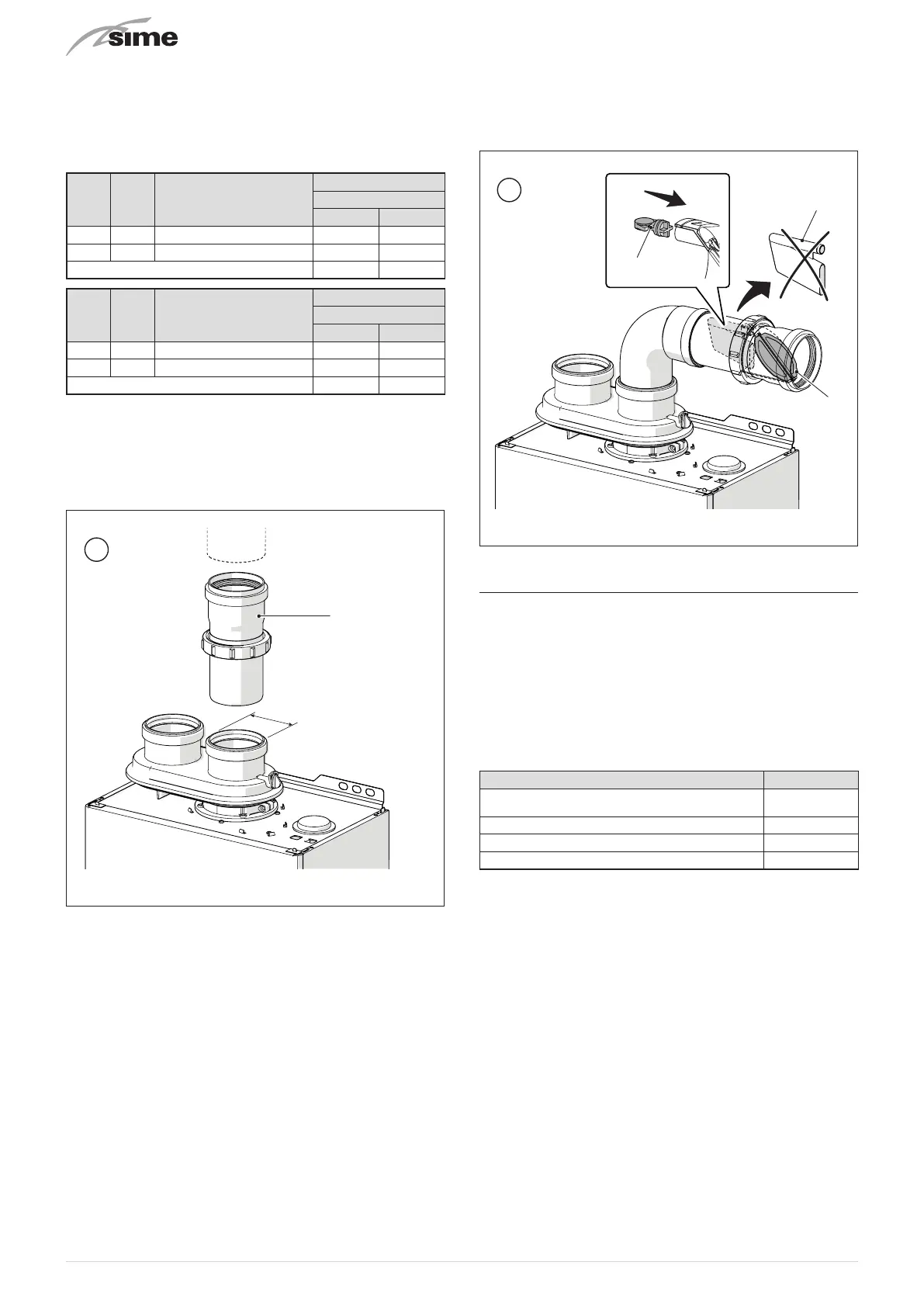

The duct kit C(10)3 (1) can be installed both vertically A) and
horizontally (B).
1
Ø80
A
Fig. 29
If it is installed horizontally, when positioning the internal but-
terfly valve make sure that its fins (2) face upwards, so that
they remain closed by effect of their weight. Moreover, it is
necessary to remove the siphon (3) and mount the cap (4) sup-
plied with the kit.
3
B
2
4
Fig. 30
6.13 Electrical connections
The power cable must be connected to a 230V (±10%) ~ 50 Hz
network, observing L-N polarity and the earth connection. The
network must have an omnipolar switch with category III over-
voltage, in compliance with the installation rules.
If this cable needs to be replaced, an original spare must be
requested from
Sime Ltd .
Therefore only the connections of the original components as
shown in the table are needed. These are to be ordered sepa-
rately from the boiler.
DESCRIPTION CODE
External sensor kit (ß=3435, NTC 10KOhm at
25°C)
8094101
Power cable (dedicated) 6323875
Remote control HOME (open therm) 8092280
Remote control HOME PLUS (open therm) 8092281
m
CAUTION
The maintenance interventions described must
ONLY be carried out the professionally qualified per-
sonnel.
a
WARNING
Before carrying out any interventions described:
– set the main system switch to "OFF"
– close the gas valve
– make sure that no hot parts inside the appliance
are touched.
