4007ES Operator’s Manual (579-1165)
Processing Supervisory and
Trouble Conditions:
When a Supervisory or a Trouble event occurs, it needs to be acknowledged and the
cause of the event resolved for the system to return to normal. Two types of
acknowledging modes can be configured on the panel.
1. Global Acknowledge
All the zones inside the Zone Supervisory or Zone Trouble lists are acknowledged at
once.
2. Individual Acknowledge
Each zone inside the Zone Alarm List are acknowledged separately.
Note: A zone groups multiple points together and the Zone Supervisory or Zone Trouble list
displays all the zones where Trouble or Supervisory conditions occurred.

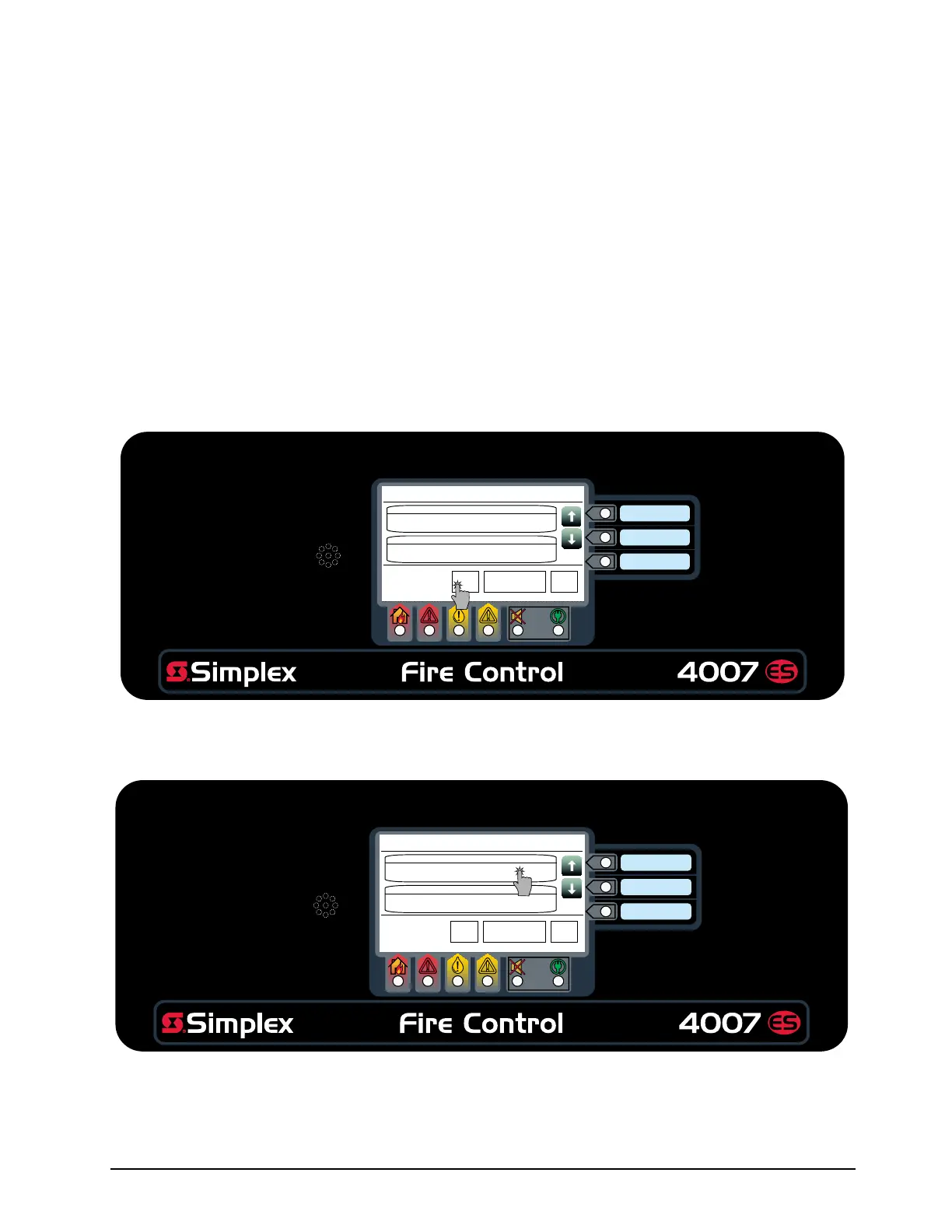

Global Acknowledge
Tap the ACK button.
Individual Acknowledge
Tap the unacknowledged Trouble from the events list.
Note: The Troubles that have not been acknowledged display the text “Press to acknowledge” on the top right of the button.
Date
Time
Trouble in System
ACK
5
Alarm Functions Menu
CARD 1, NAC POWER SUPPLY
NAC MISWIRE TROUBLE
Date
First of 5
SYSTEM TIME/DATE INVALID OR NOT SET
ABNORMAL
Date
Most Recent of 5
Date
Time
Trouble in System
ACK
5
Alarm Functions Menu
CARD 1, NAC POWER SUPPLY
NAC MISWIRE TROUBLE
First of 5
SYSTEM TIME/DATE INVALID OR NOT SET
ABNORMAL
Most Recent of 5
Press to acknowledge
Press to acknowledge
Supervisory and Trouble Conditions, Continued

Simplex 4007ES Specifications

General

Model	4007ES
Category	Fire Alarms
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Display	4.3-inch color touchscreen
Power Supply	120/240 VAC, 50/60 Hz
Network Connectivity	Ethernet, RS-232, RS-485
Addressable Points	250
Communication Protocols	MAPNET II
Notification Appliance Circuits	4 NACs
Total Points	250
Annunciation	Yes
Max Devices	250
Max Notification Circuits	4
Communication Ports	RS-232, USB
