4007ES Operator’s Manual (579-1165)
Alarm Conditions
Overview:
An alarm condition occurs when an initiating device (such as a manual pull station,
smoke detector, etc.) activates. The panel indicates the presence of the alarm
condition by:
• Displaying messages on the user interface.
• Flashing the Fire or PRI2 LEDs.
• Activating the building’s notification appliances (horns and strobes).
Screen Buttons:
Scroll Up
Scroll Down
Return Accept Decline
Recognizing an Alarm
Condition:
When an alarm condition occurs, the following events occur at the user interface:
Fire PRI2
1. The Fire LED begins to blink
2. The piezo begins to sound a
pulsating tone
3. The user interface displays the
Fire Alarm in System screen,
which shows the list of all the
triggered alarms.
1. The PRI2 LED begins to blink
2. The piezo begins to sound a pulsating tone
3. The user interface displays the PRI2 Alarm in
System screen, which shows the list of all the
triggered alarms.
Note: A zone groups multiple points together, and the Zone Fire and Zone PRI2 Alarms lists dis-
play all the zones where alarm conditions occurred. You can view the points that triggered
the alarms within each zone by pressing on any given zone from the list.

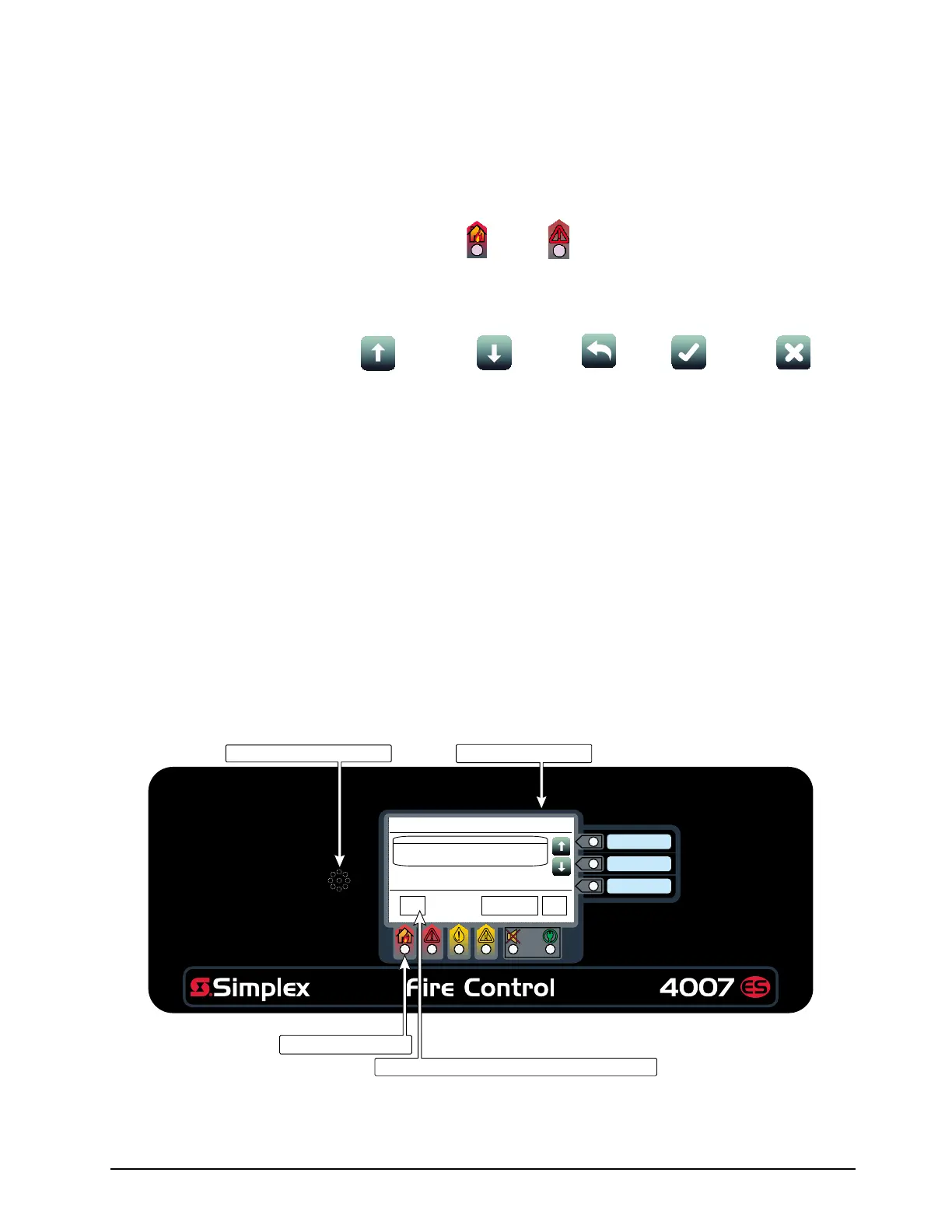

Figure 3. Alarm Condition Screen (Fire Alarm Shown as an Example)
The piezo can be silenced by pressing anywhere on the user interface touchscreen. Until the alarm conditions are
acknowledged, it will re-sound after 1 minute of inactivity at the user interface.
Piezo is emitting a pulsating tone
A list of alarms is displayed
The Fire LED is blinking
Date
Time
Fire Alarm in System
PULL STATION 1
FIRE ALARM
Date
First of 1
MenuAlarm Functions
ACK
1
The number displayed represents the number of alarms
Alarm Conditions
