Processing Alarms: There are three actions that may be taken when an alarm condition occurs:
1. Acknowledge an Alarm
2. Silence the Alarm
3. Reset the System
Each step is explained in detail in the rest of this section.
Acknowledge an Alarm: Two types of acknowledging modes can be configured on the panel:
1. Global Acknowledge
All the zones inside the Zone Alarm list are acknowledged at once.
2. Individual Acknowledge
Each zone inside the Zone Alarm list is acknowledged separately.

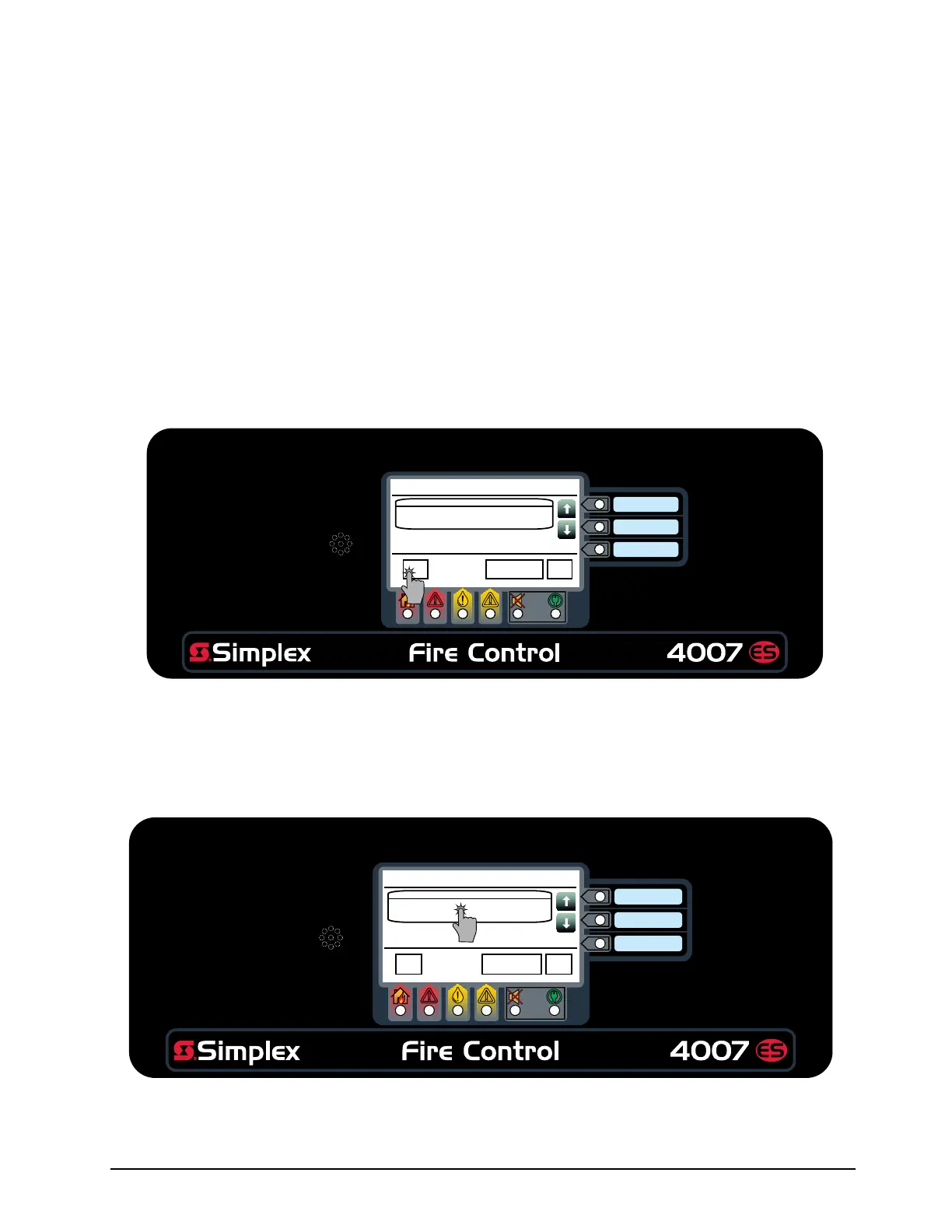

Global Acknowledge
Tap the ACK button.
Note: Acknowledging an alarm does not silence the horns. You need to silence an alarm as shown in the section “Silence the Alarm”.
Individual Acknowledge
Tap the unacknowledged alarm from the Zone Alarm List.
Note: The alarms that have not been acknowledged display the text “Press to acknowledge” on the top right of the button.
Date
Time
Fire Alarm in System
PULL STATION 1
FIRE ALARM
Date
First of 1
MenuAlarm Functions
ACK
1
Date
Time
Fire Alarm in System
PULL STATION 1
FIRE ALARM
Date
First of 1
MenuAlarm Functions
ACK
1
Alarm Conditions, Continued

Simplex 4007ES Specifications

General

Model	4007ES
Category	Fire Alarms
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Display	4.3-inch color touchscreen
Power Supply	120/240 VAC, 50/60 Hz
Network Connectivity	Ethernet, RS-232, RS-485
Addressable Points	250
Communication Protocols	MAPNET II
Notification Appliance Circuits	4 NACs
Total Points	250
Annunciation	Yes
Max Devices	250
Max Notification Circuits	4
Communication Ports	RS-232, USB
