Simplex 4007ES Operator's Manual

9
4007ES Operator’s Manual (579-1165)
Viewing the Alarm Condition
Details:
Each alarm condition contains detailed information on the point (or points) that have
triggered it. To access that info:

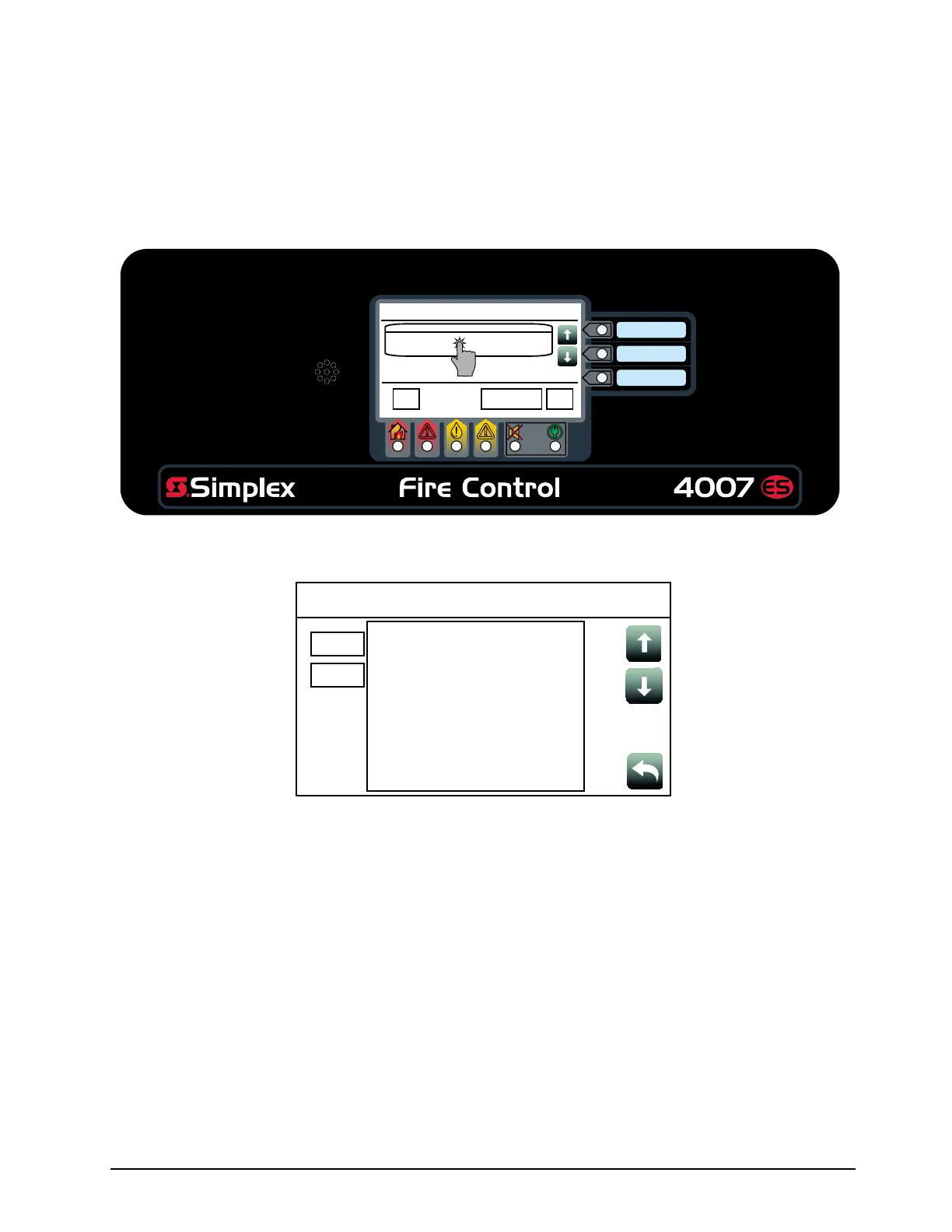

1. Tap on a desired alarm condition from the Fire Alarm in System screen. That alarm condition can either be a point
or a zone containing a variety of points. A point in alarm is shown as an example.
2. Take the necessary actions, using the buttons available at the point details screen. A pull station point is shown as an
example.
Date
Time
Fire Alarm in System
PULL STATION 1
FIRE ALARM
Date
First of 1
MenuAlarm Functions
ACK
1
M1-1-0
PULL STATION 1
Date
Time
Enable
Disable
M1-1
M1-1 PULL STATION
DEVICE ADDRESS: 2-1 TYPE: ADRPUL
IDNET2 CARD
UNIT NUMBER: 0 RUI NUMBER: LOCAL
---------------------------------------------------------------------
PRIMARY STATUS FIRE ALARM
CURRENT DEVICE CORRECT DEVICE
DEVICE ON-LINE
PHYSICAL STATE ABNORMAL
RAW STATE ABNORMAL
ACTIVE STATE OFF
ARMED STATE ARMED
ENABLED STATE ENABLED
Alarm Conditions, Continued

Simplex 4007ES Specifications

General

Model	4007ES
Category	Fire Alarms
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity Range	Up to 93% RH, non-condensing
Display	4.3-inch color touchscreen
Power Supply	120/240 VAC, 50/60 Hz
Network Connectivity	Ethernet, RS-232, RS-485
Addressable Points	250
Communication Protocols	MAPNET II
Notification Appliance Circuits	4 NACs
Total Points	250
Annunciation	Yes
Max Devices	250
Max Notification Circuits	4
Communication Ports	RS-232, USB
