Simplex 4010ES Series User Manual

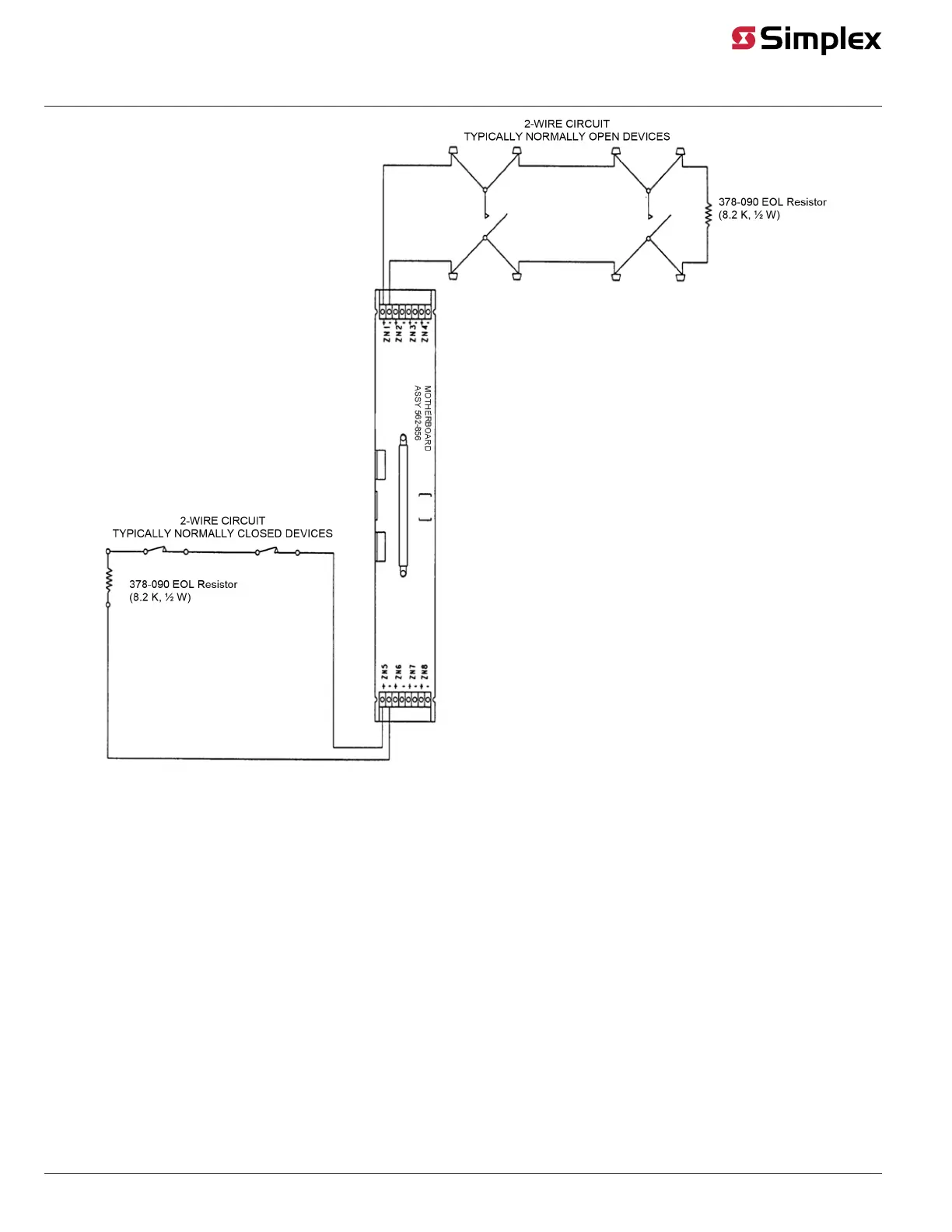

Figure 24: 4100-5004 / 4120-5004 or 4100-5005 Security Wiring (1)
• Wiring is 18 AWG minimum, or to local code.
• Conductors must test free of all grounds.
• If a zone is not used, connect an 8.2 K, 1/2 W resistor (378-090) across zone terminals.
• Each zone is marked with its circuit number. Refer to the Programmer Report, which references the exact wires connected.
• Connect devices to the appropriate zone. The zone shown in the figure is an example.
• For zones that connect to contacts only, the maximum line resistance is 800 Ohms.
page 25 579-205 Rev. H
4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions

Simplex 4010ES Series Specifications

General

Communication Ports	RS-232, USB
Notification Appliance Circuits (NACs)	4 NACs
Display	LCD display
Annunciation	LED annunciators
Agency Listings	UL, FM, CSFM
Max Zones	99
Battery Backup	24-hour standby
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Dimensions	368 mm x 318 mm
