54
53
1

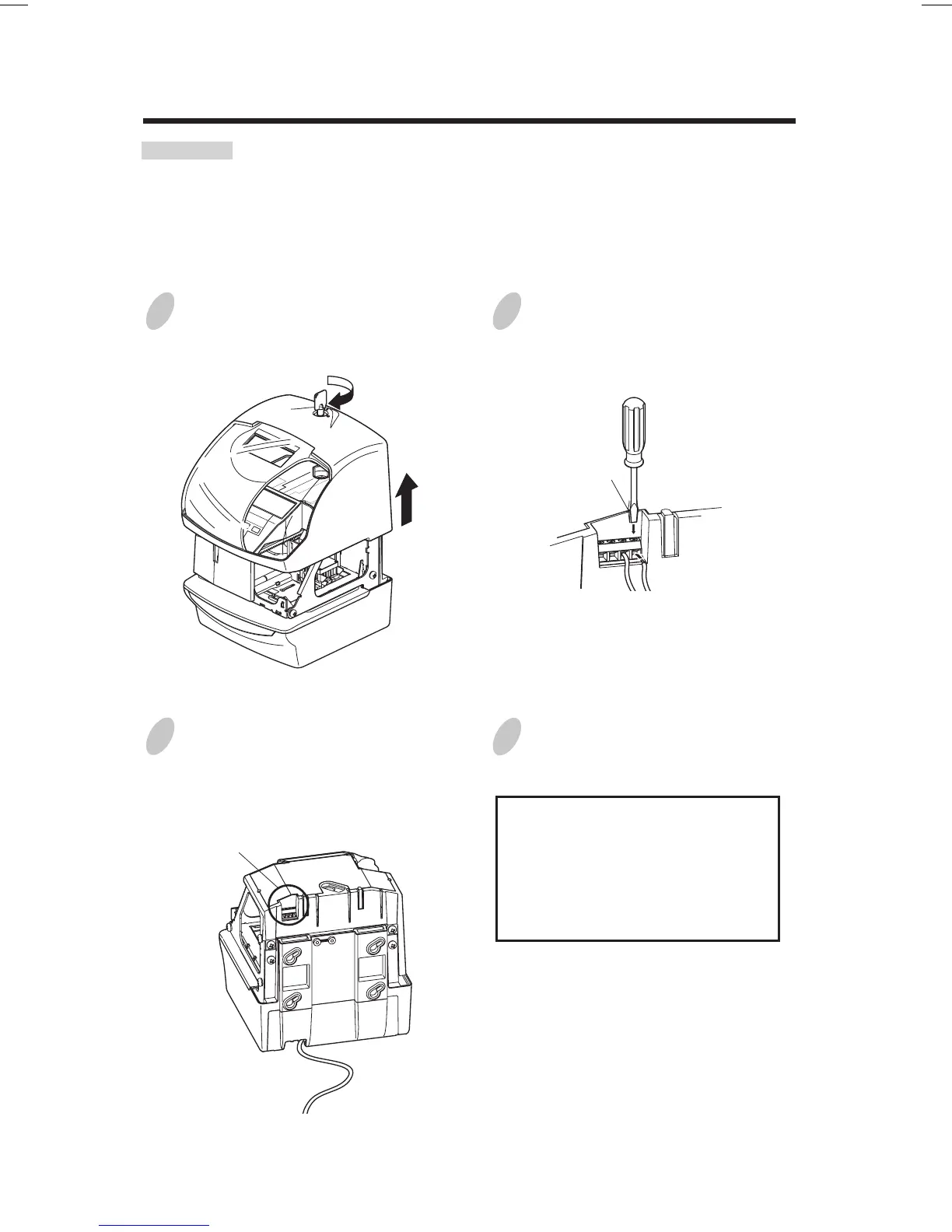

Unlock the key and remove the cover.
3
Insert wires into two right terminals
for external time signal, and tighten
both screws.
4
Replace the cover and lock.
2
The connector for external time
signals is on the back of the Time
Recorder.
Connecting the External Time Signal
connector
CAUTION: Be sure to pull out AC cord from AC outlet before connecting wires of the
External Time Signal.
Improper connection may cause a malfunction of the unit.
Also refer to "Attaching the Wire Clamp" to secure wires with the wire
clamp.
Connection Specifications for
External Contact
• Contact output: One circuit,
dry contact
• Contact capacity: 5A, 30V
To Next Page
