Simplex EP40 User Manual

60
54
53
1
Unlock the key and remove the cover.
3
Insert wires into two right terminals
for external time signal, and tighten
both screws.
4
Replace the cover and lock.
2
The connector for external time
signals is on the back of the Time
Recorder.
Connecting the External Time Signal

connector
CAUTION: Be sure to pull out AC cord from AC outlet before connecting wires of the
External Time Signal.
Improper connection may cause a malfunction of the unit.
Also refer to "Attaching the Wire Clamp" to secure wires with the wire
clamp.
Connection Specifications for
External Contact
• Contact output: One circuit,
dry contact
• Contact capacity: 5A, 30V
61
54
53
1

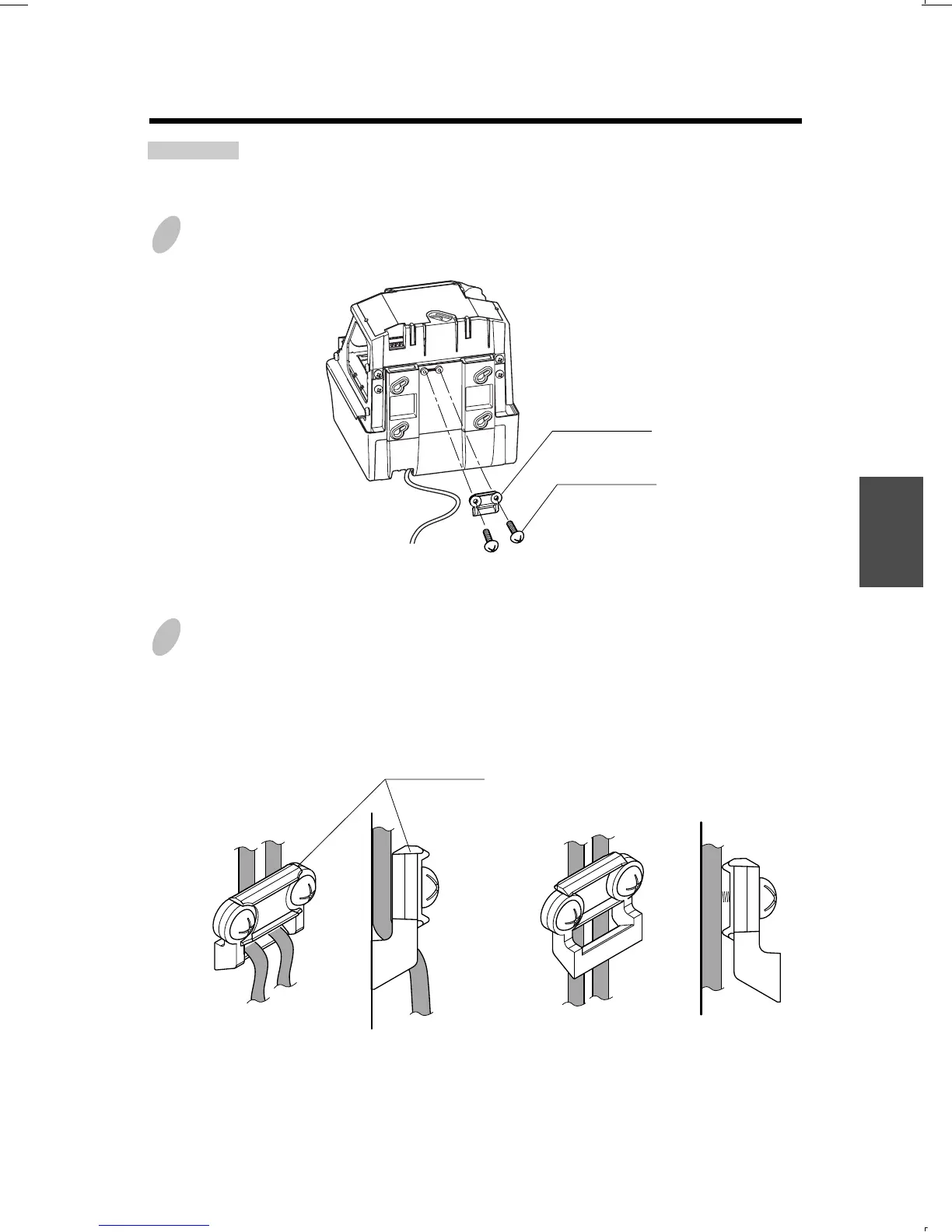

Remove two screws holding the wire clamp.
2
Make wires go through the hole of the wire clamp and secure it with screws. (See the
Figure 1.)
If diameter of wires is too small to fix by the above method, turn the wire clamp upside
down and feed wires through the clamp. Then secure it with screws. (See the Figure 2.)
Attaching the Wire Clamp
CAUTION: Be sure to pull out AC cord from AC outlet before attaching the wire
clamp.
Two screws
Wire clamp
Wire clamp
Figure 2 Figure1
