Simplex Saturn Series - Installation Procedure; Ground Bus; Main Load Bus

8 — Installaon
1. To bring in the source’s
power cables, pull holes
in the Conduit Opening,
located in the bottom of
the load bank’s control
panel enclosure (see
Figure 5 Conduit
Opening).
2. Conrm the test source is
properly grounded.
3. Ground the load bank
by connecting the
Grounding Bus to an earth
ground or grounding rod.
See Figure 3 Ground Bus
4. Connect the source’s
power output to the load
bank via the Main Load
Bus with appropriately
sized cables (see Figure 4
Main Load Bus).
inStallation
p
roCedure
Saturn load
banks feature
a power
outlet in the
control panel
for your use.
This outlet is
limited to 2
amps.

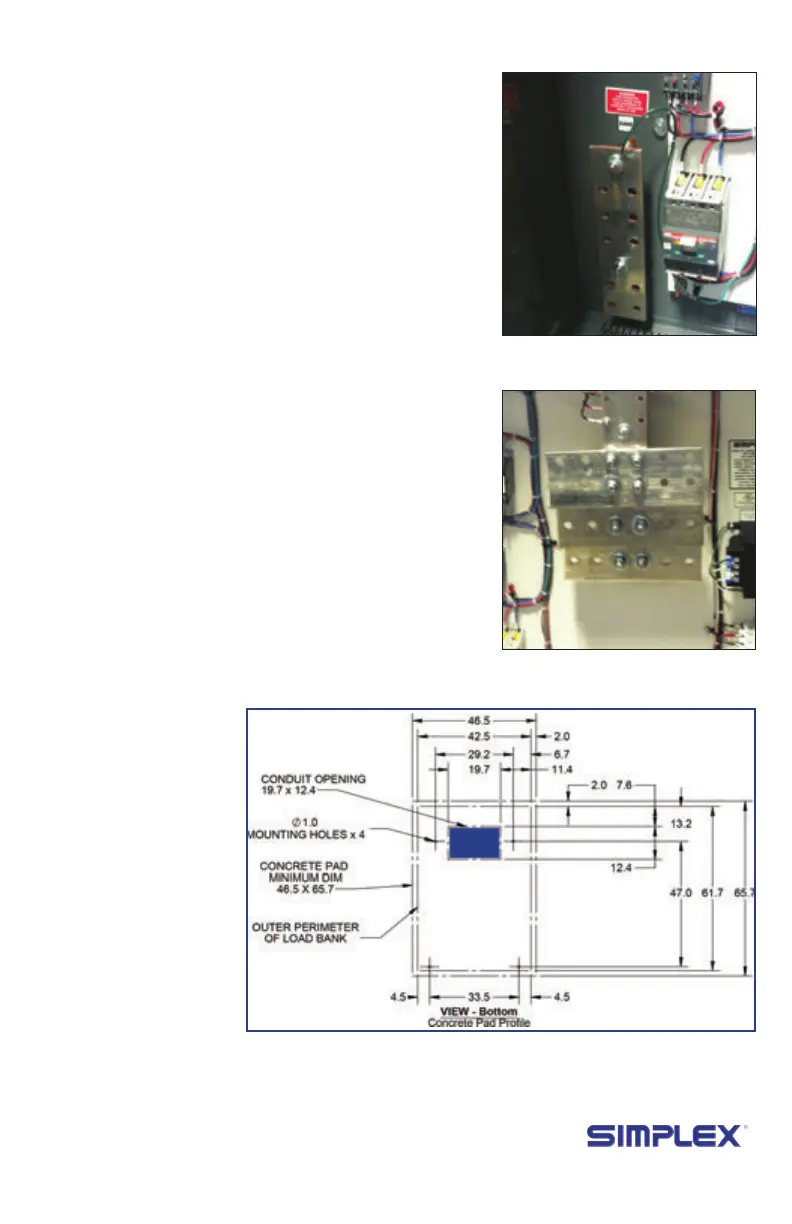

Figure 2 Ground Bus
Figure 3 Main Load Bus
Figure 4 Conduit Opening
