Simplex Saturn Series - Load Dump Installation; Load Dump Jumper

10 — Installaon
If the Load Dump
feature is desired, remove
the factory-installed
jumper at TB-R 1–2 and
connect customer-supplied
Load Dump contacts to
TB-R 1–2 (See Figure 9
Load Dump Jumper). To
dump the load, open the
customer-supplied contact.
To enable load, close the
customer-supplied contact.
load dump
inStallation

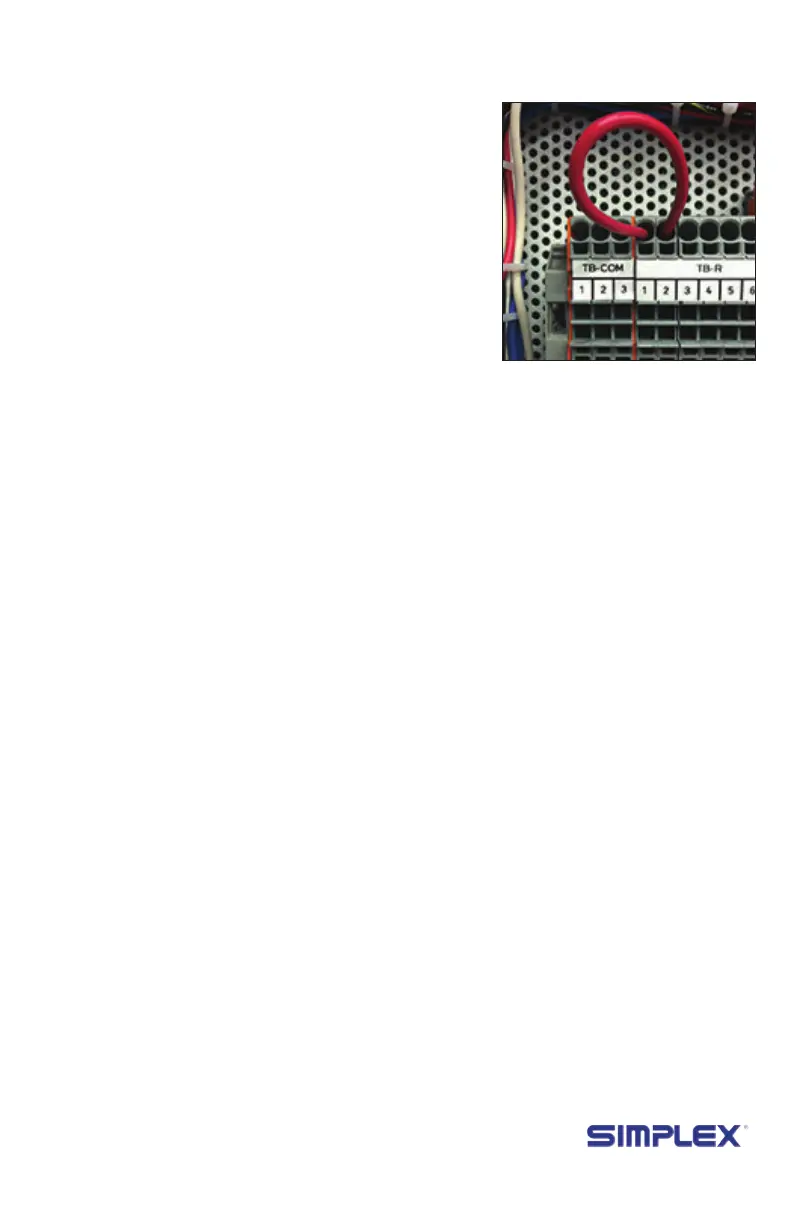

Figure 8
Load Dump Jumper
