Simplex Saturn Series - Current Transformer Placement for Metering; Current Transformer Placement for Auto;Regen. Mode

12 — Installaon

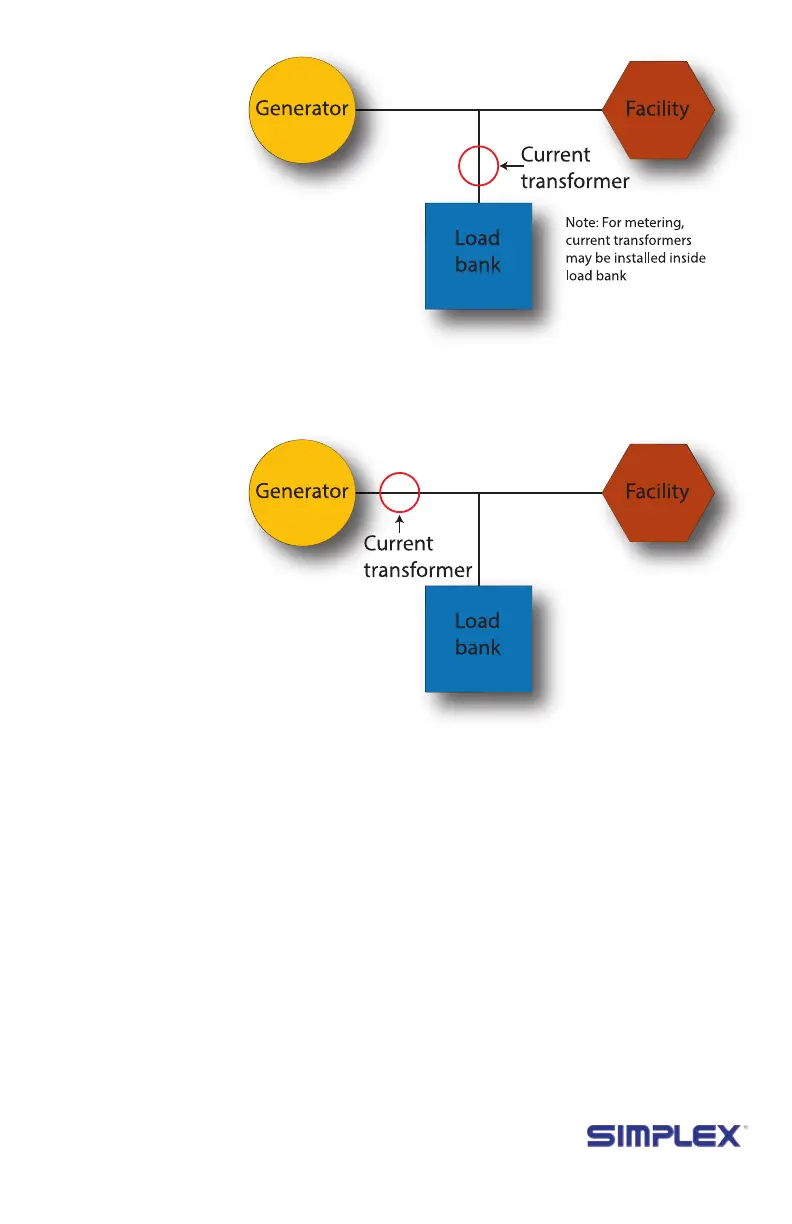

Figure 12
Current
Transformer
placement for
Metering
Figure 13
Current
Transformer
placement for
Auto/Regen.
Mode
e rst current transformer must be installed on Phase A, and the second must be
installed on Phase C.
