Landlord / 1700 / 2700 Series
1/2001 9
TP 300-2226-02-LL-SMA
Lubrication
Lubricate the unit at the locations shown in Figures 14
through 18 as well as the following lubrication points.
Grease:
• front axle pivot
• front wheel bearings
• front axle grease fittings
• steering linkage
• foot pedal
• mower pivots
• mower arbors
• transmission idler assembly pivot
• rear axle shafts (remove wheel hubs)
Use grease fittings when present. Disassemble parts
to apply grease to moving parts when grease fittings
are not present.
Not all greases are compatible. Simplicity Lithium
Grease is recommended, automotive-type lithium
grease may be used when this is not available.
Oil:
• hydro linkage
• seat adjustment assembly
• brake linkage
• frame pivot points
• mower deck height adjustment linkage
• manual lift lever
Generally, all moving metal parts should be oiled
where contact is made with other parts. Keep oil and
grease off belts and pulleys. Remember to wipe fit-
tings and surfaces clean both before and after lubri-
cation.

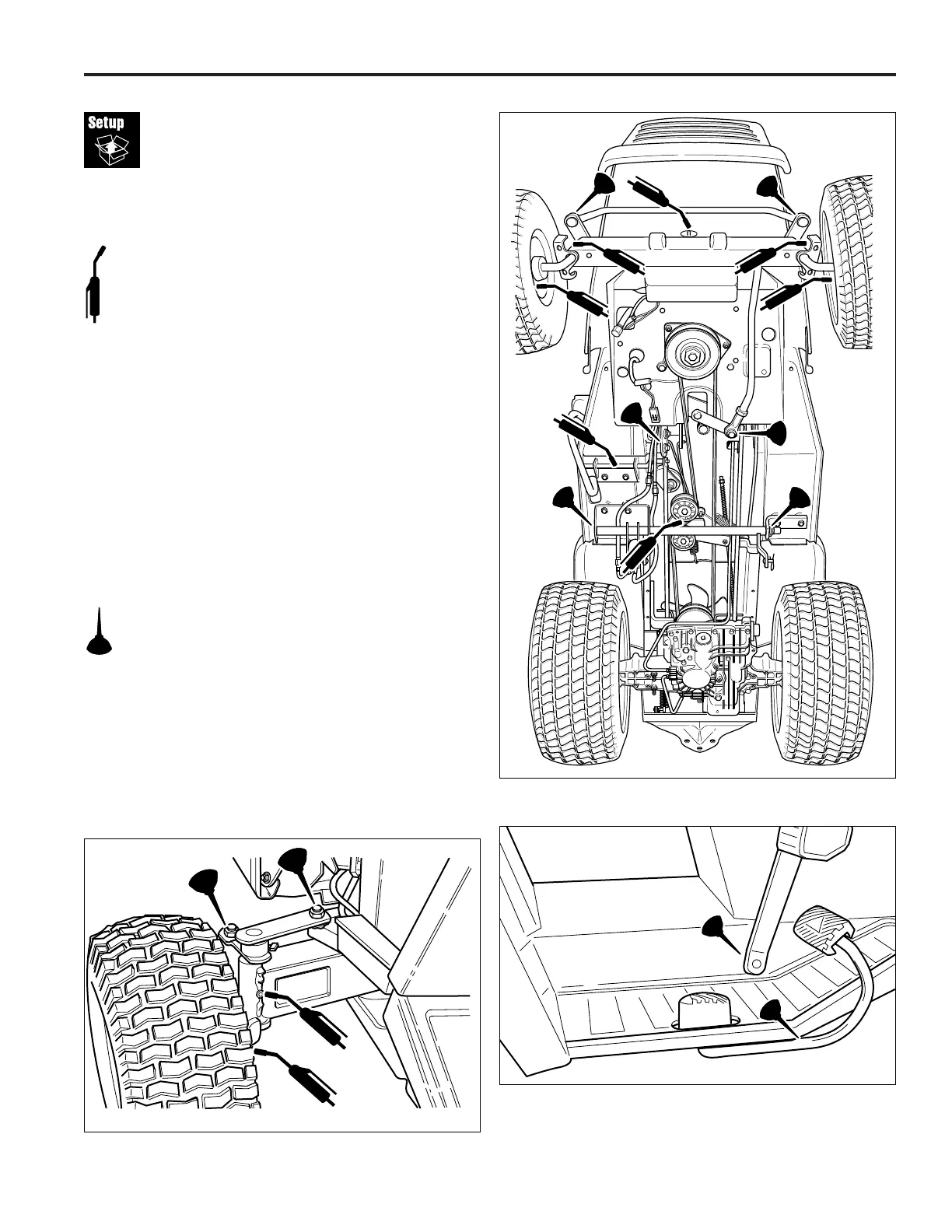

Figure 16. Brake Pedal Pivot Point
Figure 14. Lubricate Steering Linkage
Figure 15. Lubricating the Tractor
