Landlord / 1700 / 2700 Series
1/2001 7
TP 300-2226-02-LL-SMA
Check
Fluid Levels
Fill & Check Engine Oil
1. Add engine oil (engine is shipped dry). Oil recom-
mendations are provided in the engine manual.
Check Transmission Oil Level
NOTE: Lift cylinder should be extended.
1. Locate the clear tube (B, Figure 11) and expansion
chamber (A) under the seat deck. Using a flashlight,
observe the oil level in the clear tube. 1” of oil should
be visible in the clear tube. DO NOT OVERFILL.
Empty space is required in the tube and expansion
chamber for heat expansion.
2. If necessary, remove the plug from the seat deck
(Figure 10), clean the area surrounding the expansion
chamber (A, Figure 11), remove the cap, and add oil.

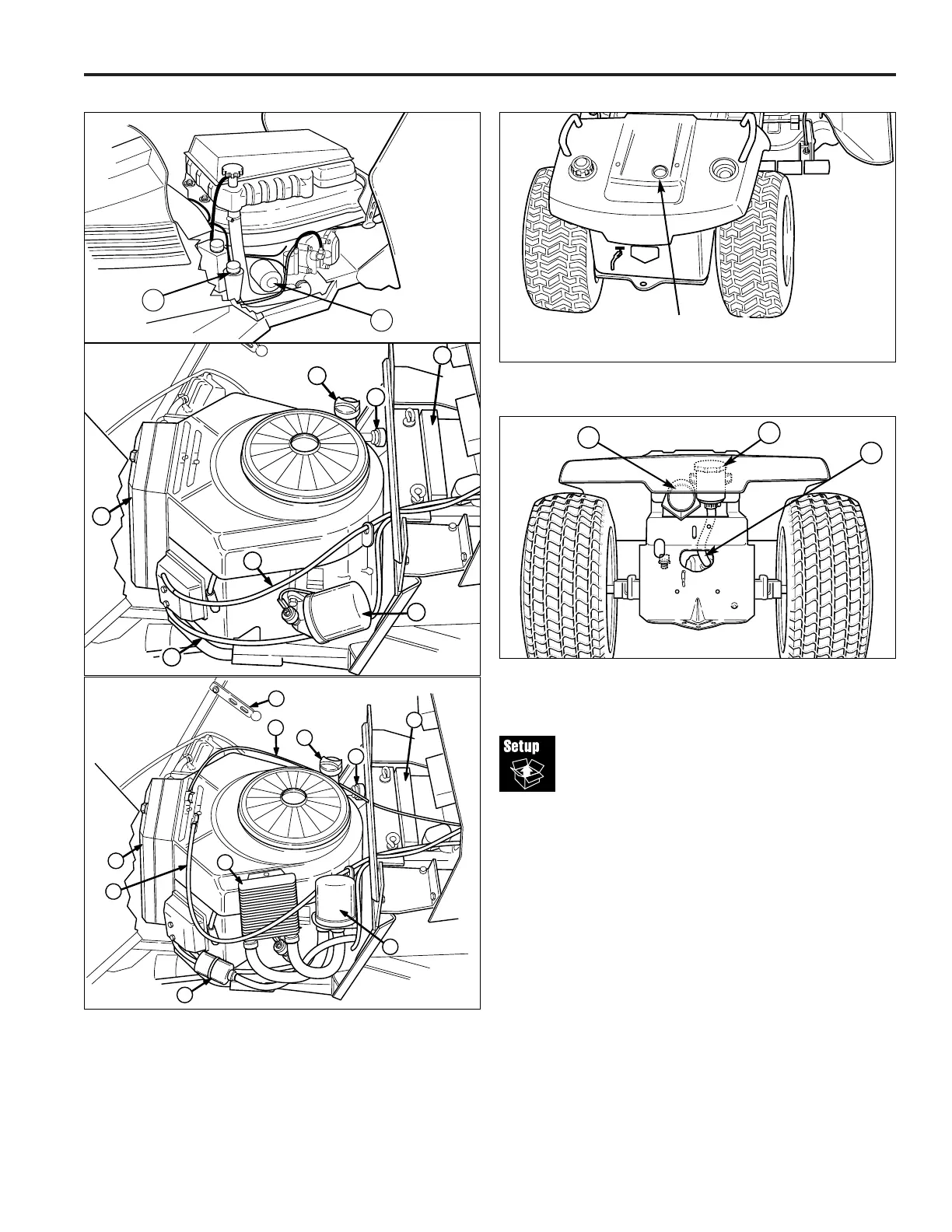

Figure 9. Engine Compartment -
Liquid Cooled (Top) & Air Cooled (Bottom)
A. Battery F. Throttle Cable
B. Oil Filter G. Choke Cable
C. Air Filter H. Hood Strap
D. Oil Fill/Dipstick I. Oil Cooler
E. Fuel Filter
Figure 11. Hydraulic System Oil Filter
A. Expansion Chamber C. Hydraulic Oil Filter
B. Clear Tube
B
A
A
Figure 10. Seat Deck Access Plug
Expansion Chamber
Access Plug
