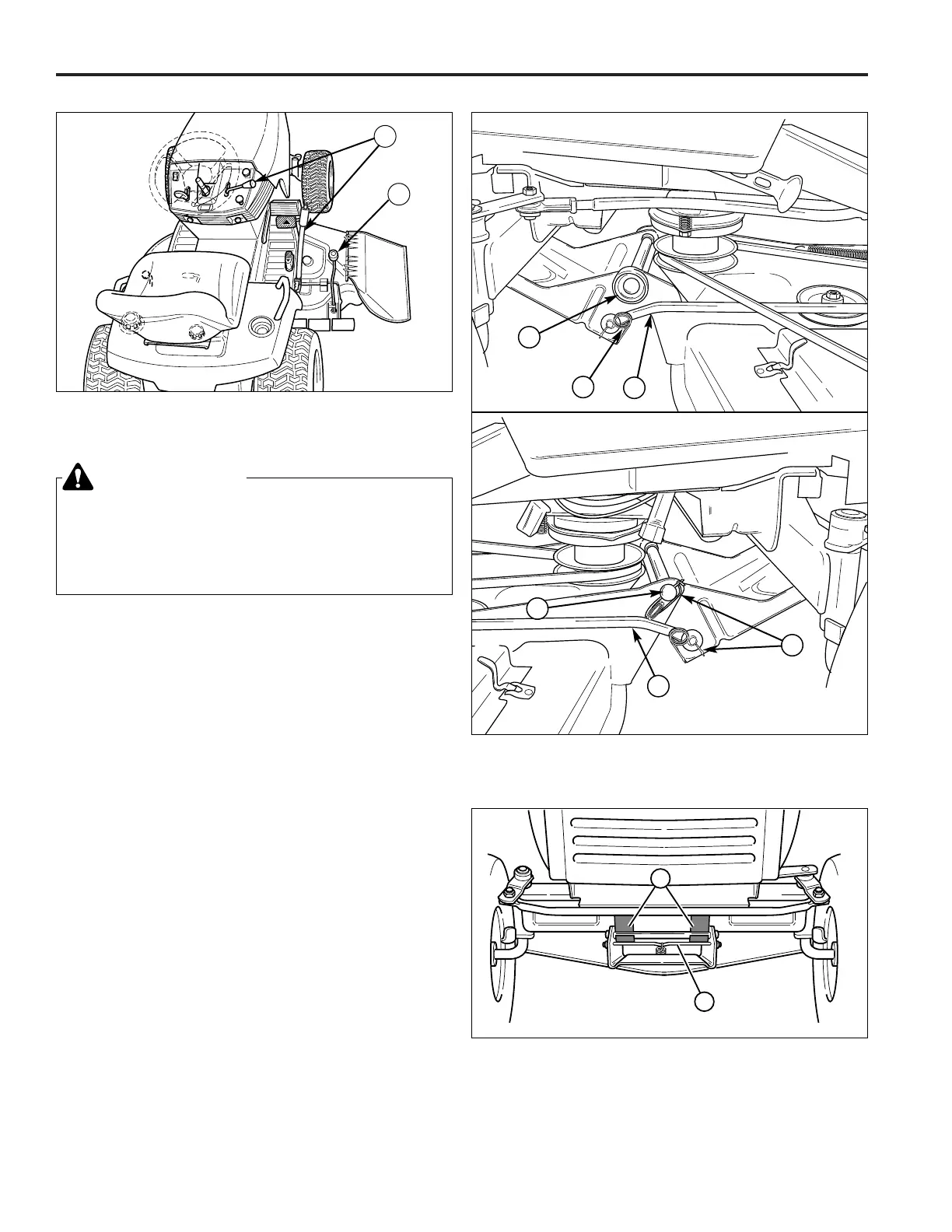

Figure 25. Mower Hitch
A. Tractor Hitch Brackets
B. Spring-Loaded Lever
FIgure 24. Hitch Hardware - 54” Models Only
A. Hitch Rod C. Safety Clips
B. Right Leveling Rod D. Left Leveling Rod
A
B
C
D
C
A
Figure 23. Raising & Lowering Mower
A. Mower Lift Lever
B. Mower Height Adjuster
B
A
WARNING
Engage parking brake, disengage PTO, stop
engine and remove key before attempting to
install or remove the mower.
Muffler and surrounding areas may be hot.
Installing the Mower Deck - All Hydraulic
Lift Models & 44” Manual Lift Models
NOTE: Perform mower installation on a hard, level sur-
face such as a concrete floor.
1. Park the tractor, fully lower the attachment lift, turn
off the PTO switch, turn off the engine, remove the
key, and engage the parking brake. Turn the wheels
fully to the left.
2. Place mower in the lowest cutting position using the
mower height adjuster (B, Figure 23). Slide the
mower deck under the right side of tractor so that the
mower hitch is aligned with front tractor hitch (A,
Figure 25).
54” MODELS ONLY
3. After sliding the mower under the tractor, install the
hitch rod (A, Figure 24) and leveling rods (B, D).
Secure with washers and clips (C).
ALL MODELS
3. See Figure 25. Turn wheels straight. Pull back on
the spring-loaded lever (B) while lifting up on the
mower hitch. Install the mower hitch onto tractor hitch
brackets (A). When properly installed, the spring-
loaded lever should seat fully underneath the brack-
ets (A).
To Next Page
