Simrad 3G User Manual

|
19

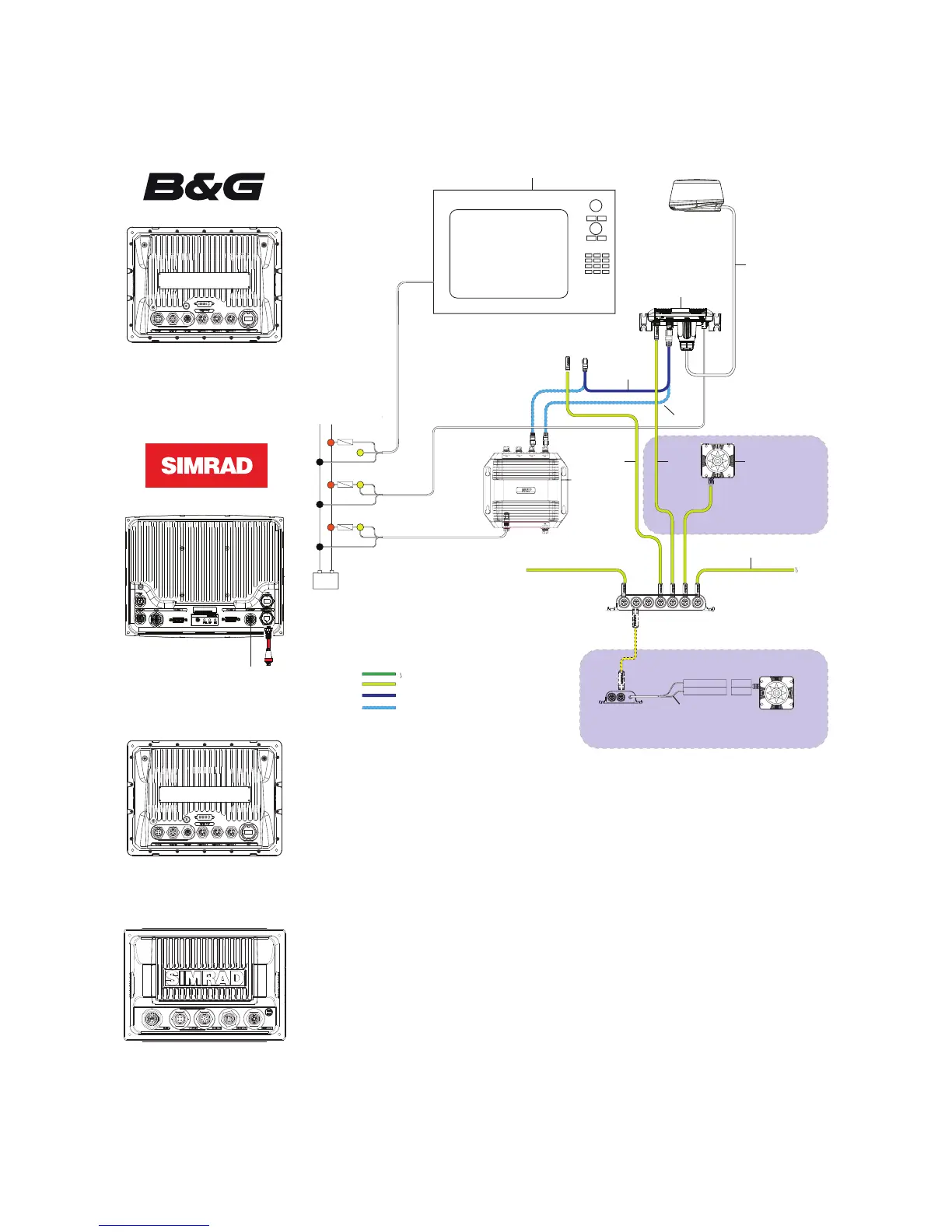

Connect the Broadband radar to your display | Broadband 3G™ Radar Installation Guide
B&G Zeus
Simrad NSO, NSE and NSS, (SimNet network)
+
_
NMEA2000 cables
SimNet cables
Ethernet cable
Ethernet cables if
using NEP-2
FUSE
FUSE
FUSE
7
4
6
5
8
7
9
12
10
3
2
Parts required for
Chart overlay / MARPA
SimNet Network
Brown RX-
White RX+
AT10HD
NMEA083 to SimNet
Converter Heading Only
Cut off 12 Pin
plug to expose bare wires
NMEA0183 10 Hz Heading
(e.g Gyro, Sat Compass)
Alternative: NMEA0183 heading
TX-
TX+
11
1
SimNet
Ethernet
B&G Zeus
SIMRAD NSO, NSE
or NSS MFD
1. B&G Zeus or Simrad NSO / NSE / NSS
2. Broadband 3G™ Scanner
3. Interconnection cable. Ships with a 20 m (65 ft) : Optional 10 m (33 ft) and 30 m (98 ft)
4. RI10 Radar interface box
5. Ethernet cable. 3G™ ships with a 1.8 m (6 ft) cable. The 3G™ can be connected directly to the NET-
WORK port of the display/processor box, or via a Network Expansion Port (9) extra Ethernet cables
required (7). “Ethernet cables” on page 29 for part numbers
6. Ethernet cables required to connect 3G™ via a NEP-2 (9)
7. Ethernet switch NEP-2 (000-0132-031)
The following Parts required for chart overlay and MARPA
8. For B&G Zeus, Simrad NSE, NSO . SimNet cable. (Not supplied)
For SimRad NSS. SimNet to Micro-C cable (Not supplied) see “SimNet - NMEA2000 adapter cables” on
page 29
9. SimNet drop cable. Allows display to receive heading information for chart overlay
10. RC42 Heading Sensor (22090195)
11. AT10HD. For installations with a NMEA0183 heading sensor AT10HD converts NMEA0183 to SimNet /
NMEA2000 (Only heading information is converted)
12. SimNet Network
Zeus
SimNet
Ethernet
NSO
SimNet
Ethernet
NSE
SimNet
Ethernet
NSS
NMEA2000
Ethernet
