Dimension Drawings | Broadband 3G™ Radar Installation Guide

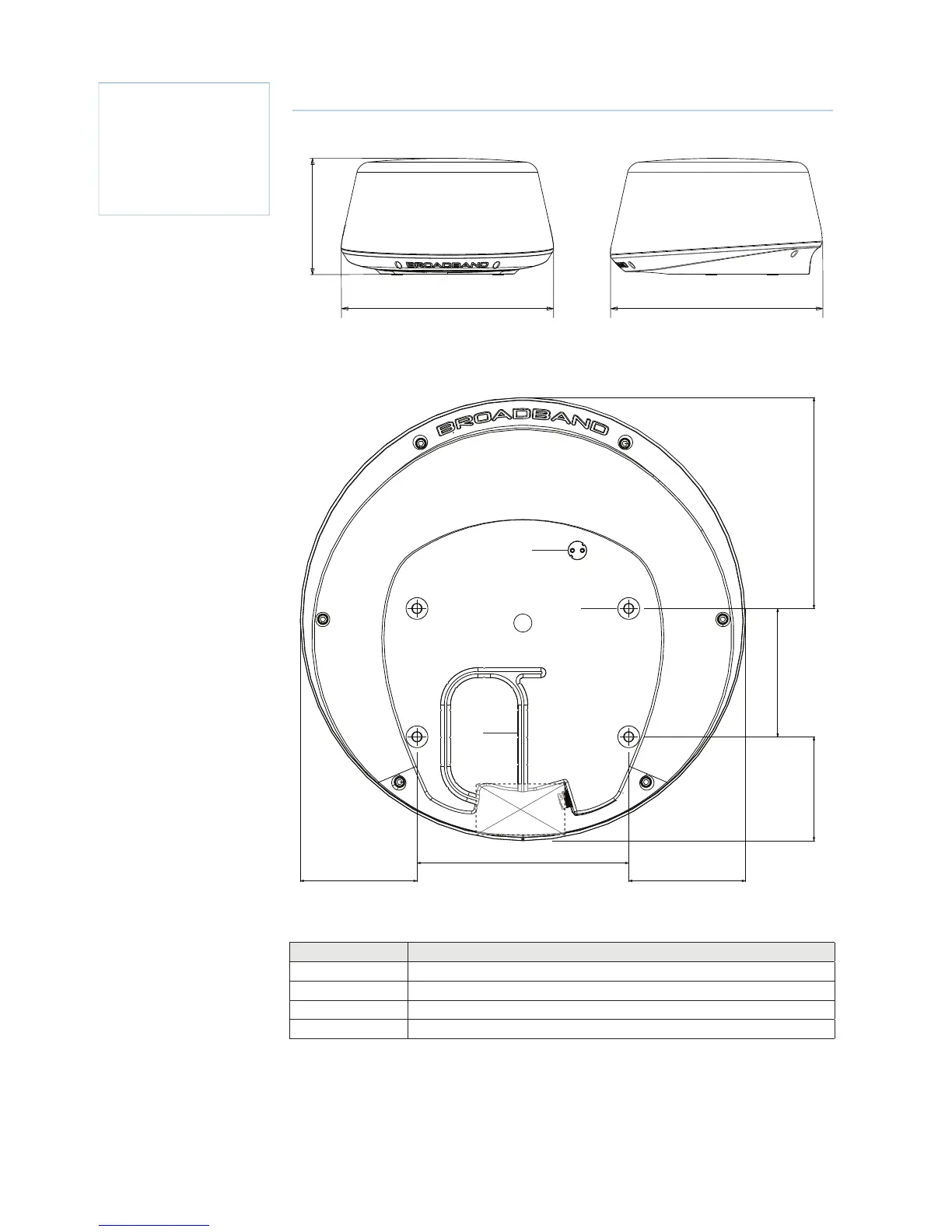

Dimension Drawings
Scanner
280 mm (11.02”)
489.6 mm (19.28”) 488.6 mm (19.24”)
232.5 mm (9.15”)
114.6 mm (4.51”)
128.3 mm (5.05”)128.3 mm (5.05”)
233.0 mm (9.17”)
141.5 mm (5.57”)
C
A
D
B
FRONT
Key Description
A Cable entry area
B Cable retention channel
C Bolt holes x 4 M8 x 30 mm
D Breather
8
