10 |
Installation and wiring | BSM-3 Installation Manual

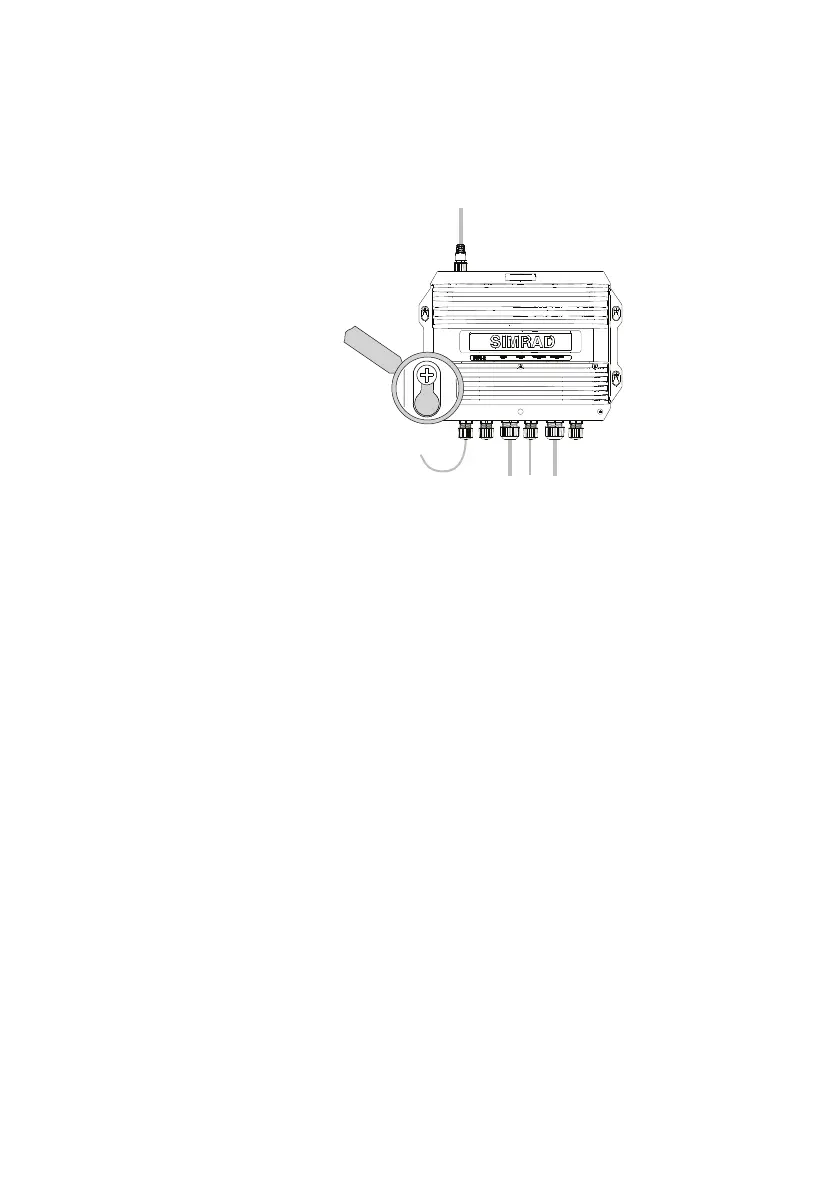

Securing BSM-3 module
Mount the BSM-3 on a vertical surface with the power and
transducer cable connections exiting downwards.
Fasten the BSM-3 by using the 4 stainless steel self tapping screws
included with the unit.
