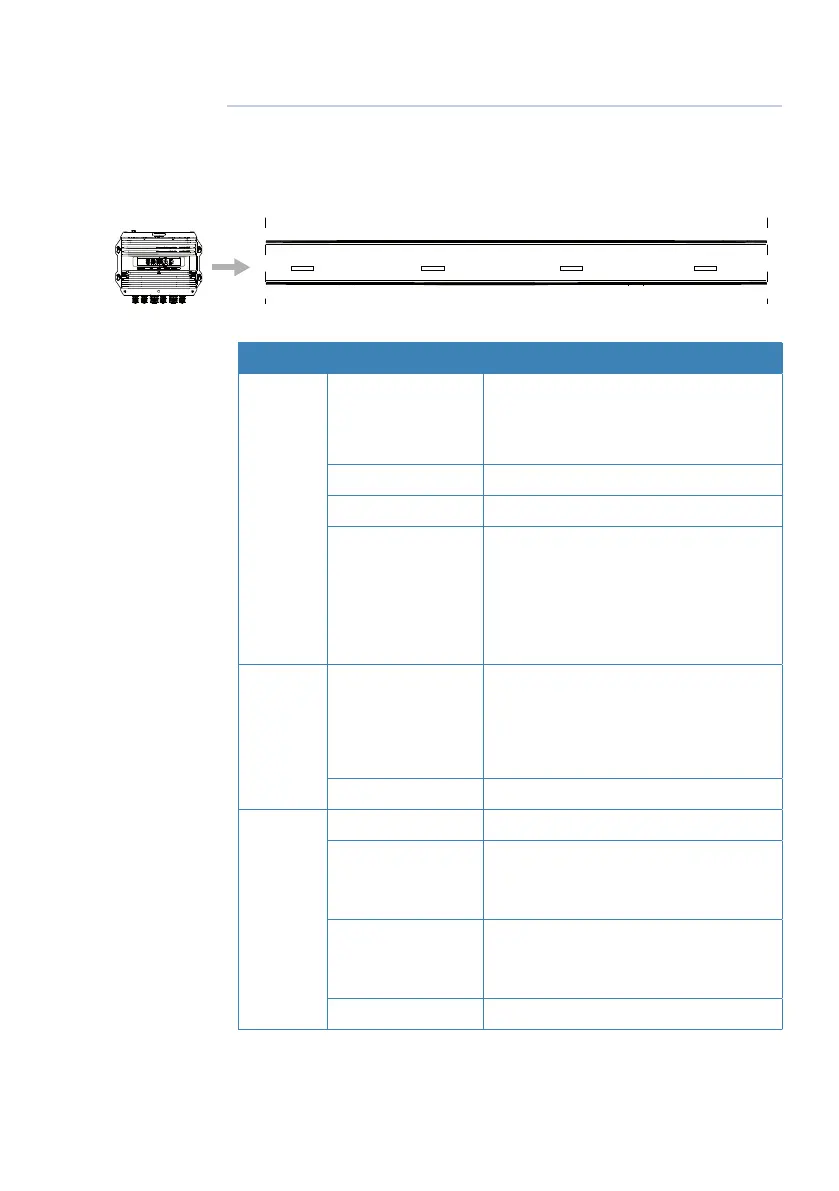

Trouble shooting | BSM-3 Installation Manual
Trouble shooting
POWER NETWORK TRANSDUCER-2TRANSDUCER-1
Ind. Status Description
Power
Off
No power connection
Check power and power cable
Check yellow wire
On - Red System starting
On - Green System operational
Flashing -
Red/Green
Software error or unit
reprogrammed
Restart the unit
If still not ok, contact Customer
Support
Network
Off
No Ethernet connection
Check cable
Verify that remote unit is turned
ON
On - Green Ethernet connected and ok
Trans-
ducers
Off Transducer not connected
Flashing every
0.5 second -
Green
Initializing transmitter
Flashing every
second -
Green
Searching for bottom signal
On - Green System operational
