Transducer connection | BSM-3 Installation Manual
Transducer connection

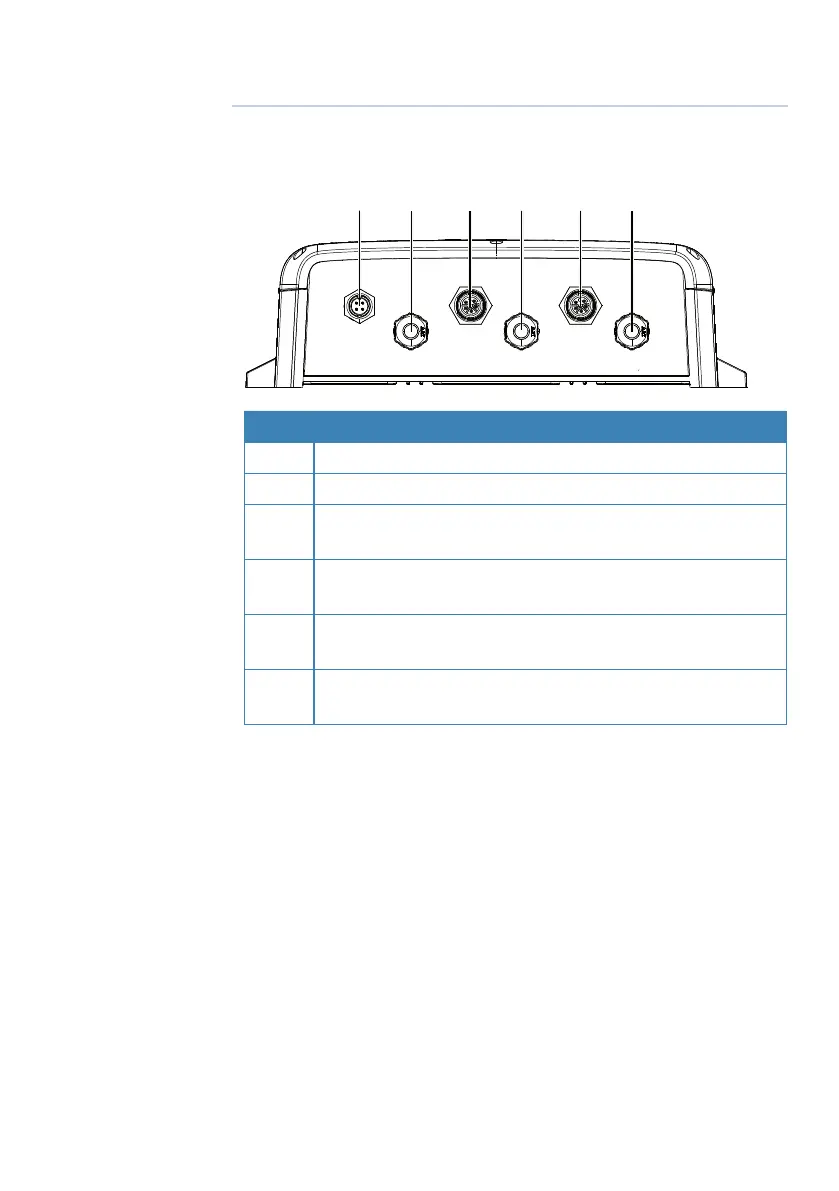

BSM-3 connectors
A B C D E F
TRANSDUCER 1
POWER
SPEED
TEMPERATURE 1 TEMPERATURE 2
TRANSDUCER 2
Ref Description
A Power 12 or 24 V DC (9-32 V DC) 4 pin connector
B Speed Input
C Transducer port 1 : 7 pin blue connector:
Connect medium or high frequency transducers.
D Cable gland for independent temperature input:
Tied to Transducer 1
E Transducer port 2 : 7 pin blue connector:
Connect low frequency transducers
F Cable gland for independent temperature input:
Tied to Transducer 2
3
