Chapter 1-4 CE34/44/54 Introduction and safety summary
Heading is only available if a compass was detected at start-up.
Your present position will automatically be updated within a few min-
utes. When ready, the ship symbol on the chart will flash, the position
coordinates will stop flashing, and the *** will be replaced by actual
course and speed figures.

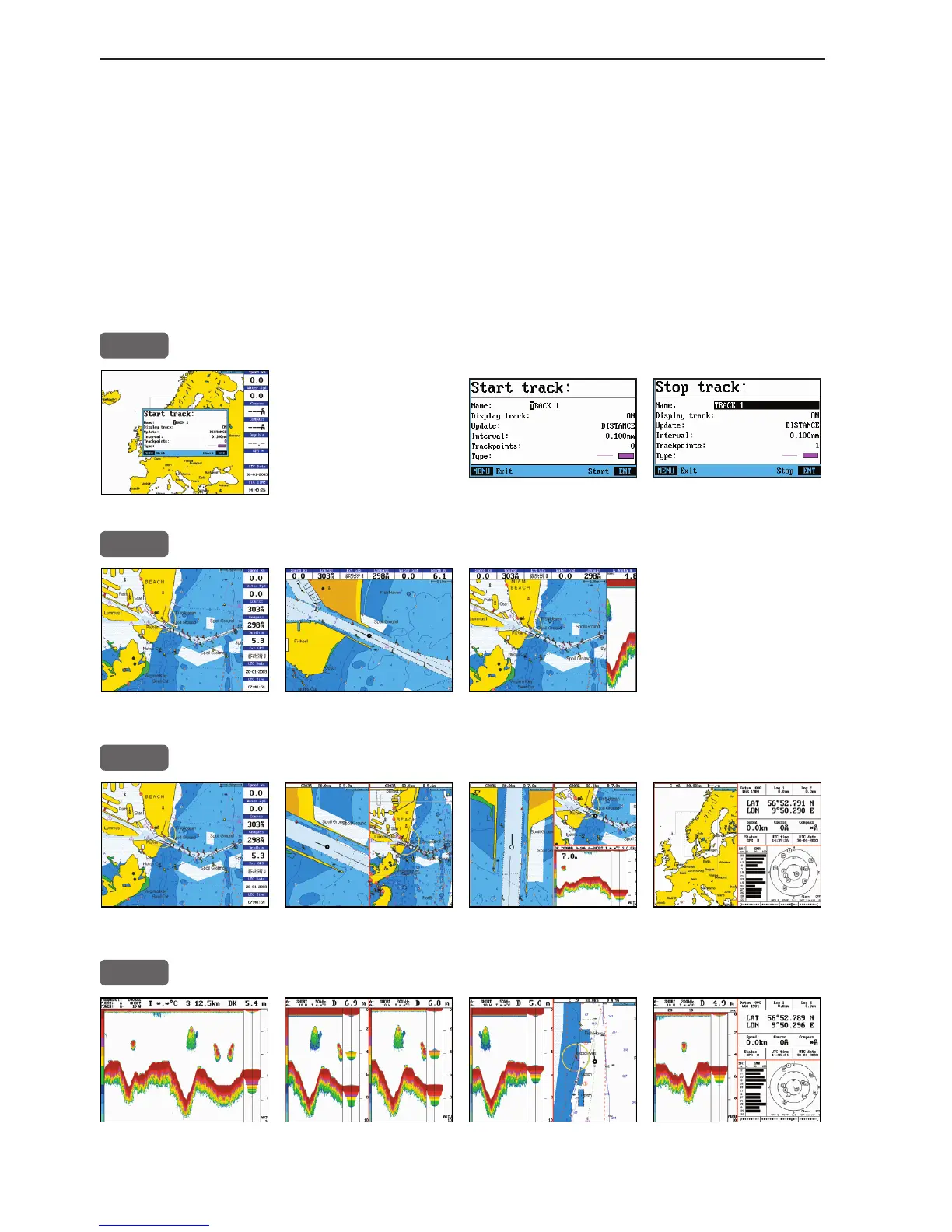

1.3.1 Dedicated function keys
TRACK
Short press will activate:
CHART
Short press will toggle between:
Chart + data field placed either at the right side or at the top, and echo data.
CHART
Long press will toggle between:
Chart in full screen Dual Chart Custom screen1 Custom screen2
ECHO
Long press will toggle between:
Echo + A-scope Dual frequencies Custom screen1 Custom screen2
(CE44/54)
