Chapter 5-12 CE34/44/54 Pilot menu & navigation examples

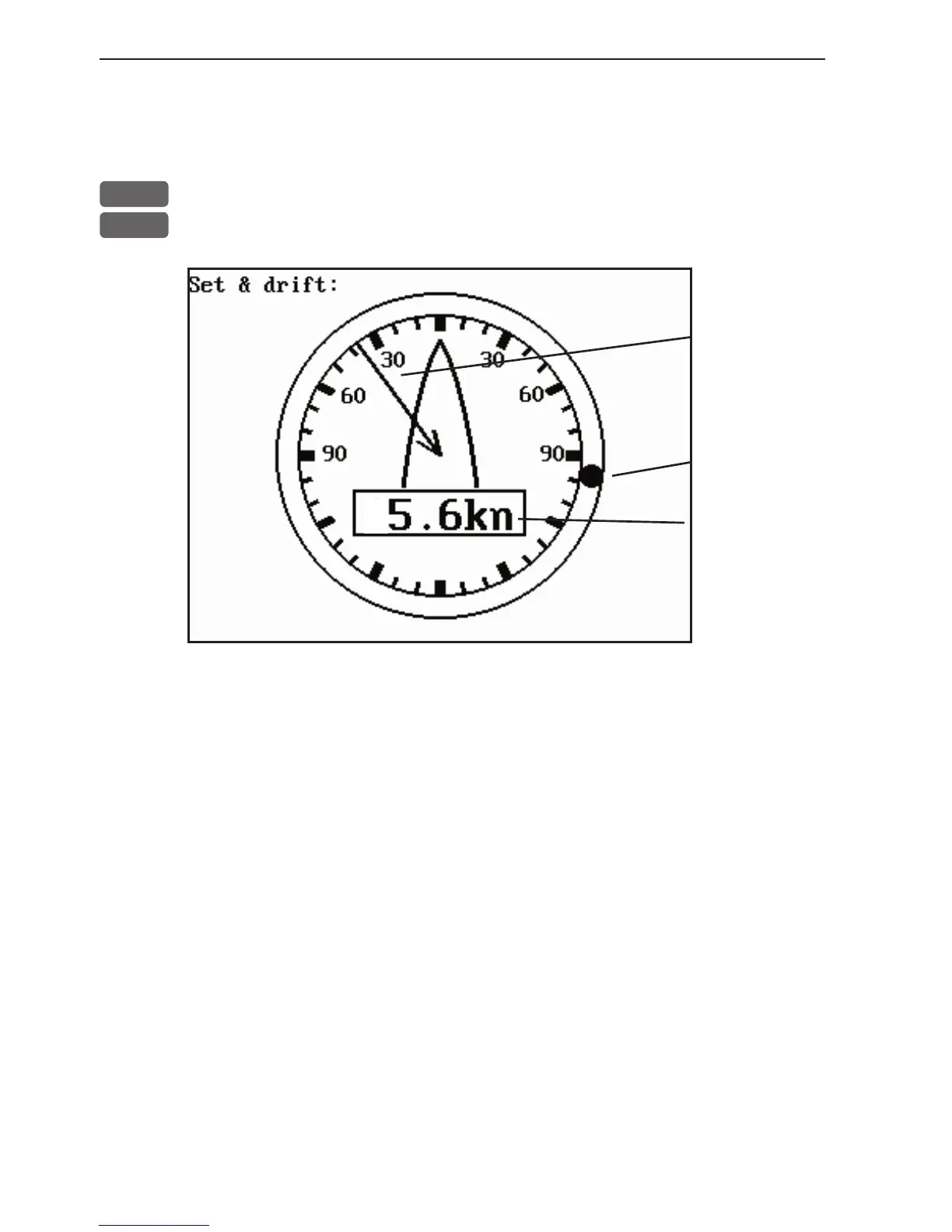

5.7 Set & Drift display
The readings rely on data from external log and compass.
MENU
Call up the menu bar, and...
3,6
load the Set & Drift display
Relative
direction.
True
direction.
Speed.
The Set & Drift display will show how fast the current is moving
in knots; in what direction (true) it is moving and what direction in
relation to the vessel (relative).
To obtain information on actual and mean speed, velocity and water
speed - see the Trim & Highway display in section 5.6.
