CP44/54 Pilot menu & navigation examples Chapter 5-5
5.2.1 Highway display when navigation mode is active
MENU
Call up the menu bar, and...
3,1
load Highway display

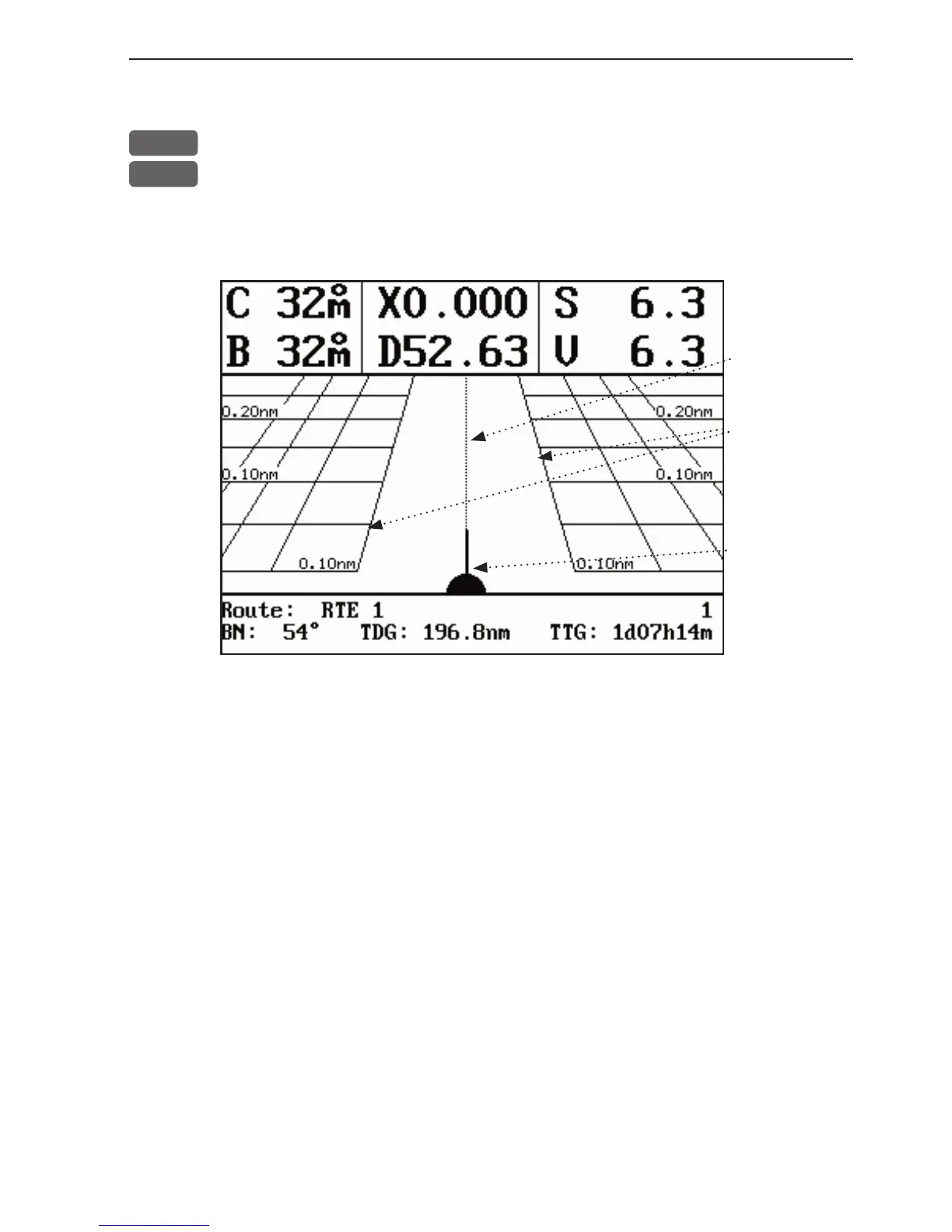

With navigation mode active, the highway display will provide a
graphical steering display:
Intended
track
between two
waypoints.
XTE alarm
lines - refer
to sec.8.4 for
alarm setup.
Ship’s posi-
tion and
course in
relation to
intended
track.
C: Course over ground
X: XTE - Cross-track-error
S: Speed over ground
B: Bearing to approaching point
D: Distance to approaching point
V: Speed towards point
Route: Name/number of active route and aproaching routepoint
BN: Bearing to next point
TDG: Total distance to go to end of route
TTG: Total time to go to end of route
