CP44/54 Pilot menu & navigation examples Chapter 5-13
5.8 Pilot custom screens

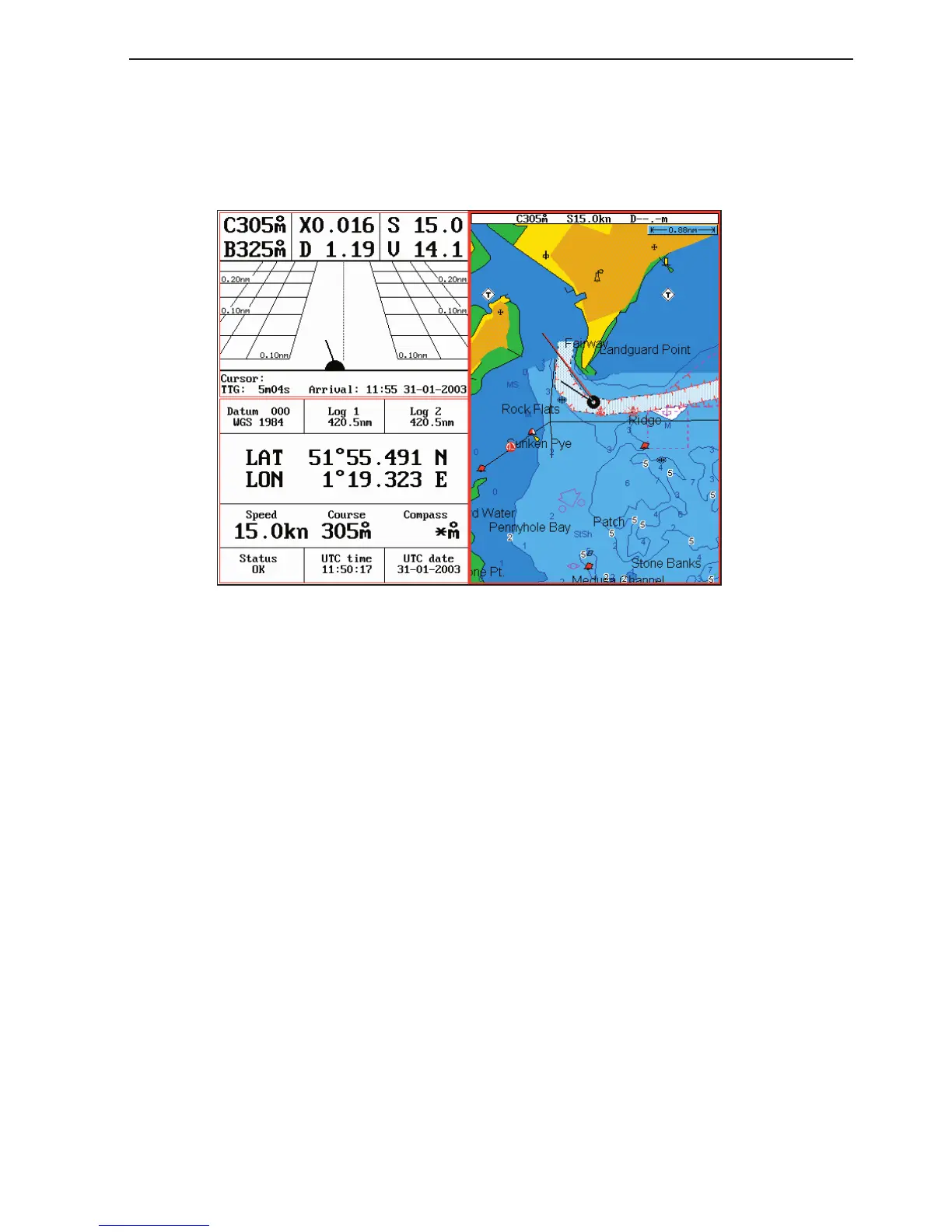

The two custom screens in thepilot menu consist of multiple window
combinations e.g.:
The displays presented in the example above are the default displays
for Custom screen 1 under the PILOT menu.
Top left quarter window shows the Highway display, which can be
exchanged with a different display from the pilot menu, either by
single press on the [PILOT] key which will toggle through all the
displays available from the pilot menu, or via the menu.
Bottom left quarter window shows the Position display, which can be
exchanged with any display that will fit into a quarter window.
Right half screen shows the Chart display, which can be exchanged
with a different one in same size window, or you can change the
window combination from half to two quarter windows.
These custom screens can actually have several displays presented
from the pilot menu. However, when the top left window is active
and you toggle through the available displays from the pilot menu,
the sequence will skip the displays already presented on the screen,
as they can not appear twice on the same screen.
See section 2.1.2 how you go about changing the displays.
