Feedback unit mounting
Attached to the direct drive is a mounting bracket for the rudder
feedback unit. The feedback unit and transmission link with
mounting screws are supplied with the direct drive.
- Set the rudder to amidships position.
- Clamp the feedback bracket to the direct drive with a 90°
angle to the output lever.
- Set the feedback transmitter lever to center position by
means of the alignment marks.
- Attach the feedback unit to the bracket by using the supplied
screws. With the rudder in amidships position make sure the
transmitter lever and the output lever is in parallel and
pointing in the same direction.
- Attach one end of the transmission link to the output lever.
- Attached the other end to the transmitter lever slot and make
sure the link is in parallel with the mounting plate.
Transmission link
Outer slot
Transmitter lever
Alignment marks
Output lever
Rudder
feedback
bracket

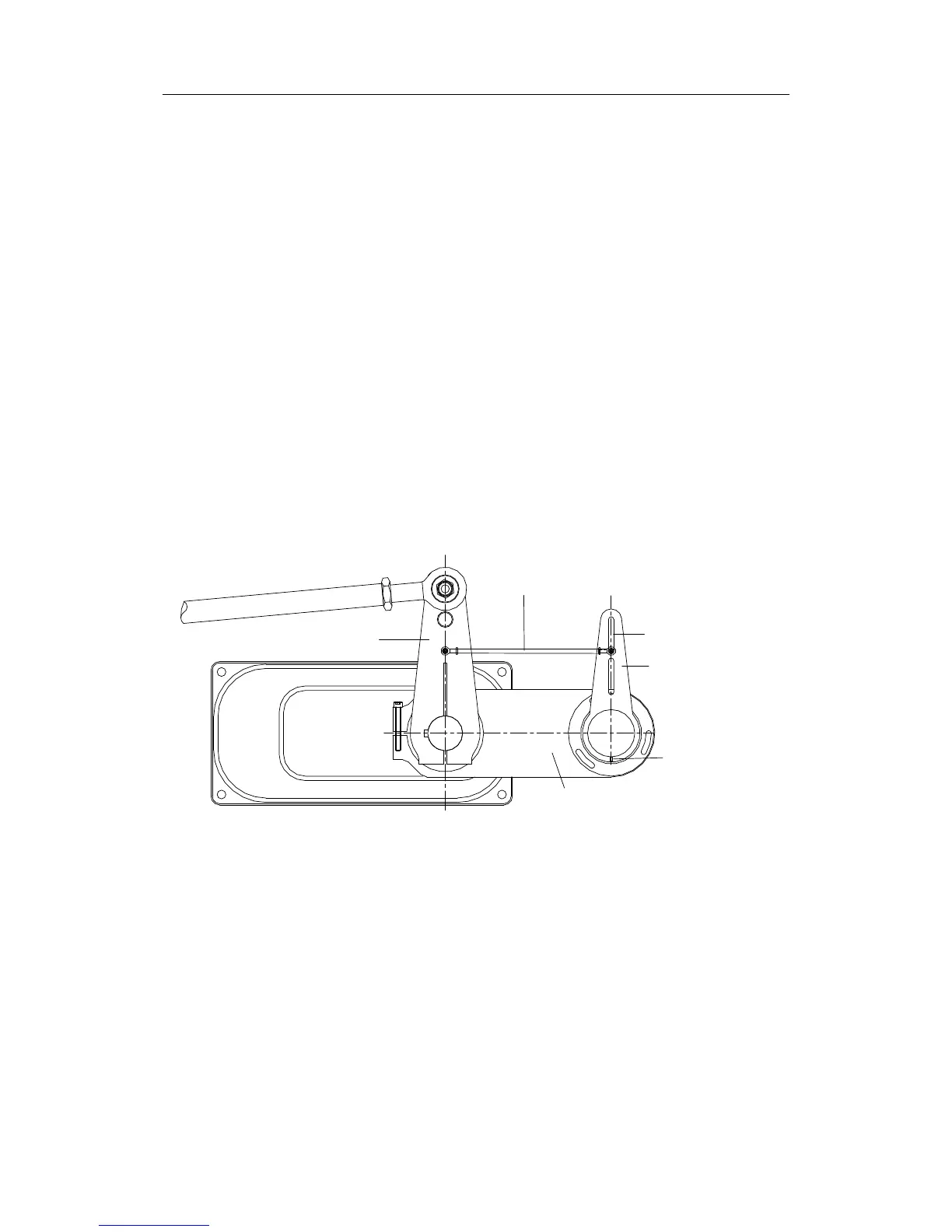

Figure 3-4 Feedback unit mounting
