3.2 Electrical connections
The connection of the Simrad direct drive to the autopilot
computer is quite simple. The two 0.75 mm² red and black wires
for the clutch have to be connected to the plus and minus of the
autopilot clutch Drive Engage terminals. This will make sure
that when the autopilot user engages the autopilot on the control
unit, the clutch will engage and allow the autopilot motor to
drive the steering system. The two heavy 2 mm² red and black
wires have to be connected to the Solenoid – Motor terminals.

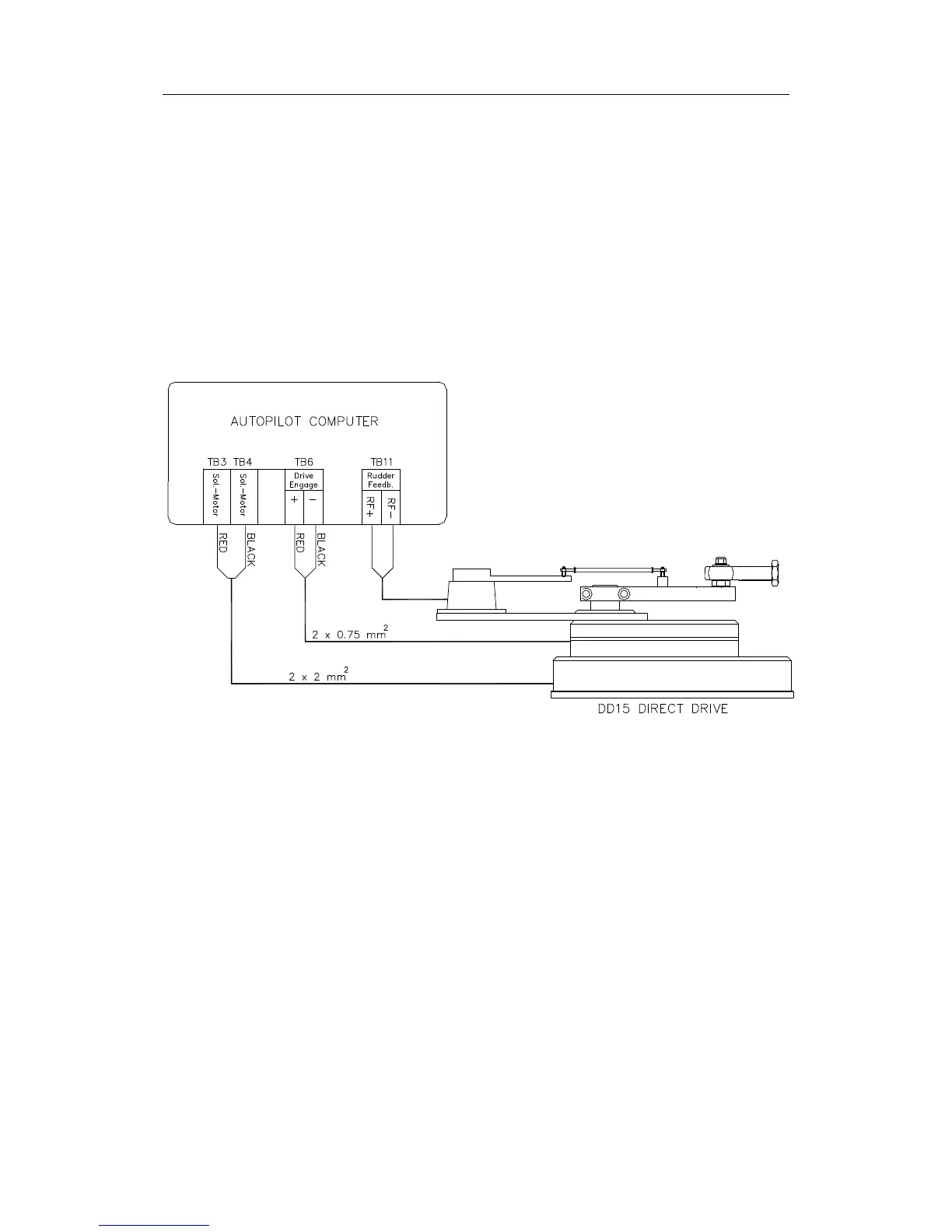

Figure 3-8 Autopilot connection
