Installation
20222303 / A 17
Direct drive in front of pedestal
When sufficient space around the rudder shaft isn’t available, the
direct drive can be setup to drive the rudder via the pedestal.
An extra extended output lever with 165 mm centers can be
fitted to the pedestal down-shaft to be driven by the direct drive.
The lever geometry between the drive and pedestal is a
parallelogram of 165 mm. The pedestal offset angle has to be
respected, so the whole parallelogram is rotated around the
pedestal center with the offset angle.
8
°
6
4
°
6
4
°
8
°
3
6
°
1
6
5
1
6
5
1
3
0
top view

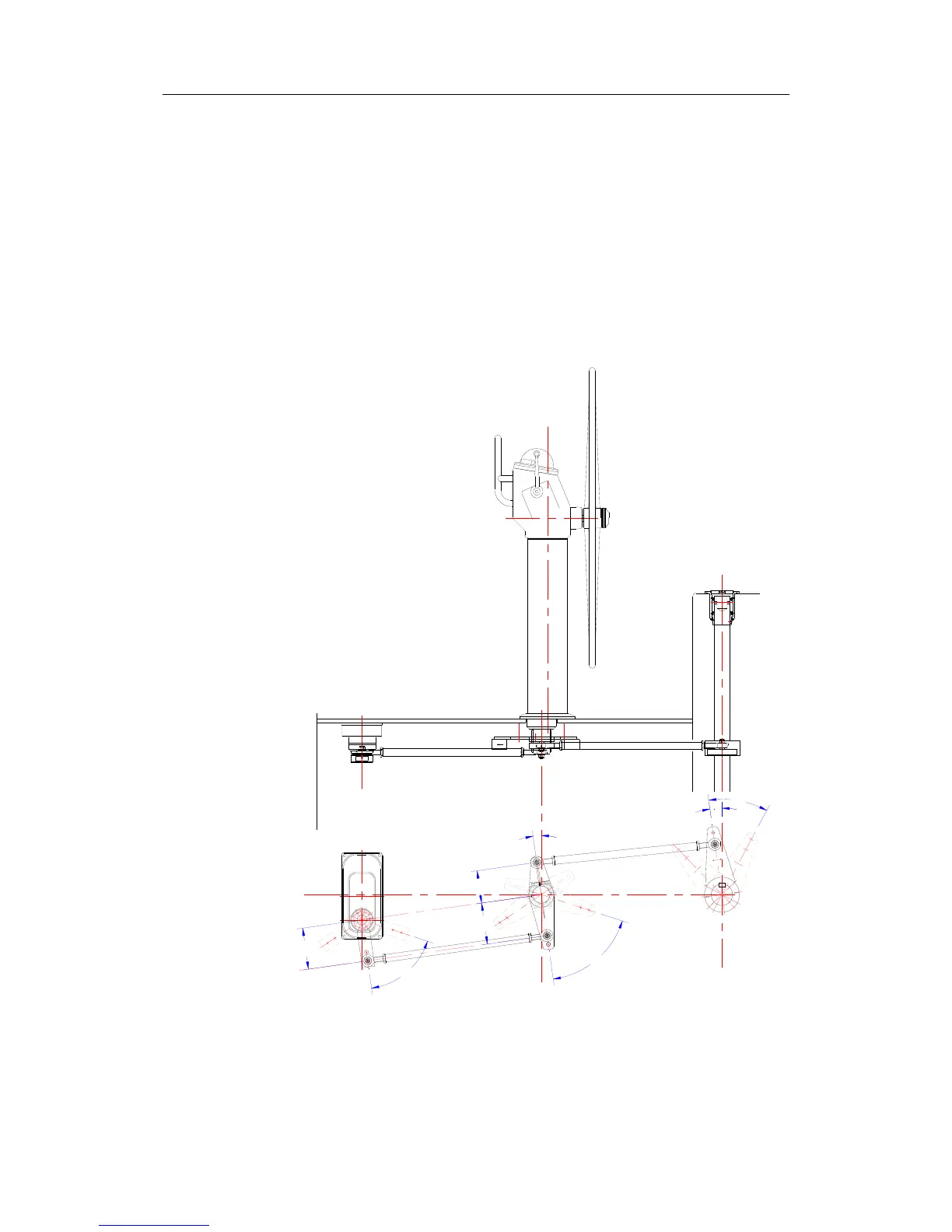

Figure 3-7 Drive unit in front of pedestal
