Technical Specifications
20222303 / A 23
M10
if no key is present,
cross below box
for locking bolts
include
2 off M10
locking
bolts
specify draglink lenght
200-300mm (DL2030)
300-400mm (DL3040)
400-500mm (DL4050)
500-600mm (DL5060)
custom lenght
........mm
(please cross the appropriate box)
special requirements / comments
16
The direct drive comes as standard with a 16mm pin in the 165 mm centers. The pin
can be changed over to the 130 mm centers, but must be secured with LOCTITE.
(standard)
Version 1.2
Max. diam. D
250
TLJ050 TLJ075 TLJ100 TLJ125
bore diameter = ...... mm
please select the tillerarm
by crossing the correct box
bore diam.
tiller arm cross box
- 50 mm TLJ050
51-75mm
TLJ075
76-100mm
TLJ100
101-125mm
TLJ125
tiller pin
to include a tiller pin
please cross below box
include TLJPIN16
specification of tiller arm locking mechanism
b
h
a°
if a key is present,
specify dimensions
key width b =
key height h =
key angle a =
no keyway
locking
bolt
Direct drive type I operating
centres in mm valid for 72°
(2x36°) rudder travel.
output
centers
offset
distance
tiller
centers
130 106 200
165
127
250
rudder
shaft
key
specification of tiller arm
20
200
273
60
4xM10
140
2pcs M4

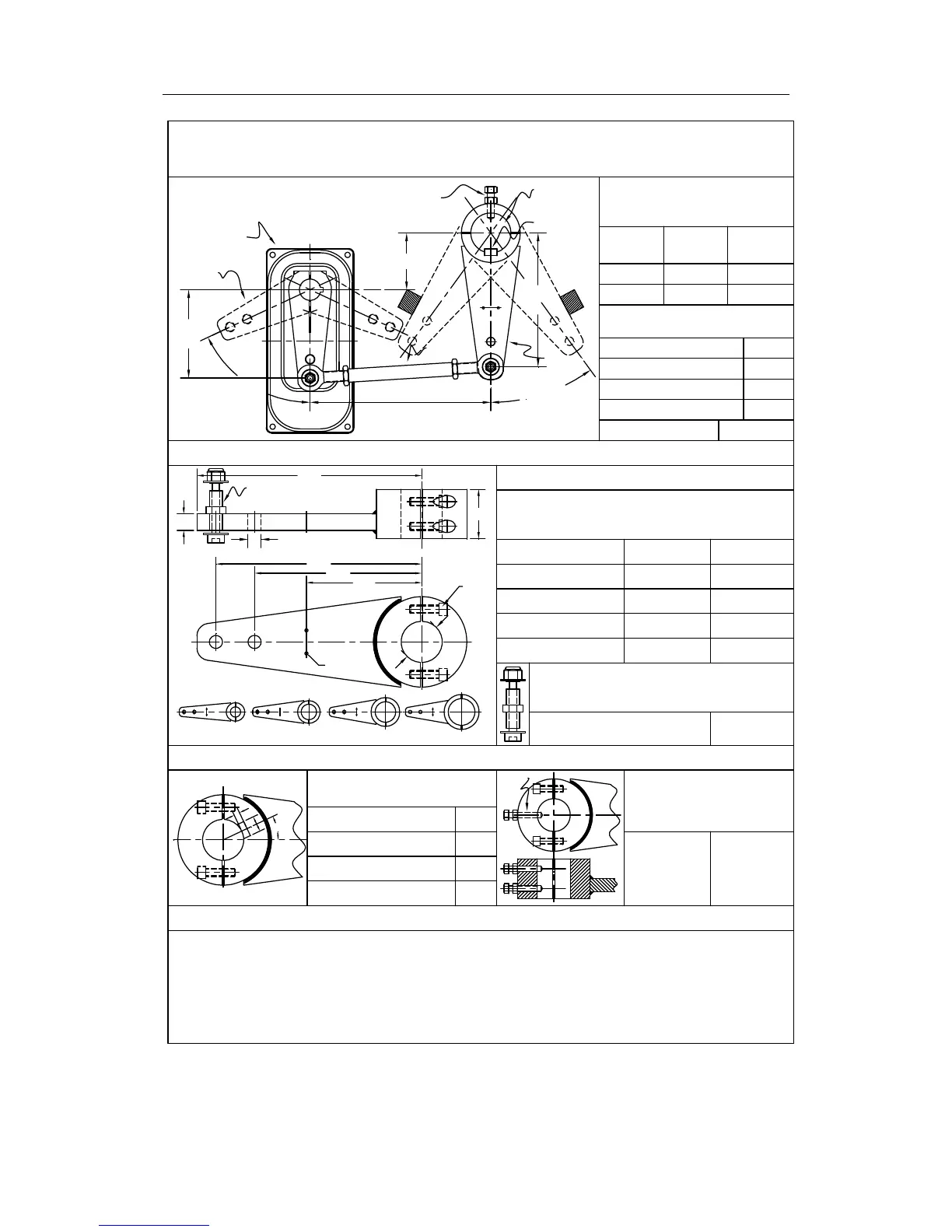

DIRECT DRIVE SPECIFICATION FORM
min.300-max 2000 mm
tiller
center
output
centers
offset
36°(2x)
65°(2x)
direct
drive
output
lever
draglink
tiller
arm
To Next Page
