Wiring | E5024 ECDIS Installation Manual

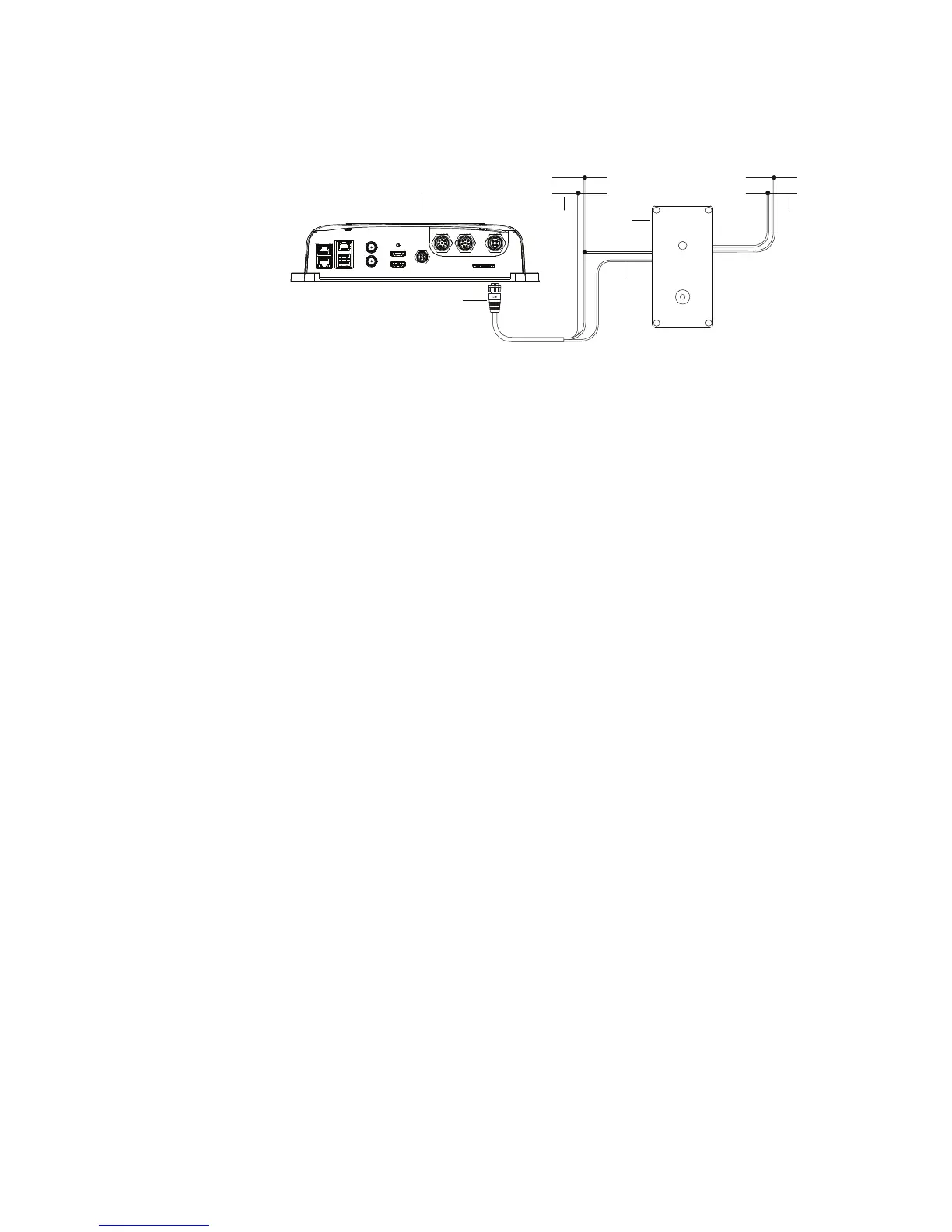

External alarm
The ECDIS CPU in the E5000 output alarms in the following way:
• The ECDIS CPU pulls the blue wire to GND (O V)
1
2
4
5
63
24 V
NEG
24 V
NEG
SIMRAD
ALARM RESET
1 E5000 processor
2 Powerplug E5000
3 Main power E5000
4 E0102 Alarm panel
5 Blue alarm pin E5000
6 E0102 separate power
For wiring details for the E0102, refer to the included manual.
¼ Note: The E5000 processor and E0102 alarm panel must have separate power supplies to be
compliant.
