Dimensional drawings | E5024 ECDIS Installation Manual
Dimensional drawings

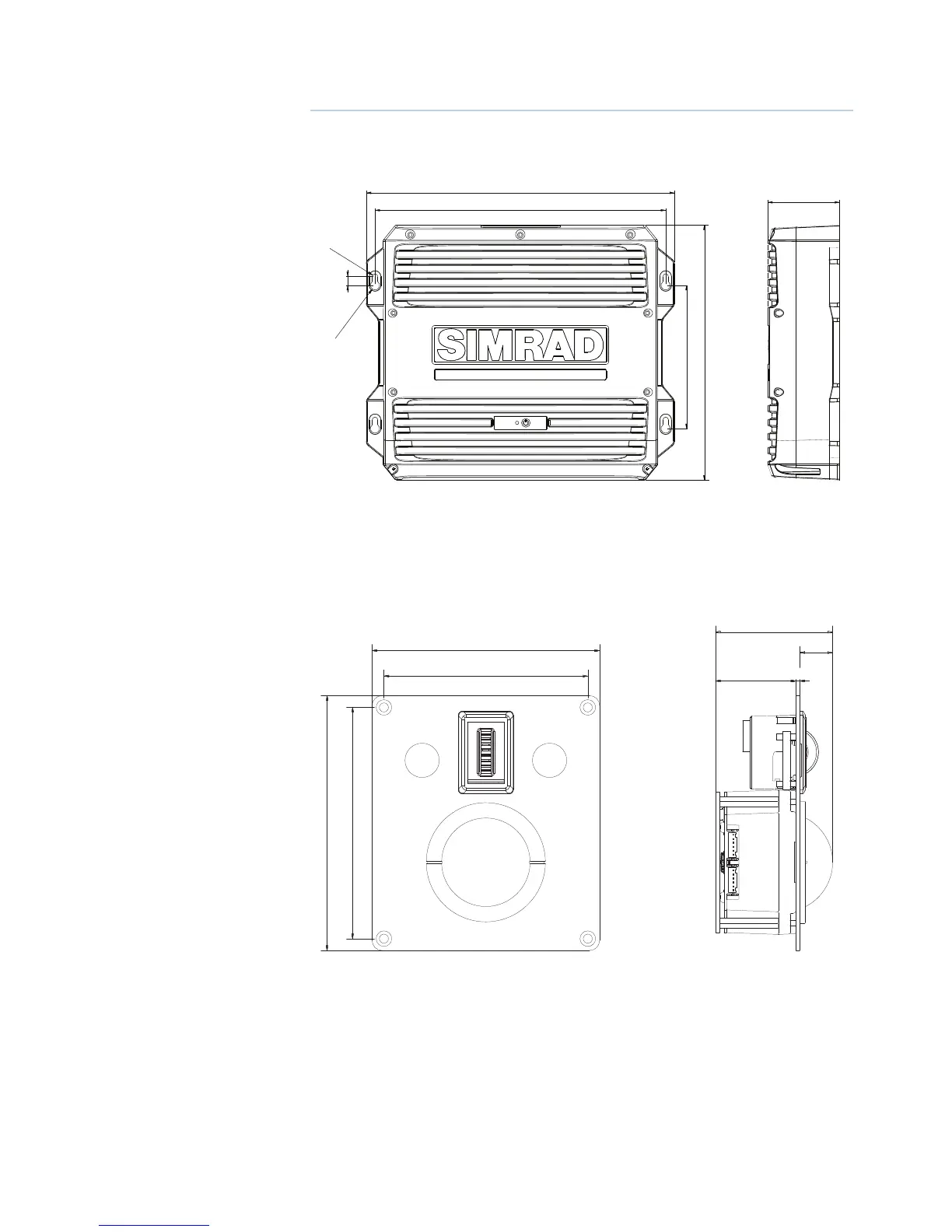

E5000 Dimensional drawings
232 mm (9.14”)
281 mm (11.05”)
R=2.5 mm
(0.1”)
R4.2 mm
(0.17”)
8.0 mm (0.31”)
66 mm (2.58”)
265 mm (10.42”)
130 mm (5.13”)
¼ Note: The dimensional drawings for the monitor and alarm panel are found in a separate
document.
LTSX50N8 trackball dimensional drawings
116,00 mm
104,00 mm
118,00 mm
130,00 mm
59,70 mm
16,70 mm
2,00 mm41,00 mm
