ECDIS Software setup | E5024 ECDIS Installation Manual
Backup/Restore conguration
From the Backup/Restore configuration you are able to backup/restore all the configurations
done to the system. To be able to create a backup you need a USB memory stick or an SD
Card.
Copy error logs
For information refer to the E5024 Operator Manual.
Alarms settings
Grounding check settings
The Grounding check function is used to set a guard zone ahead of the own vessel to warn
you in case dangerous or caution objects are found inside the guard zone.
¼ Note: A Navigational caution will appear on the screen if dangerous or caution objects are
found within the guard zone.

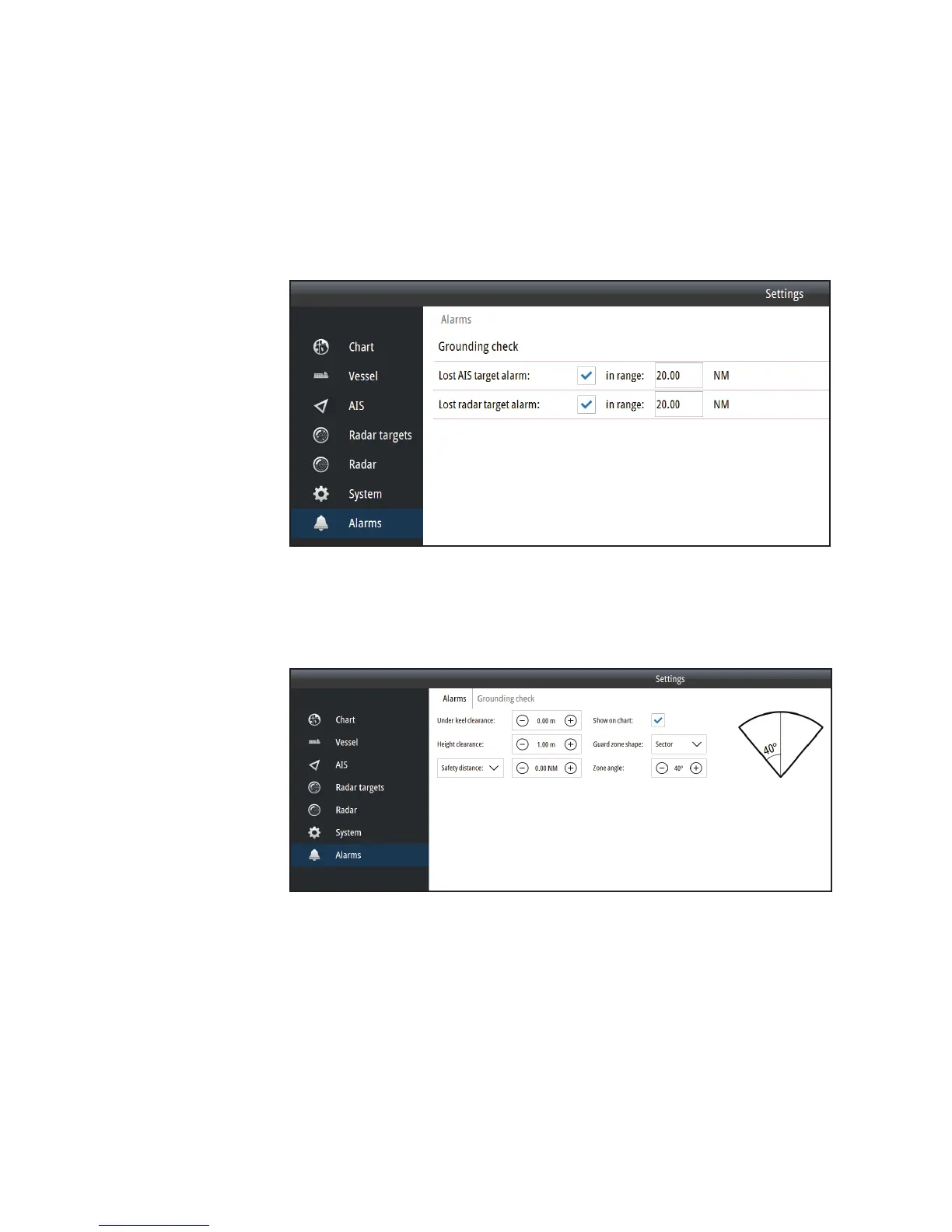

Configuring the settings:
• Set a value in the Under keel clearance field, specifying the minimum acceptable margin of
depth between the keel and an underwater obstruction
• Set a value in the Height clearance field, specifying the height your vessel needs to pass
under an overhead object crossing its path
¼ Note: All depth and height values are related to the sounding and vertical datums of the
chart under the own vessel. Tides ARE NOT taken in consideration.
