E5024 System overview | E5024 ECDIS Installation Manual
E5024 System overview
The E5000 Processor features two fast quad core CPUs, and dual monitor outputs to drive two
displays with independent information.
Each quad core CPU operates independently, one running ECDIS software, the other running
Navico’s NSO evo2 multifunction display software.
Connectivity options for data are broad, with an internal ethernet switch with three ports,
NMEA 0183 transmit and receive ports, and a connection point for a NMEA 2000 compliant
data bus.
Synchronizing the ECDIS CPU with a backup ECDIS device constitutes a PLECDIS system
(PaperLess ECDIS). Integration is possible with Navico ARGUS radar.
The Simrad M5024 monitor offers a low profile, high brightness solution for displaying
video from a variety of sources. M5024 monitors are color calibrated according to ECDIS
requirements. For installation and setup refer to the M5000 Series User Manual.
Separate documents are delivered for the NSO evo2. Refer to this documentation for
installation, configuration and operation of the NSO evo2 system. The manuals can be
downloaded from the product site on http://pro.simrad-yachting.com

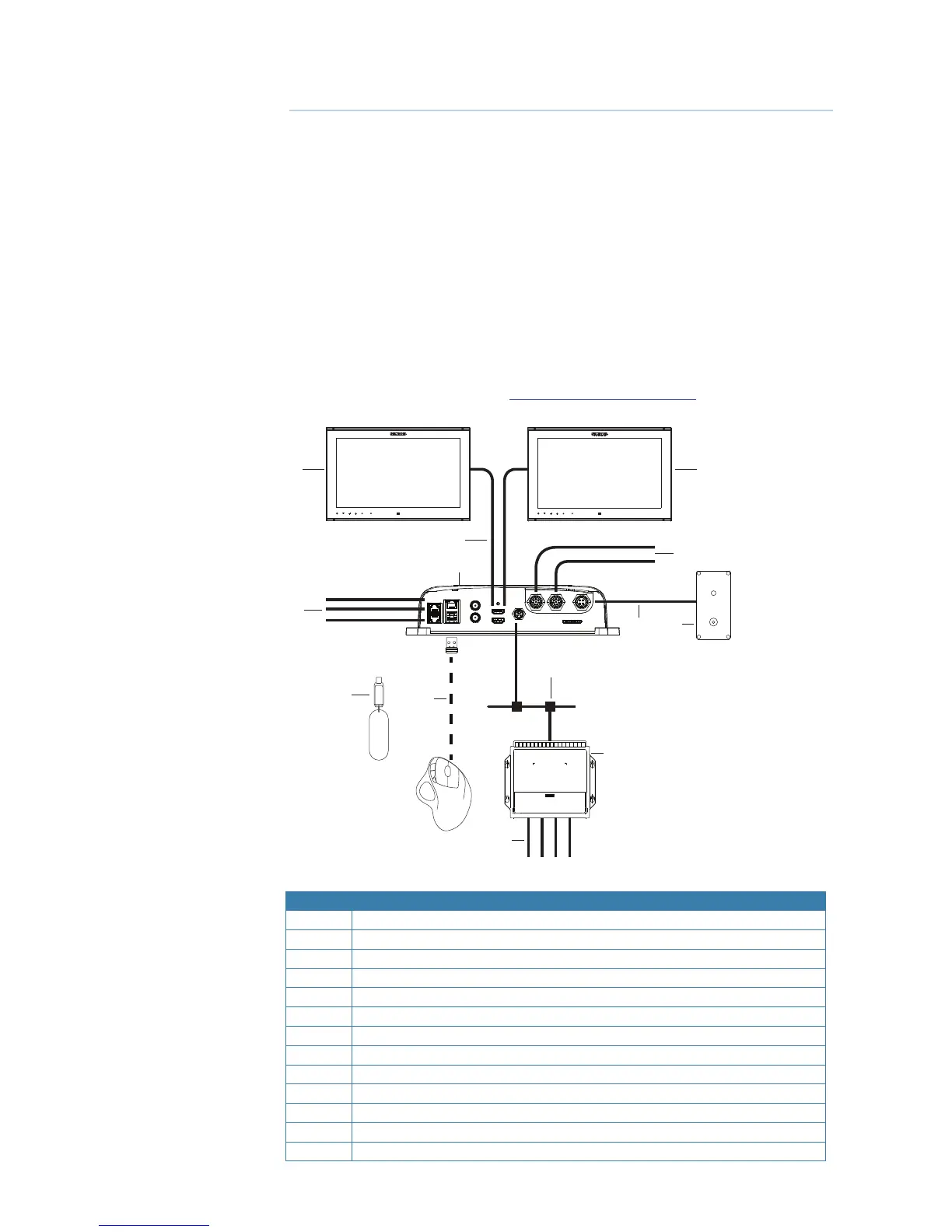

SIMRAD
ALARM RESET
1
3
6
4
5
9
87
10
12
11
2
13
Item Description
1 M5024 – ECDIS CPU via HDMI 1 OUT
2 MO16/19/24, M5016-24 or other – NSO CPU via HDMI 2 OUT
3 HDMI cables
4 ECDIS Processor – containing ECDIS and NSO CPUs
5 NMEA 0183 – 3 ports for ECDIS CPU, 1 port for NSO CPU
6 Ethernet ports - 2x PoE, 1x standard
7 External alarm (Blue wire) on E5000 power cable
8 E0102 alarm panel – ECDIS CPU only
9 M570 wireless trackball and USB receiver
10 NMEA 2000 network
11 SI80 NMEA 0183 expansion module
12 NMEA 0183 HS ports for sources such as position, heading etc.
13 NavStick
