24 |
ECDIS Software setup | E5024 ECDIS Installation Manual

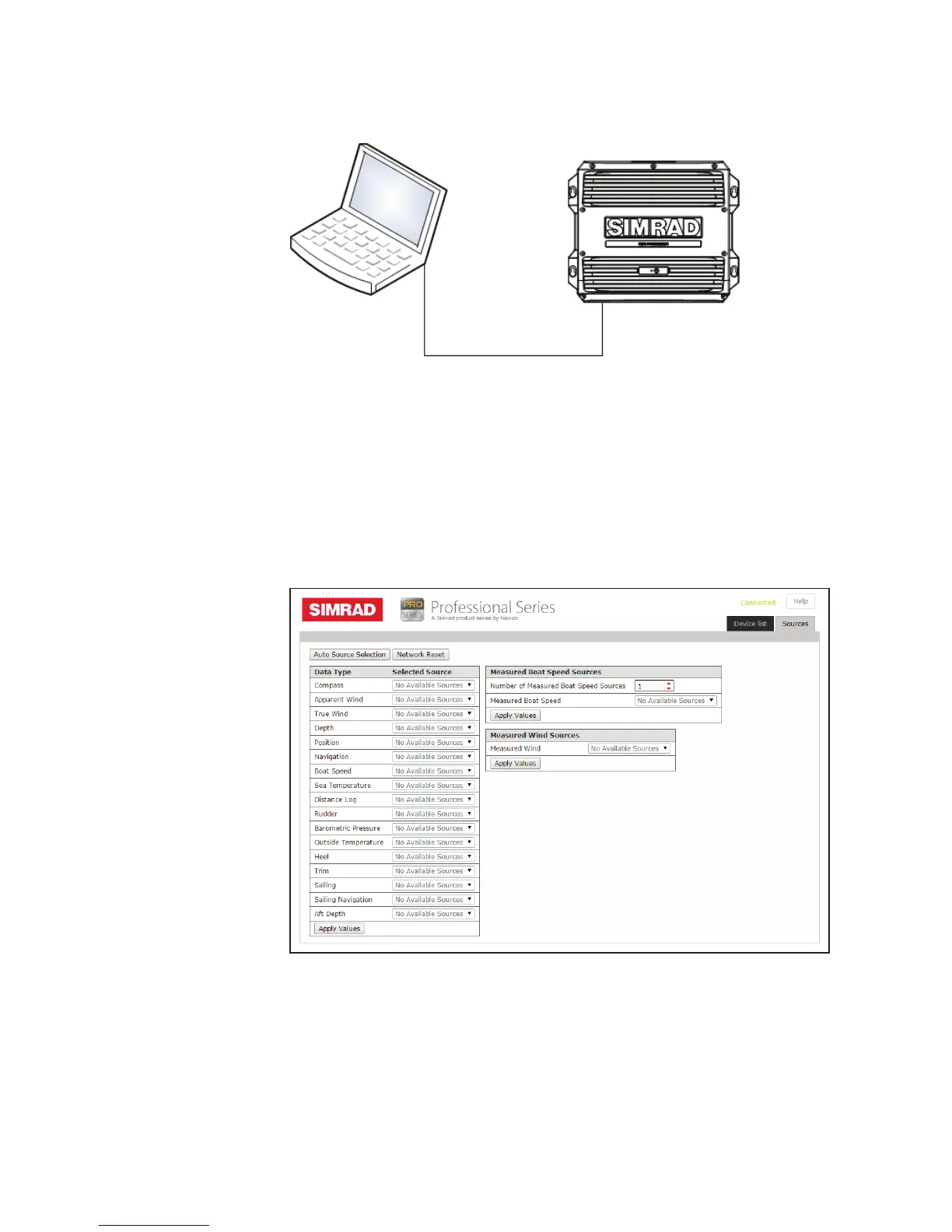

Connecting to the web interface
Connect your PC directly to the E5000 via an ethernet cable.
1. Connect the PC to the E5000 via the ethernet port
2. Open web browser on the connected computer or device
3. Find the IP address for the ECDIS system by accessing the Menu, then Settings, followed by
System, and System information menu
4. Type the IP address into the web browser address bar
¼ Note: Ensure that your computer’s network settings are set so you can access this IP address
5. Once connected correctly the Simrad web interface home screen will appear
¼ Note: It will say Connected in the top right-hand corner of the screen next to the help tab. If
it says Not Connected then check the E5000 power and connections, and network activity
light on both devices.
¼ Note: A notification pop-up appears if your browser does not provide websocket support.
¼ Note: Connection via a network is possible, but to reduce potential issues, a direct connec-
tion is preferred.
