Simrad EK80 User Manual

6
403825/C

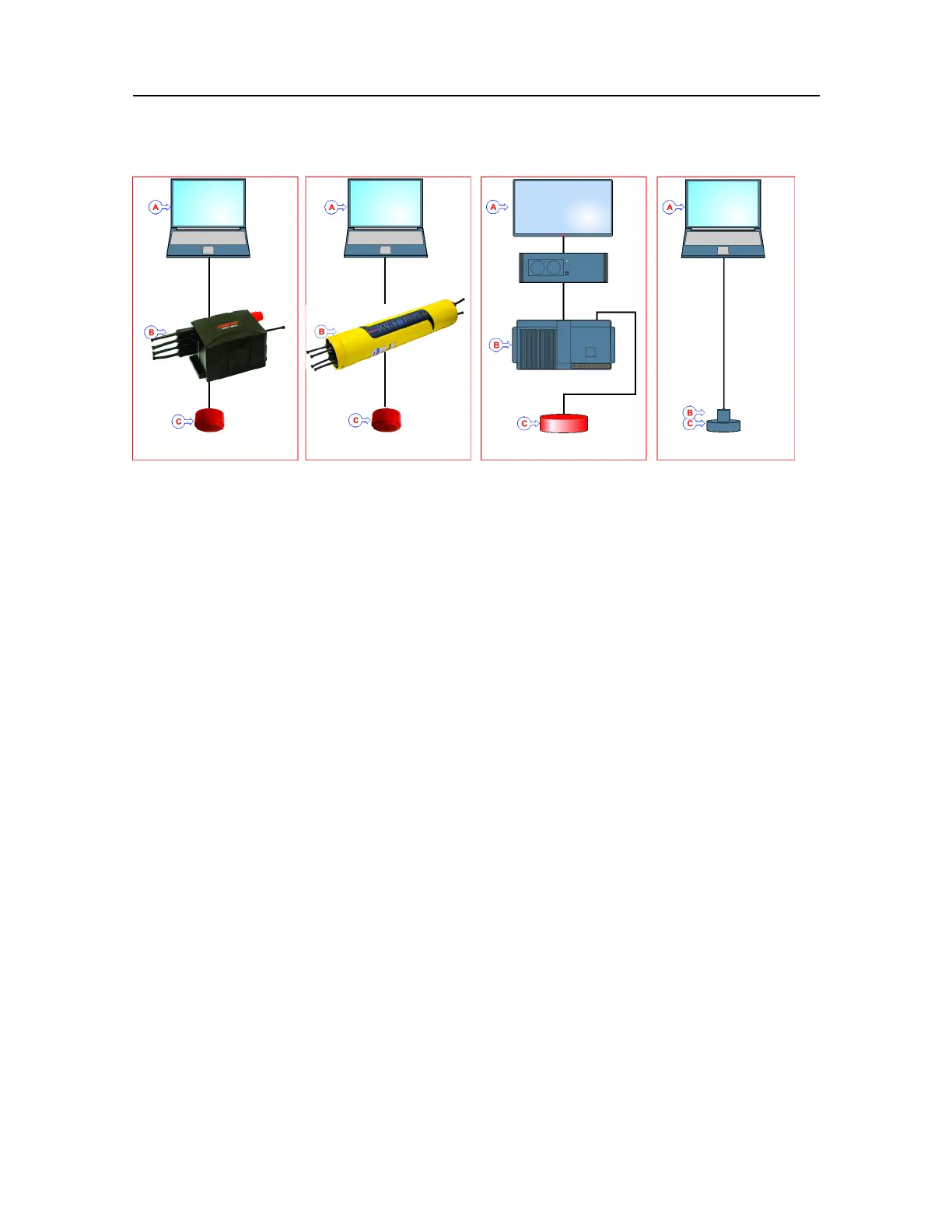

ADisplay+ProcessorUnit
BTransceiverofthefollowingtypes:WBTmini,WBTTube,WBTandEC150–3C.
CTransducers
Transceiverunit
Thetransceiverunitisprovidedtotransmitandreceiveacousticenergythroughthewater,
usinganappropriatetransducer.Thistransmissionandreceptionarecommonlyreferred
toasaping.Aftereachtransmission,thetransceiverreceivestheechoesfromthetargets
inthewaterand/ortheseabed.Theseechoesarelteredandampliedandthenconverted
intodigitalformat.
Transducers
TheEK80Scienticwidebandechosoundercanbeusedwithalloursingle-beamand
split-beamtransducers.Inmostcases,onesplit-beamtransducerisusedforeachtransceiver.
Severaloperationalfrequenciesareavailable.Consultourwebsiteforacompletedesription.
•https://www.kongsberg.com/maritime/products/commercial-sheries/td
TheEK80canbeexpandedbyaddingdedicatedhardwareforacousticDopplercurrent
proler(ADCP)measurements.
ThismanualgivesabriefinstructiononhowtoinstalltheEK80hardwareandhowyou
usetheEK80software.TheEK80softwarecanbeinstalledandusedwithoutaccesstoany
hardware.Replayingrecordedlesisagreatwaytofamiliarizeoneselfwiththesoftware.
Youcanevenperformafullcalibrationbasedonpreviouslyrecordedles.
SimradEK80Quickstartguide
