Wiring Diagrams | HS80/HS80A/MX575C/MX575D User Manual
Wiring Diagrams

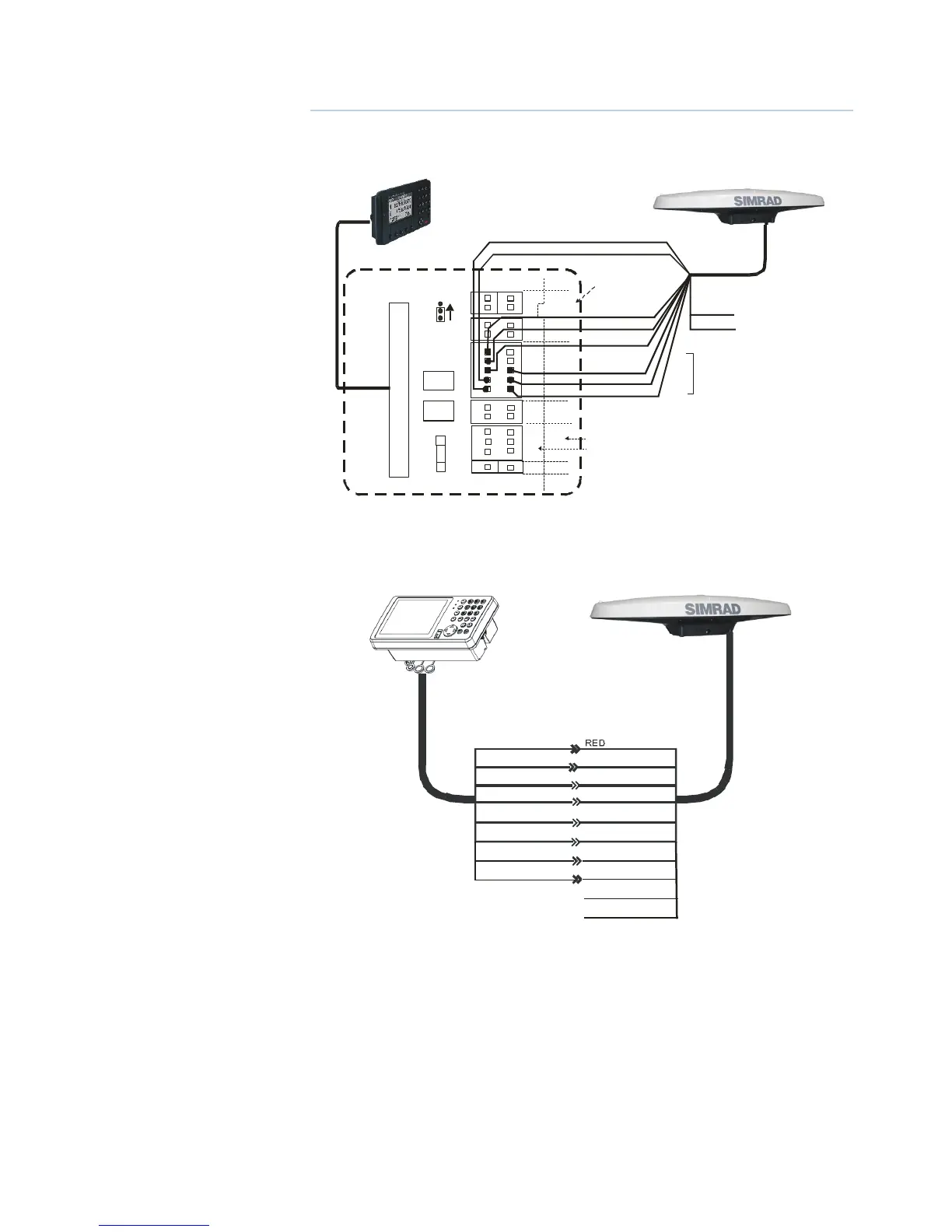

MX420 CDU to GPS compass interface diagram
RL1
RL2
RS232 enable
J1
UPPER LOWER
Rs232
PORT 2
Tx
Rx
GND
MX420/2 JUNCTION BOX
CABLE A
MX ANTENNA
PORT
PORT 1
DUAL CONTROL
EXT. ALARM
POWER FAIL
PWR INPUT
IN +
GND
U1
U2
U7
U4
U9
U5
U6
2 AMP
B IN
A IN
B OUT
A OUT
BRN
ORG
GRN
BLK
RED
GREY
PURPLE
YEL
WHT
BLU
B IN
A IN
B OUT
A OUT
NO
NC
C
NO
NC
C
IN -
12-32 VDC
POWER INPUT
1
18
MX420/2
HS80/HS80A
MX575C/MX575D
BLK (GND)
RED (12 VDC)
YEL
YEL/BLK
BLK/BRN
BRN
GRN
GRN/BLK
ORG*
ORG/BLK*
1PPS+
1 PPS-
MX510/MX512 to GPS compass interface diagram
RED (+12 VDC)
BLK (NEG)
BLK
GRN (NMEA3 RX+)
ORG (NMEA3 RX-)
BRN (NMEA3 TX+)
BLU (NMEA3 TX -)
YEL/BLK
YEL
BLK/BRN
BRN
MX510/MX512 CDU
HS80/HS80A
MX575C/MX575D
10-PIN CABLE ASSY.
P/N 3508 102 70150
(3-METERS)
WHT (BEACON IN +)
YEL (BEACON IN -)
GRN/BLK
GRN
*ORG (1 PPS+)
*ORG/BLK (1 PPS-)
6
