Simrad RS10 Operation and Installation Manual
This Simrad radio is designed to generate a digital maritime distress call to facilitate search and rescue.
To be eective as a safety device, this radio must be used only within the geographic range of a shore-
based VHF marine Channel 70 distress and safety watch system. The geographic range may vary but
under normal conditions is approximately 20 nautical miles.
7-2 Installation Options
There are two ways to install the radio. You can choose:
A deck or overhead mounted gimbal installation• . The reversible mounting gimbal is fixed to
a suitable site and the radio is placed into it. The radio can be removed for storage and the
viewing angle can be adjusted.
A• recessed installation. The radio is recessed into a cavity cut into a bulkhead. The radio fixture is
permanent and the viewing angle cannot be adjusted.
7-3 Location Requirements
Please check these before doing any cutting or drilling.
Whichever installation method you choose, ensure that the chosen location:
Is at least 3’ (1 m) from the antenna•
Allows easy connection to (at least) a 10 Amp fused 13.6 V DC electrical source and the antenna•
Is at least 1.5’ (45 cms) from the compass to avoid creating magnetic deviation of the compass •
during radio operation
Has a suitable space close by for installing the microphone bulkhead mount•
Provides easy access to the controls on the front panel •
Provides reasonable access to the wiring at the back of the radio•
Provides enough room to fix the DSC warning label•

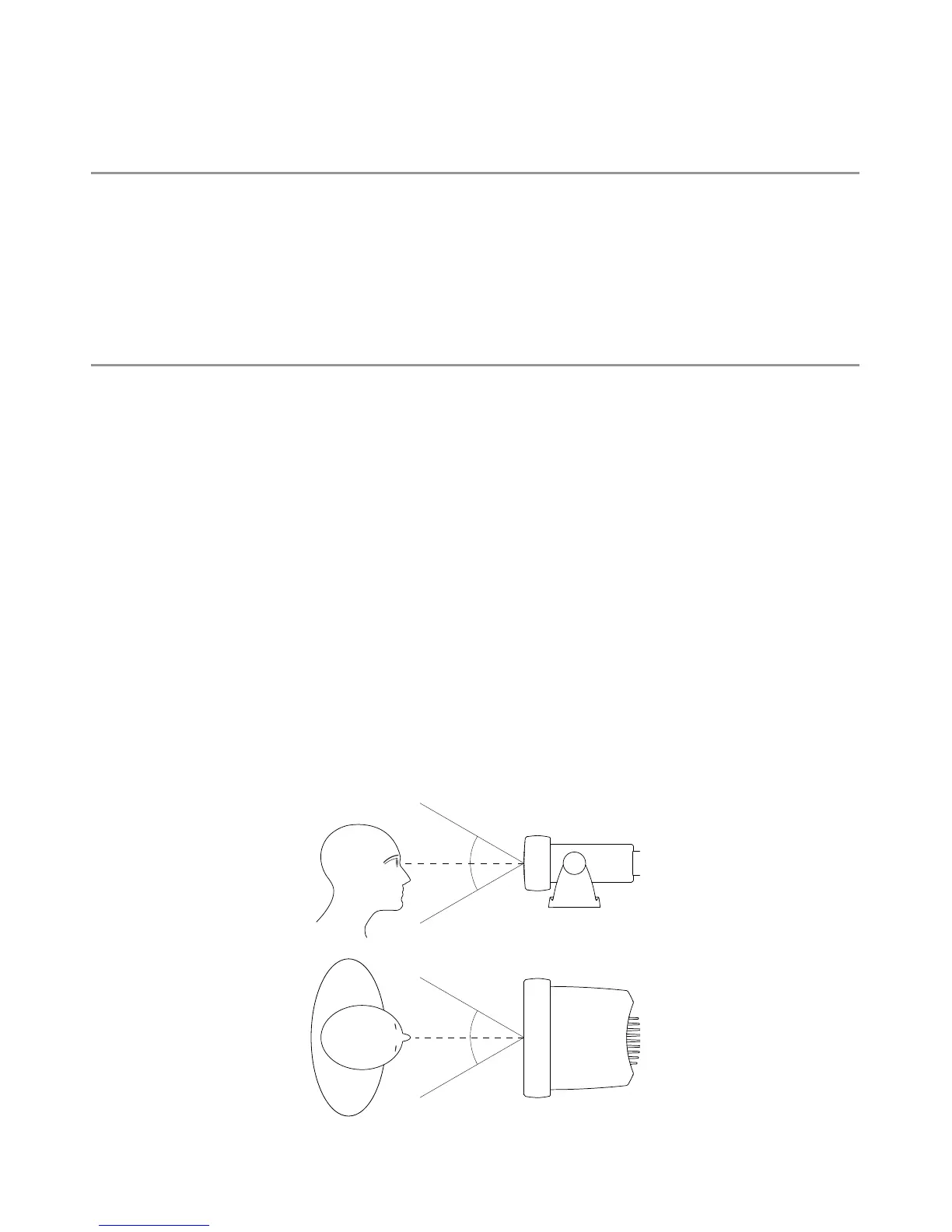

The VHF has a large LCD screen with an optimum viewing angle of approx. +/-20 deg. Ensure the chosen
location provides a suitable view of the display. Ideally, the user should be directly in front of the display
or no more than +/-20 deg from the front of the display.
Note: If unsure, temporarily power up the radio and check for a suitable location.
20˚
20˚
20˚
20˚
Side
Top
